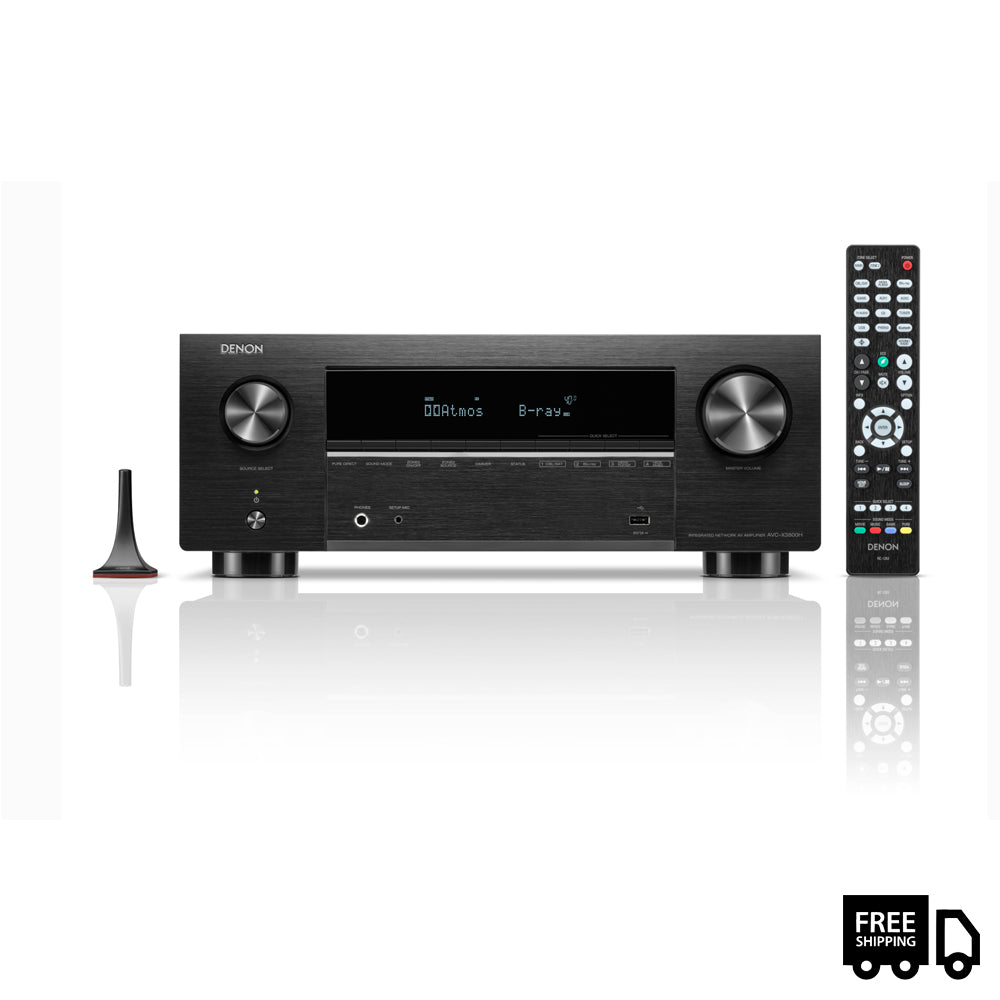

With 9 channels of amplification, up to 4 independent subwoofers, Dolby Atmos and DTS:X, plus IMAX Enhanced and Auro-3D, the AVC-X3800H envelops larger living spaces in theatre-quality sound. Enjoy amazing 8K video quality and with HEOS® Built-in, wirelessly stream and share online music between rooms.

High performance 9-channel amplifier
Discrete high-current amplifiers deliver up to 180W per channel - enough power to drive any speaker.

3D audio experience
Get enveloped in sound with Dolby Atmos®, DTS:X®, IMAX Enhanced and Auro-3D, along with Dolby Surround, DTS Neural:X and Auro-Matic upmixer to optimize legacy content.

Configuration flexibility
AVC-X3800H offers many setup options and flexibility to adjust your home theatre to meet your needs. Supports

Advanced 8K home theatre
8K video is supported on all six HDMI inputs and two of the three outputs. Enjoy easy video compatibility and great picture quality with HLG, HDR, Dolby Vision, HDR10+, and Dynamic HDR passthrough.

Technical Specification

• Multichannel Surround
  DTS HD Master, DTS:X, DTS:X Pro - Yes, Yes, No
  DTS Neo:X, DTS Neural:X - No, Yes
  DTS Virtual:X - Yes
  IMAX Enhanced - Yes
  Dolby TrueHD, Dolby Atmos, Dolby Atmos Height Virtualization, Dolby Atmos Music - Yes, Yes, Yes, Yes
  Dolby ProLogic Ilz, Dolby Surround - No, Yes
  Auro 3D - Yes
  360 Reality Audio / MPEG H - Yes, Yes
  Multichannel Stereo - Yes
  Max. Number of Processing (Pre-Amp) Channels - 11.4

• Sound Enhancements
  Discrete Power Amplifier - Yes
  Pure Direct - Yes
  Audyssey - MultEQ XT32
  Audyssey Dynamic EQ, Dynamic Volume - Yes, Yes
  Audyssey LFC - Yes
  Dirac Live Upgradability - Yes
  Compressed Audio Restorer - Yes

• Network
  Media Server - Yes
  HEOS Wireless Multi-Room Technology - Yes
  Alexa / Google Voice Assistant / Apple HomePod - Yes, Yes, Yes
  Lossy Formats: MP3, WMA, AAC - Yes, Yes, Yes
  Lossless Formats: FLAC, ALAC, WAV - Yes, Yes, Yes
  Lossless Formats: FLAC HD, WAV, ALAC (all 192kHz/24 bit) - Yes, Yes, Yes
  DSD Audio Streaming - Yes (2.8/5.6MHz)
  AirPlay 2 - Yes
  TuneIn - Yes
  Spotify Connect - Yes
  Roon Tested - Yes
  HEOS App Control - Yes
  Compatible with Remote APP for Smart Phones - Denon 2016 AVR Remote
  Ethernet Ports - Yes
  Wi-Fi - Yes
  Bluetooth - Yes

• HDMI
  HDMI Inputs: Back, Front - 6, No
  HDCP2.3 support - Yes
  HDMI Outputs: Main, Zone - 2, 1
  HDMI 2.1: 8K/60Hz AB, 4K/120Hz AB - Yes, Yes
  HDR, HLG, Dolby Vision, HDR10+, Dynamic HDR - Yes , Yes, Yes, Yes, Yes
  ALLM (Auto Low Latency Mode) Pass-through for gaming - Yes
  Variable Refresh Rate, Quick Frame Transport, Quick Media Switching - Yes, Yes, No
  3D Signal Pass-through - Yes
  8K Signal Pass-Through, Scaling, GUI Overlay - Yes, Yes, Yes
  DSD Audio Capability - Yes
  Audio Return Channel (ARC), Enhanced ARC - Yes, Yes
  Auto LipSync - Yes

• Multi-room CI
  Multi-Room Zones - 2
  Zone Audio Source: HDMI; Optical, Coax, Network, USB; Analog - Yes (2ch), Yes (2ch), Yes, Yes
  Zone Audio Output: Speaker, Pre-Out - Yes, Yes
  Zone HDMI Output from HDMI Source - Yes
  IP Control, RS232 Control, Web Control, App Control - Yes, Yes /Yes, Yes
  Remote In / Out - Yes, Yes
  DC Trigger Output - 1
  HDMI Diagnostics - Yes

• Others
  Auto Speaker Setup by Microphone - Audyssey MultEQ XT32 / Dirac Live (upgrade)
  Front Display - 1-Line FLD
  GUI Languages - 3
  Setup Assistent - Yes
  Quick Select Plus, Quick Select - Yes, No
  Variable Crossover - Yes
  Optimized Bass Redirection - Yes
  Bass Sync - Yes
  ECO Mode - Yes
  Auto Power Off - Yes
  Sleep Timer - Yes

• Inputs/Outputs
  HDMI In, Out - 6, 3
  Multi-Room Video Out: Video, HDMI - No, Yes
  Analog In, Out - 6 / No
  Phono (MM) In - Yes
  Digital In: Optical, Coaxial - 2 / 2
  Multi-Room Out: Analog, Digital - 1 / No
  Multichannel Preout - Yes (11.4)
  Subwoofer Out - 4 (independent)
  Speaker Terminal: Gold-Plated Screw, Regular Screw - No, Yes
  Number of Speaker Terminals - 11
  Speaker A / B - Assignable
  Bi-amp Drive - Assignable
  Multi-Room Speaker Terminal - Assignable
  Front Inputs: Audio, Composite, Digital (Opt), HDMI, USB - No, No, No, No, Yes
  USB Audio, Made for iPod, Made for iPhone - Yes, No, No
  AM/FM Tuner - No

• Specifications
  Number of Power Amps - 9
  Power Output (8 ohm, 20 Hz - 20 kHz, 0.08% 2ch Drive) - 105W
  Power Output (6 ohm, 1 kHz, 0.7% 2ch Drive) - 135W
  Power Output (6 ohm, 1 kHz, 10% 1ch Drive) - 180W

• General
  System Remote Control - RC-1253
  Pre-Programmed, Learnable, LCD Display - No, No, No
  Power Consumption in W - 660W
  Power Consumption No-Sound (ECO On / Off) in W - 60W/100W
  Standby Consumption in W - 0.1
  CEC Standby Consumption in W - 0.5
  Network Standby Consumption in W - Less than 2.0
  Maximum Dimensions - 434 x 389 x 167
  Antenna:Horizontal:(W x D x H) in mm - ( 434 x 389 x 236 )
  ( Antenna:Vertical :(W x D x H) in mm) - 【 434 x 379x 167 】
  Weight in kg - 12.5
  Carton Weight (inc. product) in kg - 15.1
