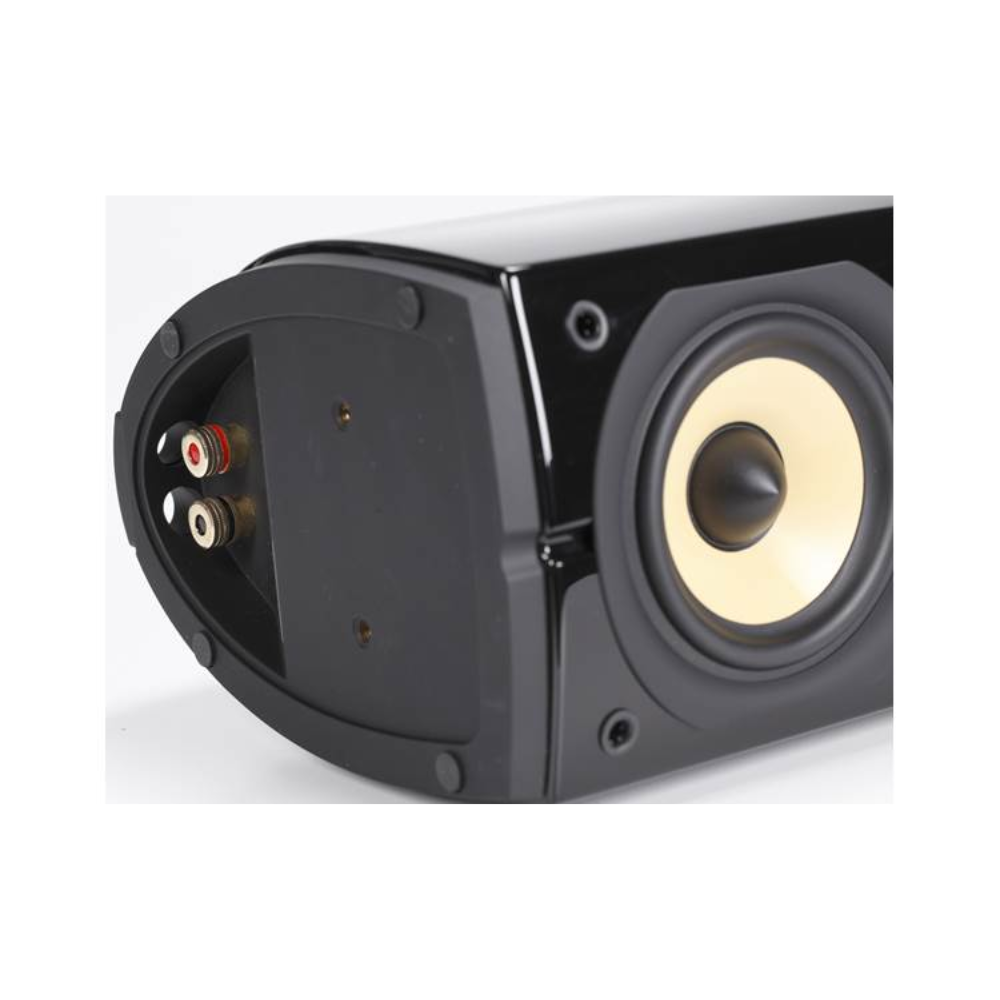

PSB Imagine Mini [Black Ash] [Amp Needed]

Small speaker, big sound

The Imagine Mini is the smallest member of the ultra-stylish Imagine Series of speakers, but it should not be underestimated. The deceptively small Imagine Mini makes a big statement in an already impressive range of award-winning audiophile speakers. With its high performance and compact size, the Mini is as versatile as it is attractive. With the Imagine Mini, you can expect to hear the kind of impressive sound that PSB’s larger Imagine series speakers are known for.

Technical Specifications

Weight
3 kg

Design Type
Bass Reflex

Color
Black Ash

Frequency Response
On Axis @ 0° ±3dB – 55-23,000Hz On Axis @ 0° ±1 1/2dB – 65-20,000Hz Off Axis @ 30° ±1 1/2dB – 65-10,000Hz LF Cutoff -10dB – 50Hz

Sensitivity
Anechoic Chamber – 85dB Listening Room – 87dB

Impedance
Nominal – 8 Ohms Minimum – 4 Ohms

Input Power
Recommended – 10 – 80 Watts Program – 60 Watts

Drivers
Tweeter (Nominal) 1” (25mm) Titanium Dome with Ferrofluid Neodymium Magnet Woofer (Nominal) 4” (102mm) Clay/Ceramic reinforced Polypropylene Cone Rubber Surround

Crossover
2,200Hz, LR4

Dimensions (W x H x D)
5 3/4 x 9 1/4 x 8 3/8” * 143 x 234 x 212mm
