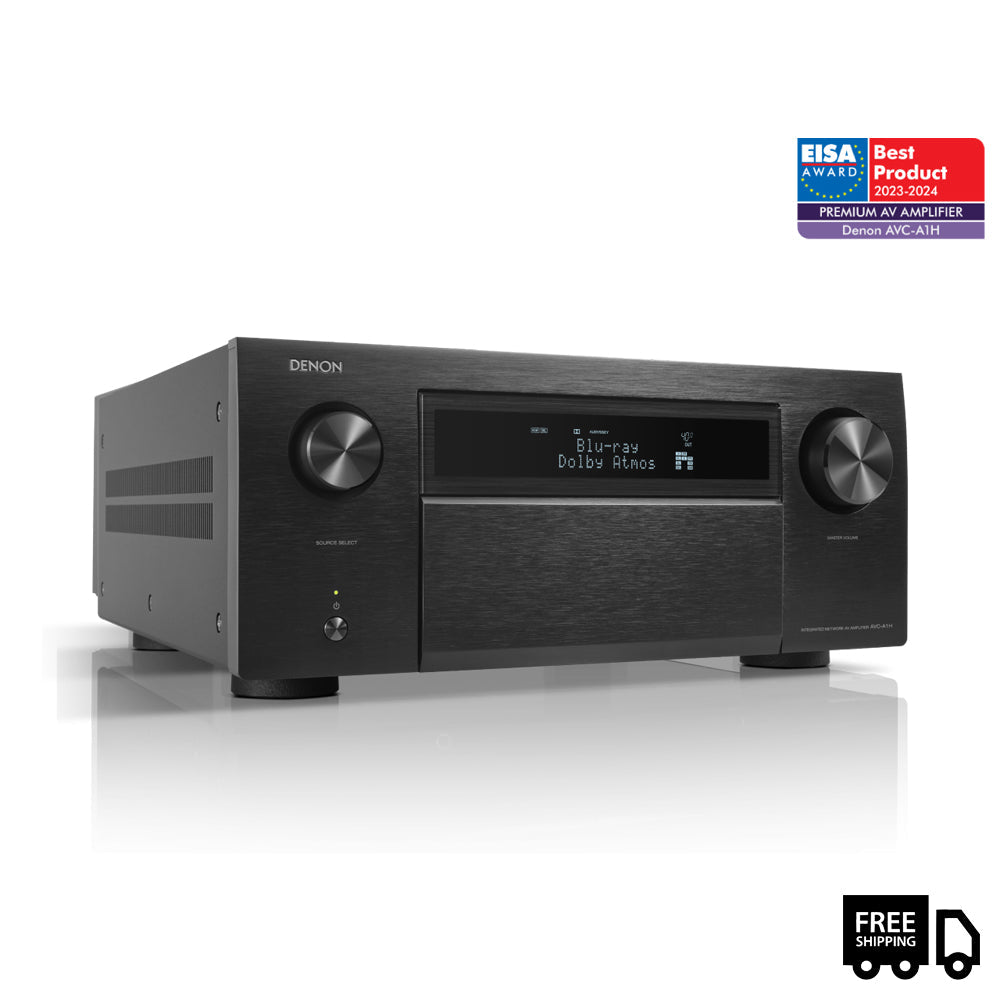

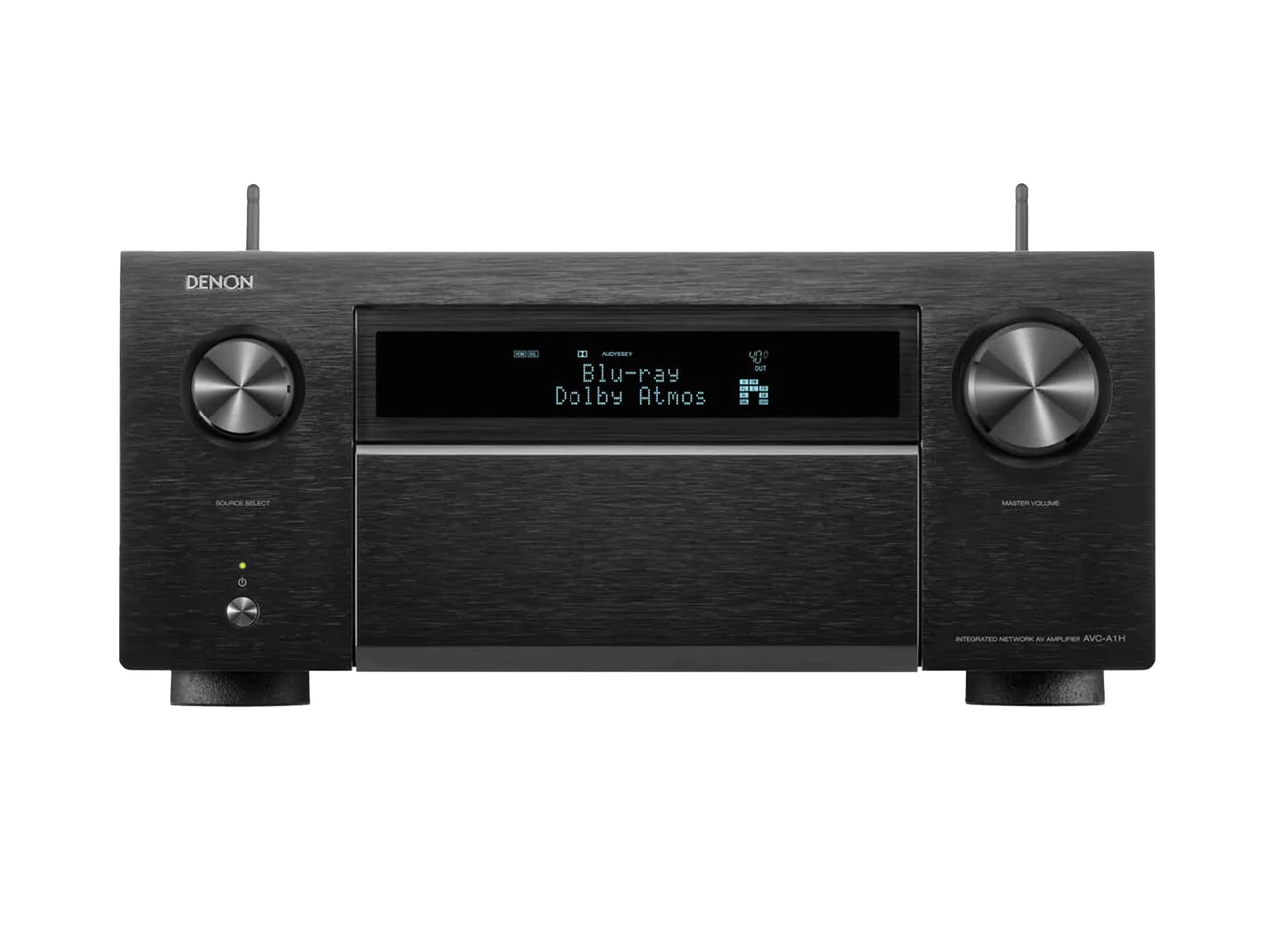

AVC-A1H

15.4 Ch. 210W 8K AV Amplifier with HEOS® Built-in

With 15 channels of amplification, our most powerful transformer, carefully selected parts, and hefty, high-rigidity construction, the AVC-A1H supports up to 9.4.6 configuration and delivers a professional theatre experience in your home cinema. Designed and manufactured at Denon facilities in Japan.

15.4 channels
210 watts per channel
8K Ultra HD
3D Audio
HEOS Built-in
7 HDMI inputs

The world’s first 15-channel home cinema amplifier
With 15.4 output channels, the Denon AVC-A1H has more channels and configuration options than any other AV amp on the market. Able to do full justice to Dolby Atmos and DTS:X signals, right up to Dolby Atmos 9.4.6, it has the capability to do justice to the largest home cinemas. For enveloping sound, there’s no better choice.

Power at its heart
Featuring the largest power transformer that Denon have ever used, plus uprated capacitors, this Denon AV amp has the power to match its processing. With a mighty 150 watts per channel it has the dynamic ability to keep you on the edge of your seat during the most tense, cinematic moments. The effortless power also lends itself to all music genres, including bass heavy dance, rock and Classical music.

Control to match the power
This Denon is about much more than sheer power, it’s about precision and control, too. The high current, premium transformer delivers its effortless power to mono block amplifiers. These type of amps split the power between right and left channels, giving enhanced detail and an even more spacious and natural sound. Other engineering enhancements include cast iron feet and chassis reinforcements for the most effective anti-vibration measures.

Connect up to four subwoofers for balanced bass around the room
For the best-balanced bass, the AVC-A1H has four passive subwoofer outputs. This lets you place a subwoofer in each corner of the room, giving a smooth, even bass response. With four bass channels, you can also use smaller subwoofers. This gives you a tighter, punchier bass whilst not missing any bass weight and depth.

Wide range of immersive 3D sound formats
Making the most of its 15-channel output, the Denon AVC-A1H has the widest range of surround sound formats. Compatible formats include Dolby Atmos, Dolby Atmos Height Virtualization Technology, DTS:X, DTS:X Pro, DTS Virtual:X, DTS Neural X, IMAX Enhanced, Auro-3D and 360 Reality Audio. Simply put, if the format’s out there, this Denon more than likely has it covered.

Fully equipped for 8K
The AVC-A1H is equipped for an 8K future. With no fewer than seven HDMI inputs, all of which are 8K and 4K/120Hz ready, you’ll have all the connectivity you’ll ever need. Two of the three outputs are 8K compatible, too. They support 8K pass-through, 4K/120Hz and 8K upscaling of 4K content, as well, ensuring you get the very best picture from legacy sources.

Brilliant for gamers
The enhanced HDMI interface makes this Denon AV amp the perfect choice for gaming. All HDMI inputs support 4K/120Hz and VRR (Variable Refresh Rate) for the best resolution and clarity. Quick Frame Transport (QFT) and Auto Low Latency Mode (ALLM) help eliminate lag and frame tearing, giving you a smoother, more responsive gaming experience.

Wide-ranging HDR support
The AVC-A1H also supports a wide range of High Dynamic Range video formats. These include Dolby Vision, HDR10 and HLG. It also supports HDR10+, which enhances picture realism by sending dynamic Meta data to your TV, as well as Dynamic HDR. In short, whatever the format used by the film, game or stream, the Denon supports it.

Unique Dirac Live set-up – coming soon*
For the very best sound in your room, Denon is set to offer powerful room correcting technology from Dirac Research. This uses a microphone and dedicated software to take multiple readings around your room and feed the information back to the amplifier for a completely bespoke response (professional set-up recommended).

*Due later in 2023. Requires additional payment.

Audyssey MultEQ XT32 for simple room set-up
Featuring Audyssey's high-end MultEQ XT32 technology, the AVC-A1H adapts itself to your room's acoustics. The XT32 version of this automatic measuring and set-up device features include Audyssey Dynamic Volume, Dynamic EQ, LFC and SubEQ HT for total control. If you want to take this even further, purchase the MultEQ Editor App (at additional cost) and you've access to advanced user settings.

HEOS built-in - for the finest multi-room audio
HEOS multi-room music systems connect together by dual-band Wi-Fi, making them easy to set up with your existing home network. Up to 32 HEOS units can be set up at one time, ensuring even the largest of homes are covered for multi-room music. With HEOS already built-in, the AVC-A1H is ready to go as a single 'zone' without any further adaptors.

Control it all with the HEOS app
Once you've set up your HEOS speaker system, you can stream music effortlessly via the dedicated HEOS app. Available for Apple iOS and Android, the app not only lets you stream your stored music but also Internet radio services and popular streaming services such as Spotify, Tidal, Napster and Deezer.

Use with your choice of voice assistant
Compatible with Siri, Alexa and Google Assistant, the AVC-A1H works with your voice assistant of choice. For Alexa or Google Assistant control, simply download the HEOS app. Pair your Echo device if you’re using Alexa and you’re good to go – adjust the volume, skip to the next track and switch inputs simply by asking Alexa or Google. For control via Siri, simply link the amp via Apple AirPlay 2 and enjoy voice interaction and AirPlay 2 multi-room support.

Transform your home cinema system to the ultimate level, with the Denon AVC-A1H.

Technical Specifications :

Multichannel Surround
DTS HD Master, DTS:X, DTS:X Pro	Yes, Yes, Yes
DTS Neo:X, DTS Neural:X	No, Yes (15ch)
DTS Virtual:X	Yes
IMAX Enhanced	Yes
Dolby TrueHD, Dolby Atmos, Dolby Atmos Height Virtualization, Dolby Atmos Music	Yes, Yes, Yes, Yes
Dolby ProLogic Ilz, Dolby Surround	No, Yes
Auro 3D	Yes
360 Reality Audio / MPEG H	Yes, Yes
Multichannel Stereo	Yes
Max. Number of Processing (Pre-Amp) Channels	15.4
Sound Enhancements
Mono Block Power Amp Construction	Yes (L/R separated)
Discrete Power Amplifier	Yes
D.D.S.C. HD Digital	Yes (32 bit)
Pure Direct	Yes
Gold Plated RCA Terminals	Yes
Clock Jitter Reducer	Yes
Alpha Processing	AL32 Processing Multichannel
Audyssey	MultEQ XT32
Audyssey Dynamic EQ, Dynamic Volume	Yes, Yes
Audyssey LFC	Yes
Dirac Live Upgradability	Yes
Compressed Audio Restorer	Yes
Network
Media Server	Yes
HEOS Wireless Multi-Room Technology	Yes
Alexa / Google Voice Assistant / Apple HomePod	Yes, Yes, Yes
Lossy Formats: MP3, WMA, AAC	Yes, Yes, Yes
Lossless Formats: FLAC, ALAC, WAV	Yes, Yes, Yes
Lossless Formats: FLAC HD, WAV, ALAC (all 192kHz/24 bit)	Yes, Yes, Yes
DSD Audio Streaming	Yes (2.8/5.6MHz)
AirPlay 2	Yes
TuneIn	Yes
Spotify Connect	Yes
Roon Tested	Yes
HEOS App Control	Yes
Compatible with Remote APP for Smart Phones	Denon 2016 AVR Remote
Ethernet Ports	Yes
Wi-Fi	Yes
Bluetooth	Yes
HDMI
HDMI Inputs: Back, Front	7, No
HDCP2.3 support	Yes
HDMI Outputs: Main, Zone	2, 1
HDMI 2.1: 8K/60Hz AB, 4K/120Hz AB	Yes, Yes
HDR, HLG, Dolby Vision, HDR10+, Dynamic HDR	Yes , Yes, Yes, Yes, Yes
ALLM (Auto Low Latency Mode) Pass-through for gaming	Yes
Variable Refresh Rate, Quick Flame Transport, Quick Media Switching	Yes, Yes, No
3D Signal Pass-through	Yes
8K Signal Pass-Through, Scaling, GUI Overlay	Yes, Yes, Yes
DSD Audio Capability	Yes
Audio Return Channel (ARC), Enhanced ARC	Yes, Yes
Auto LipSync	Yes
Multi-room CI
Multi-Room Zones	3
Zone Audio Source: HDMI; Optical, Coax, Network, USB; Analogue	Yes (2ch), Yes (2ch), Yes, Yes
Zone Audio Output: Speaker, Pre-Out	Yes, Yes
Zone HDMI Output from HDMI Source	Yes
IP Control, RS232 Control, Web Control, App Control	Yes, Yes, Yes, Yes
Remote In / Out	Yes, Yes
DC Trigger Output	2
HDMI Diagnostics	Yes
Others
Auto Speaker Setup by Microphone	Audyssey MultEQ XT32 Dirac Live (upgrade)
Front Display	2-Line FLD
GUI Languages	3
Setup Assistant	Yes
Quick Select Plus, Quick Select	Yes, No
Variable Crossover	Yes
Optimised Bass Redirection	Yes
Bass Sync	Yes
ECO Mode	Yes
Auto Power Off	Yes
Sleep Timer	Yes
Inputs/Outputs
HDMI In, Out	7, 3
Multi-Room Video Out: Video, HDMI	No, Yes
Analogue In, Out	5 (1x XLR), No
Phono (MM) In	Yes
Digital In: Optical, Coaxial	2 / 2
Multi-Room Out: Analogue, Digital	2 / No
Multichannel Preout	Yes (17.4)
Subwoofer Out	4 (independent)
Speaker Terminal: Gold-Plated Screw, Regular Screw	Yes, No
Number of Speaker Terminals	17
Speaker A / B	Assignable
Bi-amp Drive	Assignable
Multi-Room Speaker Terminal	Assignable
Front Inputs: Audio, Composite, Digital (Opt), HDMI, USB	No, No, No, No, Yes
USB Audio, Made for iPod, Made for iPhone	Yes, No, No
AM/FM Tuner	Yes
Specifications
Number of Power Amps	15
Power Output (8 ohm, 20 Hz - 20 kHz, 0.05% 2ch Drive)	150W
Power Output (6 ohm, 1 kHz, 0.7% 2ch Drive)	190W
Power Output (6 ohm, 1 kHz, 10% 1ch Drive)	210W
General
Metal Front Panel	Yes
System Remote Control	RC-1250
Pre-Programmed, Learnable, LCD Display	Yes, Yes, Yes
Power Consumption in W	1100
Power Consumption No-Sound (ECO On / Off) in W	80 W / 160 W
Standby Consumption in W	0.1
CEC Standby Consumption in W	0.5
Network Standby Consumption in W	Less than 2.0
Maximum Dimensions (W x D x H) in mm	Antenna - Horizontal: 434 x 498 x 195 Antenna - Vertical: 434 x 498 x 259 w/o Antenna: 434 x 493 x 195
Weight in kg	32.0
Carton Weight (inc. product) in kg	38.0
