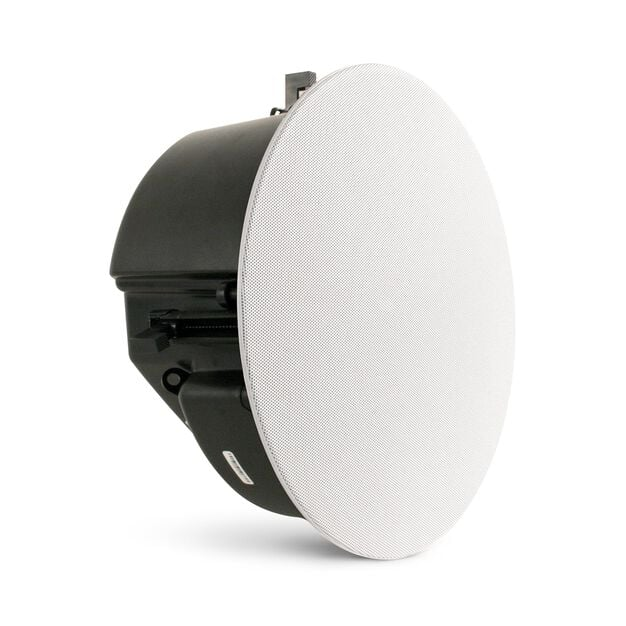

C763L Specialty In-Ceiling Loudspeaker [Install Required]

Description

Revel in-ceiling loudspeakers draw upon the same research, resources, and unique perspectives that put all our loudspeakers in a class by themselves. Each model offers a standard-setting low sonic coloration and freedom from distortion over a wide dynamic range.

Long-throw woofers with cast frames and rubber surrounds provide high output with low distortion
1-inch (25mm) angle-adjustable, aluminum-dome tweeter with an integrated waveguide provides optimized response both on and off axis
High-order crossover network with premium-quality components delivers extraordinarily accurate timbre reproduction
Boundary compensation switch lets you adjust the speaker to maintain tonal accuracy when the speaker is placed near a wall
Three-position tweeter level control lets you adjust for optimum response in a variety of acoustical environments, or for using the speakers without grilles

Technical Specs

Height
Square grille finished height 12.5"" (31.8 cm)

Width
Square grille finished width 12.5"" (31.8 cm)

Depth
Mounting depth 5.7"" (14.5 cm)

Weight
4 lb (1.8 kg) / Shipping weight 5.2 lb (2.4 kg)

Included Accessories
Includes both round and square zero-bezel magnetic grilles • Round grille finished dimension (dia.) 12.5"" (31.8 cm)

High Frequency Driver Components
1"" aluminum high-output tweeter with waveguide

Low Frequency Extension
High Frequency Extension 3-position HF level control / Low Frequency Extension LF boundary compensation

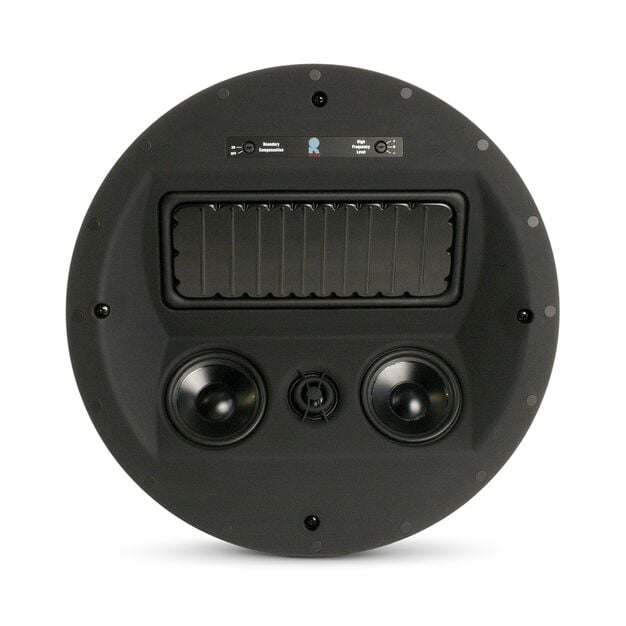

Low Frequency Driver Components
7.8"" x 3.4"" Micro-Ceramic Composite (MCC) Cone, Diaphragm Flat-Panel Woofer

Mid-Frequency Driver Components
Two 3.5"" micro-ceramic composite (MCC) cone, cast-aluminum frame high-output midranges

Mounting
C-2 fastening mechanism • Compatible with wall material thickness range 0.5"" – 2.0"" (1.3 cm – 5.0 cm)

Recommended Amplifier Power
10 - 200 Watts RMS
