A new vision for sound
A soundbar that completely flips the script. Make every movie an unmissable cinematic event.
Rule-defying, heart-racing soundbar

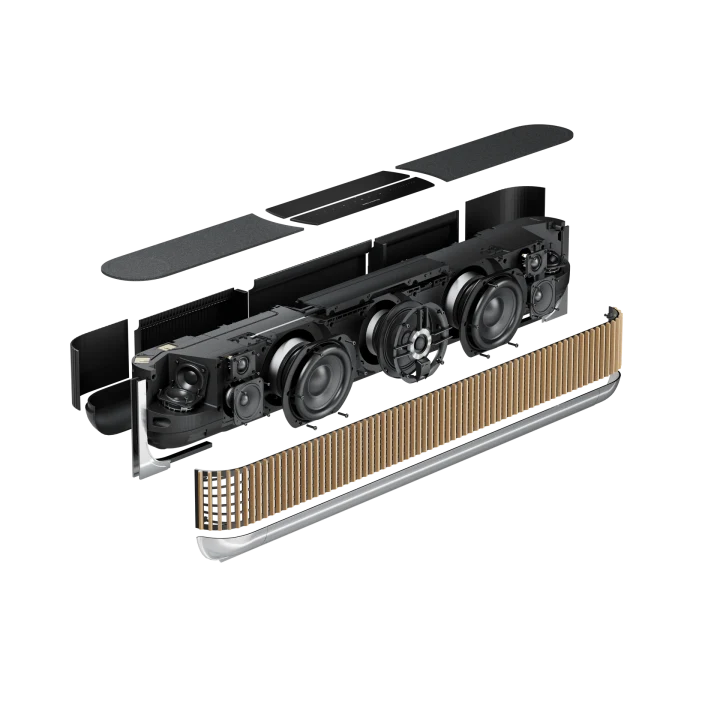

Four patent-pending acoustic innovations in one sleek soundbar envelop you in sound from every angle. Made to fit any TV, and last for generations. Choose Beosound Theatre as a standalone soundbar, or combine it with a 55”, 65” or 77” LG screen for a truly cinematic experience. Prices vary depending on size.
Technical Specifications :
SOUND
-
Recommended Room Size - 15 - 60 m²
160 - 600 ft²
-
Speaker Configuration - 12 speaker drivers
2 x 6.5" woofer custom made
1 x 5.25" midrange + 1 x 1"" tweeter for custom made coaxial centre speaker
2 x 3" midrange
4 x 2.5" full range
2 x 1" tweeter
-
Amplifier - 12 power amplifiers
2 x 100 watts amplifiers for bass outputs
10 x 60 watts amplifiers for center channel,left/right/upfiring/side firing outputs
-
Frequency Range - 28 Hz - 23,000 Hz
-
Maximum Sound Pressure Level @1m - 112 dB SPL
-
Bass Capability - 94 dB SPL
-
Advanced Sound Features - Integrated 7.1.4 Dolby Atmos decoding and custom-tuned post-processing with proprietary True Image up- / downmixing algorithm
Dolby Digital TrueHD
Dolby Digital plus 7.1 (including DD5.1)
Dolby Atmos, Dolby MAT
-
Advanced Bass management system - Adaptive Bass Linearisation (ABL) Thermal protection
-
Customizable Sound EQ - 5 customisable listening modes through Bang & Olufsen App
-
RoomSense - Automated speaker setup with external microphone
Speaker level and distance
Speaker role
Speaker position compensation from 30 – 10.000Hz
Room resonance compensation from 30 – 200Hz
DESIGN
-
Designer - Noto GmbH
-
Materials - Oak Wood, Aluminium, Polymer, Knitted Fabric
-
Weight - Soundbar incl table or wall bracket 18kg
-
Motorised floor stand incl LG G2 TV - 55" 69 kg
65" 73 kg
77" 87 kg
-
Motorised wall bracket incl LG G2 TV - 55" 62 kg
65" 68 kg
-
Table stand incl LG G2 TV - 55" 49 kg
65" 53 kg
77" 66 kg
-
Dimensions - Soundbar table stand 19.7 h x 15.7 d x 122.2 w cm
Soundbar wall bracket, close position 18.9 h x 15.8 d x 122.2 w cm
-
Motorised floor stand* - 55" 118.9 h x 52.8 d x 122.2 w cm
65" 131.3 h x 52.8 d x 144.1 w cm
77" 147.4 h x 52.8 d x 171.2 w cm
-
Motorised wall bracket* - 55" 95.9 h x 19.2 d x 122.2 w cm
65" 108.3 h x 19.2 d x 144.1 w cm
-
Table stand (free standing/close to wall)* - 55" 91.9 h x 35.9/26.5 d x 122.2 w cm
65" 104.3 h x 35.9/26.5 d x 144.1 w cm
77" 120.5 h x 35.9/26.5 d x 171.2 w cm
*TV screen height and width may vary depending on TV model
-
Placement options - Soundbar:
table stand
wall bracket
-
Soundbar incl. TV screen: Motorised floor stand +/- 35° rotation
Motorised wall bracket left or right hinged with 60° max opening (55" or 65" screen)
Table stand
POWER
-
Power consumption - Typical 120 watts
-
Power supply - Power Cable
CONNECTIVITY
-
Bluetooth Version - 5.1 (BLE and EDR)
-
WiFi - Dual band WLAN 2.4 / 5GHz
IEEE 802.11 b/g/a/n/ac
-
Streaming services - Apple AirPlay 2
Bluetooth audio streaming
DLNA
Chromecast built-in
Spotify Connect
Deezer
QPlay
Google Cast groups
BeoLink Multiroom
-
Integrated music services - Bang & Olufsen Radio
-
Inputs and Outputs - 3 x HDMI input with CEC input
1 x HDMI eARC with passthrough 4K 120FPS / 8K 60FPS / 40Gbit
-
Ethernet switch with 4 x 1Gbit ports - One port assigned for LG OLED TV connection for integrated control via Beoremote One and Bang & Olufsen App
1 x 3.5mm jack slider for microphone mute
-
Speaker outputs - 8 x Wireless Powerlink
8 x Powerlink
-
Remote controls - Integrated system control, including LG OLED TV:
Beoremote One BT
Bang & Olufsen App
-
Music streaming - Beoremote Halo
-
Voice Assistant - Via external Google Assistant device
