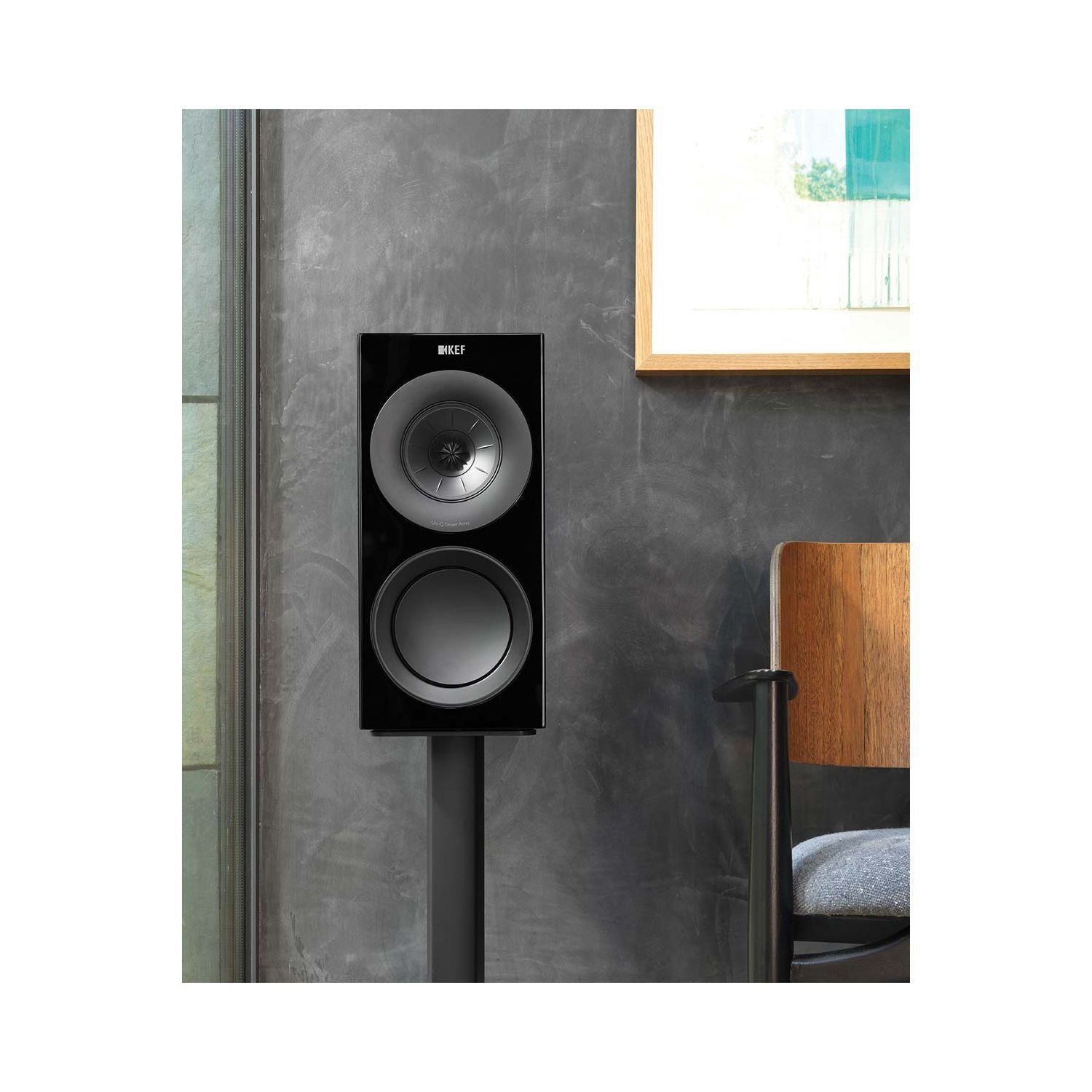

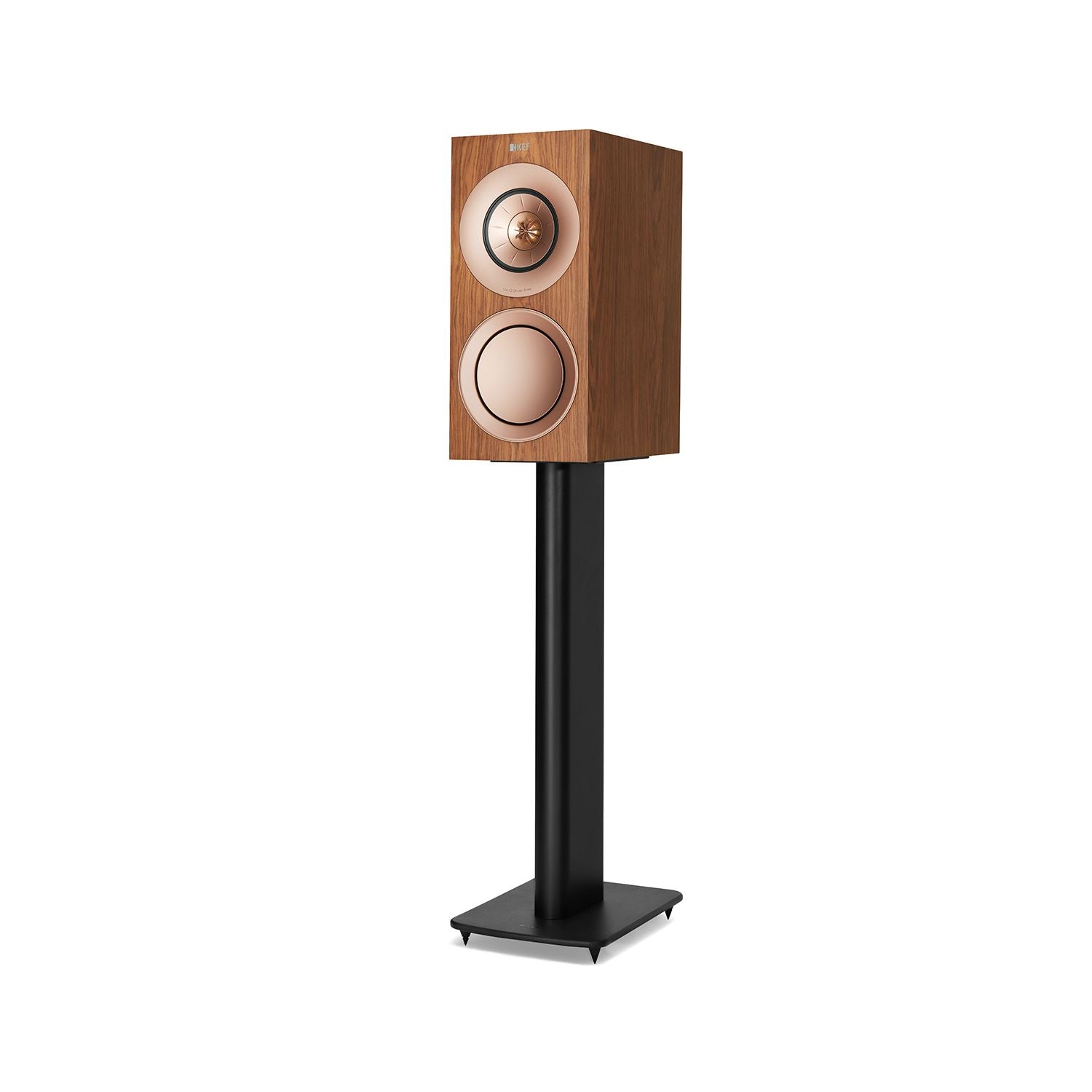

The R3 stand mount shares the same drivers as the range topping R11 in a full range designe that defies expectations.

A true 3-way speaker the R3 has a powerful 165mm (6.5 in.) bass driver and a 125mm (5 in.) midrange driver with 25mm (1 in.) aluminium dome tweeter Uni-Q array that pushes performance to new extremes.

Technical Specification

• Weight
  13.5 kg (29.8 lbs.)
• Dimension (H x W x D)
  422.2 x 199.6 x 335.5 mm (16.6 x 7.9 x 13.2 in.) with terminal*
• Dimension (H x W x D)
  422 x 199.6 x 312 Cabinet only
• Design
  Three-way bass reflex
• Frequency Range
  38Hz-50kHz (-6dB)
• Typical In-Room Bass Response
  30Hz (-6dB)
• Frequency Response
  58Hz-28kHz (±3dB)
• Harmonic Distortion
  <0.3% 130Hz-20kHz (90dB, 1m)
• Maximum Output
  110dB
• Amplifier Power
  15-180W
• Nominal Impedance
  8Ohms (min.3.2Ohms)
• Drive Units
  Uni-Q Driver Array:
  HF: 25mm (1in.) vented aluminium dome
  MF: 125mm (5in.) aluminium cone
  Bass Driver:
  LF: 165mm (6.5in.) hybrid aluminium
• Crossover Frequencies
  400Hz, 2.9kHz
