Enhanced Brightness
3,100 LED Lumens for brilliant images anytime
Maintenance-Free
30,000 hours lifespan for endless fun
Eco-Friendly
Mercury-free that commits to a greener and safer future
Energy-Saving
Less power consumption with ams OSRAM's Ostar Projection Power
Vibrant Colors
125% Rec.709 wide color gamut
True-to-Life Colors,
Fill You with Wonder
True-to-life colors offered by ViewSonic’s proprietary Cinema SuperColor+™ Technology with 125% Rec.709 give an unparalleled cinematic experience.
Theater-Level Harman Kardon Speakers
The X1 is embedded with theater-level speakers customized by Harman Kardon, delivering an all-around immersive experience for an audiovisual feast.
1080p Full HD for Captivating Details
Experience every detail with ultra-sharp image quality delivered in Full HD 1080p resolution with HDR support for a visual spectacle wherever you are.
Unveil Hidden Details with Higher Contrast Ratio
Take in images with more depth with high native contrast ratio given by Texas Instrument 0.65" DMD. The X1 delivers deeper blacks clearly showing the shades of images, and letting you see more dark scene details and the liveliness of bright scenes.
Wireless Screen Mirroring from Your Smart Devices
Create and share amplified enjoyment in an instant.
Thanks to the embedded 5GHz fast speed Wi-Fi connectivity,
you can cast or screen-mirror content from your devices at hand to the big screen without a single cable.
*only work with “smart system” input source
Bluetooth Enabled for Additional Audio Options
Enjoy quality sound on your own terms. Use the X1 as a Bluetooth speaker to get the party started or connect your Bluetooth headphones and immerse yourself in your own world of big-screen entertainment.
*only work with “smart system” input source
Direct Content Streaming via USB Type-C
Project content directly from your phone or other mobile devices via USB Type-C while simultaneously charging it. Stream videos, FaceTime with friends, or play Nintendo® Switch on the big screen without a docking station, all through a single cable.
*Devices must support USB Type-C video streaming.
*Apple-authorized Lightning to HDMI adaptor required for iPhone and iPad users.
Intuitive Touch Control with Your Phone
Now you can turn your mobile device into an alternative powerful remote control – intuitive touch control, easy typing, and simple annotation on the big screen. Simply download the ViewSonic vCastSender app on your phone, make sure your phone and the projector are connected to the same Wi-Fi network, and pair them up in the app to get started.
Instant Power On to Enjoy Your Favorite Shows Right Away
Tired of staring at a blank screen waiting for the display to get started? We revolutionized the stereotypical projector start time allowing you to turn the X1 on in an instant - just like you would with a regular TV.
Get Perfectly-Shaped Images Effortlessly
Central positioning is no more a must. With the comprehensive H/V keystone, 4 corner adjustment and auto V keystone capabilities, the projector is able to deliver perfectly-shaped images from above, below, front or side, making the setup a breeze and allowing you to project from any angle you like.
V Lens Shift Offering Flexibility in Installation
The tool-free, lens shift control knobs make the adjusting of the projection lens a piece of cake. The X1 offers the flexibility of vertical image adjustment so that the users can adjust the location of the projected image without moving the projector – no need to renovate the interior design when mounting the projector.
Adaptable to Any Environment with Optical Zoom
Equipped with a 1.3x optical zoom lens, the projector empowers users to choose the most ideal set-up location within a range, assuring the desired image size perfectly fits the existing interior design.
Flexible Multimedia Access with Plug & Play

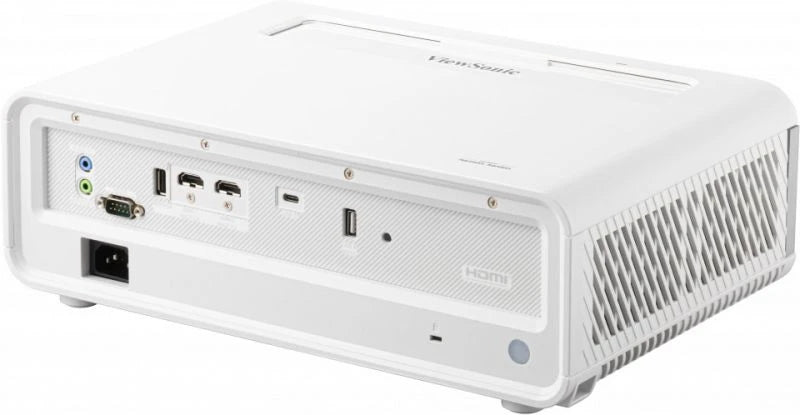

The X1 has a versatile array of connectivity including USB Type-C, two USB Type-A ports*,
and two HDMI 2.0 / HDCP 2.2 ports that ensure access to original 4K quality content. Additionally, its 11GB of local storage allows you to save your favorite content directly onto the projector.
*only one USB Type-A port can use as source input
Customize Your Own Color Profiles
By using a cloud-based color profile exchange, users can create their own color profile to fit their preferences and share it with others. Also, users can download other profiles from their projectors and fine-tune them as their own.
Smart Backlit Remote Control with Antibacterial Capability
Bother no more finding the right command button in the dark cinema. With a built-in G sensor, the smart remote control lights up automatically at your service upon the lift. The special silver ion coating carries antibacterial capability certified by TÜV, protecting your health while being entertained.
Designed with
Eye Care in Mind
The X1 has been certified by TÜV SÜD for a low blue light ratio which contributes to increasing eye protection. The projector utilizes reflective light which bounces off the wall or projector screen before hitting your eyes, allowing you to enjoy prolonged viewing periods with minimized eyestrain.
*The low blue light mode can be set up manually
-
Specification
Projection System: 0.65" 1080p
Native Resolution: 1920x1080
Brightness: 3100 (LED Lumens)
Contrast Ratio: 3000000:1
Display Color: 1.07 Billion Colors
Light Source Type: LED
Light Source Life (hours) with Normal Mode: 30000
Lamp Watt: RGBG LED
Lens: F=2.59-2.87, f=16.88-21.88mm
Projection Offset: 110%+/-5%
Throw Ratio: 1.15-1.5
Optical Zoom: 1.3X
Digital Zoom: 0.8x-2.0x
Image Size: 60"-150"
Throw Distance: 1.53m-4.98m
(100"@2.55m)
Keystone: H:+/-40° , V:+/-40°
Lens Shift V. Range: +10%, -0%
Audible Noise (Normal): 31dB
Audible Noise (Eco): 27dB
Local Storage: Total 16GB
(11GB available storage)
Input Lag: 8.3ms
Resolution Support: VGA(640 x 480) to 4K(3840 x 2160)
HDTV Compatibility: 480i, 480p, 576i, 576p, 720p, 1080i, 1080p, 2160p
Horizontal Frequency: 15K-135KHz
Vertical Scan Rate: 23-120Hz
-
Input
HDMI: 2
(HDMI 2.0, HDCP 1.4/2.2)
USB Type C: 1 (5V/ 1A)
Audio-in (3.5mm): 1
Audio-in (Bluetooth): 1 (BT4.2)
USB Type A: 1
(USB2.0 Reader x1)
Wifi Input: 1 (5Gn)
-
Output
Audio-out (3.5mm): 1
Audio-out (Bluetooth): 1 (BT4.2)
Speaker: 6W Cube x2
(Full range x2)
USB Type A (Power): 1
(USB2.0 - 5V/1A x1,
share with USB A Input)
-
Control
RS232 (DB 9-pin male): 1
USB Type A (Services): 1
-
Others
Power Supply Voltage: 100-240V+/- 10%, 50/60Hz
(AC in)
Power Consumption: Normal: 218W
Standby: <0.5W
Operating Temperature: 0~40℃
Carton: Color
Net Weight: 3.6kg
Gross Weight: 5.5kg
Dimensions (WxDxH) with Adjustment Foot: 355x244x121mm
Packing Dimensions: 490x376x313mm
OSD Language: English, French, Spanish, Thai, Korean, German, Italian, Russian, Swedish, Dutch, Polish, Czech, T-Chinese, S-Chinese, Japanese, Turkish, Portuguese, Finnish, Indonesian, India, Arabic, Vietnamese, Greek, Hungarian Total 24 languages
User Guide Language: English, S-Chinese, T-Chinese, Indonesian, Finish, French, German, Italian, Japanese, Korean, Polish, Portuguese, Russian, Spanish, Swedish, Turkish, Arabic, Czech, Thai, Vietnamese, total 20 languages
-
Standard Accessory
Power Cord: 1
USB-C Cable: 1 (1m)
Remote Control: 1
(w/ backlit)
QSG: Yes
Warranty Card: Yes (CN Only)
-
Optional Accessory
Wall/Ceiling Mount: PJ-WMK-007
