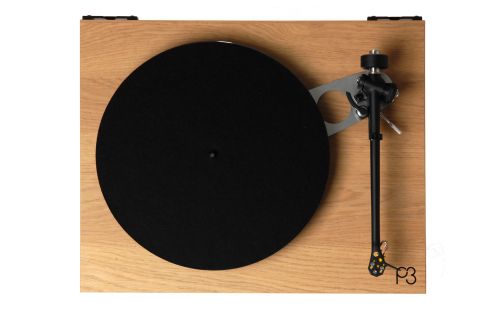

Rega Planar 3 Nd5 MM [Phono Pre-Amp Needed]

The Rega Planar 3 Nd5 MM combines Rega's acclaimed Planar 3 turntable platform with the precision RB330 tonearm and factory-fitted Nd5 moving magnet cartridge. Its lightweight rigid plinth, double-brace construction, 24 V low-noise motor, Advanced EBLT drive belt and 12 mm Optiwhite polished glass platter are designed to provide a stable and controlled foundation for analogue playback. An external MM phono pre-amplifier or an amplifier with a dedicated MM phono input is required.

Key Features

• Rega Planar 3 precision belt-drive turntable.
• Factory-fitted Rega Nd5 moving magnet cartridge.
• Hand-assembled RB330 precision tonearm.
• 24 V low-noise, low-vibration motor.
• Advanced EBLT drive belt.
• 12 mm Optiwhite polished glass platter.
• Double-brace plinth technology.
• Precision brass main bearing.
• Rega-designed isolation feet.
• 33⅓ and 45 RPM playback.
• Clear dust cover supplied as standard.
• Compatible with the optional Rega Neo power supply.
• External MM phono pre-amplifier required.

RB330 Precision Tonearm

The RB330 is Rega's hand-assembled precision tonearm, designed to provide accurate cartridge tracking with very low friction. Its rigid construction and carefully distributed mass complement the lightweight Planar 3 plinth.

Rega Nd5 MM Cartridge

The Rega Nd5 is a moving magnet cartridge supplied factory fitted to the Planar 3 in this configuration. It uses a low-mass body, aluminium cantilever and a perfect elliptical nude diamond stylus. Its three-point mounting system is designed specifically around Rega tonearms and simplifies accurate installation.

24 V Drive Motor

The Planar 3 uses a 24 V low-noise motor designed to minimise unwanted vibration and maintain stable platter rotation. The motor control electronics also allow the turntable to be upgraded with the optional Rega Neo power supply.

Advanced EBLT Drive Belt

The Advanced EBLT drive belt is fitted as standard. It works with the motor pulley and sub-platter to provide accurate and stable rotational drive.

12 mm Optiwhite Glass Platter

A 12 mm Optiwhite polished glass platter provides the record-supporting surface. Its rigid construction and polished edge contribute to the Planar 3's mechanical stability and distinctive appearance.

Double-Brace Plinth

Rega's double-brace technology reinforces the critical area between the tonearm mounting point and the main hub bearing. Instead of adding unnecessary mass to the complete plinth, the reinforcement is concentrated where structural rigidity is most important.

Precision Main Bearing

The Planar 3 incorporates Rega's precision main bearing assembly with a brass housing. The bearing is designed to maintain accurate platter rotation while controlling unwanted mechanical energy within the turntable.

Phono Pre-Amplifier Required

The Planar 3 Nd5 MM does not include a built-in phono stage. Because the supplied Nd5 is an MM cartridge, the turntable must be connected to a compatible MM phono pre-amplifier or an amplifier/receiver with a dedicated MM phono input. It should not be connected directly to a standard line-level input without appropriate phono amplification.

Finish Options

The standard Planar 3 is available in High-Gloss White, High-Gloss Black, High-Gloss Red and Light Oak Effect finishes, subject to market availability. All versions use the same Planar 3 engineering platform.

Connectivity

The Planar 3 provides a standard RCA / phono output from the Nd5 cartridge. The signal must pass through an MM phono stage before being connected to a standard line-level amplifier input.

Dimensions & Weight

Included Configuration

• Rega Planar 3 Turntable
• Rega RB330 Precision Tonearm
• Rega Nd5 MM Cartridge – Factory Fitted
• 12 mm Optiwhite Polished Glass Platter
• Advanced EBLT Drive Belt
• Record Mat
• Clear Dust Cover
• Power Supply
