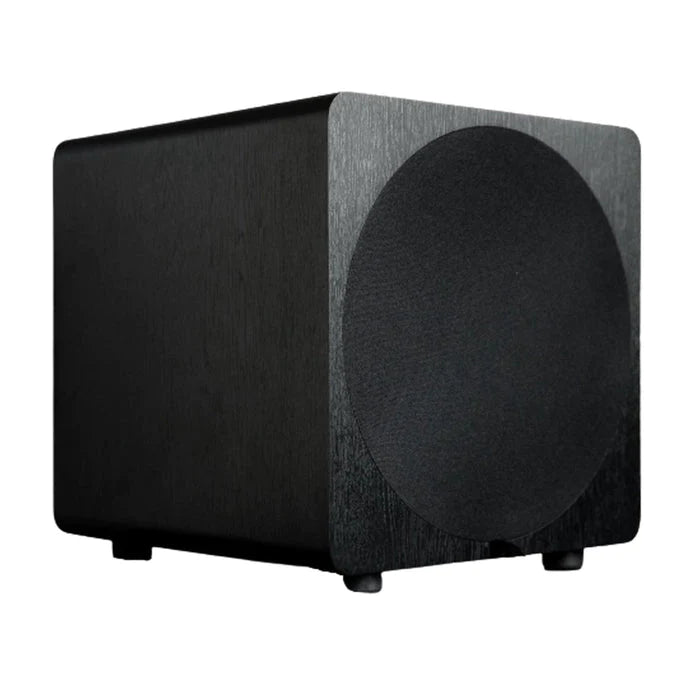

Velodyne Acoustics Deep Blue
Pressurized, precise low frequency for every living ambiance
The Deep Blue Series combines all the benefits of Velodyne Acoustics subwoofers in a living room-friendly format. The frequency response of the front-firing drivers, designed from the ground up, extends deep into the frequency basement for impressive home theater experiences.
Technical Specifications :
Driver |
10″ forward firing |
Amplifier Class AB |
850 watts dynamic 350 watts RMS power |
Frequency Response: Overall Frequency Response: (± 3 dB) |
16 – 280 Hz 28 – 180 Hz |
Low Pass Crossover |
50 Hz to 180 Hz (12 dB/Octave) |
Phase |
0 to 180 degrees |
Cabinet Design |
MDF Closed Box with 52mm / 2” front Baffle |
Magnet Structure |
Dual ferrite magnet motor |
Woofer |
10” high excursion double vented basket driver with PP inforced Membrane |
Voice Coil |
Four Layer 2″ / 52mm Voicecoil |

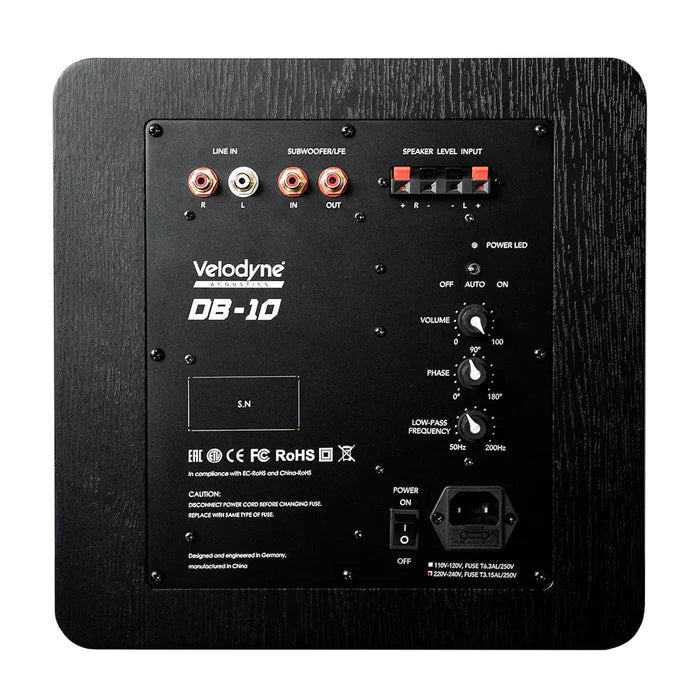

Input |
GoldPlated Line in Stereo RCA, LFE in, Nickel Plated Highlevel |
Output |
Gold plated LFE /RCA |
Power Selector |
Off / Auto / On |
Finishes |
Black |
Dimensions (W/H/D) (includes feet and connectors) |
29,6 x 31,6 x 34,8 cm |
Weight (approx) |
11 kg |
Shipping Weight (approx) |
12,5 kg |
