Name: WiiM Amp
Brand: WiiM
Price: 49800.0 INR
Availability: InStock

WiiM Amp

₹ 49,800.00

Tax included.

Color Grey

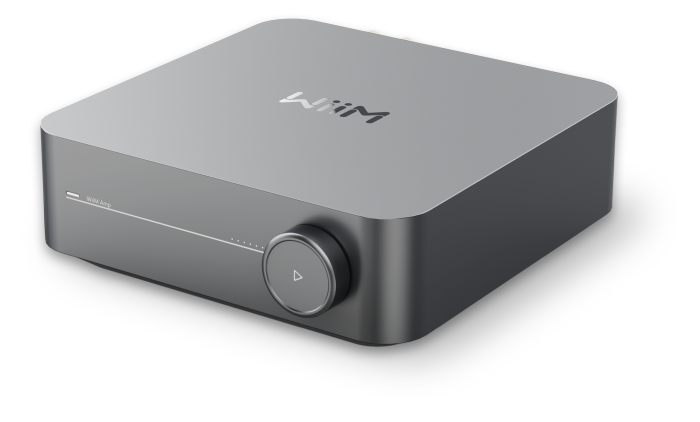

WiiM Amp – Stereo Streaming Amplifier

The WiiM Amp is a compact all-in-one streaming amplifier designed to power passive speakers while adding high-resolution music streaming, HDMI ARC, multi-room audio and smart-home integration. Delivering 60 watts per channel into 8Ω and 120 watts per channel into 4Ω, it combines a network streamer, DAC and Class-D stereo amplifier in a single aluminium chassis.

Key Features

All-in-one stereo streaming amplifier
60W per channel into 8Ω
120W per channel into 4Ω
TI TPA3255 Class-D amplification
ESS 9018K2M DAC
High-resolution playback up to 24-bit/192kHz
HDMI ARC for TV audio
Wi-Fi 5 wireless connectivity
Bluetooth 5.0
Wired Ethernet connection
Apple AirPlay 2 support
Google Cast Audio support
Spotify Connect and TIDAL Connect
DLNA and multi-room playback
USB storage and USB audio output support
Dedicated powered subwoofer output
Advanced EQ and room-correction functions through WiiM Home
Works with Alexa, Google Assistant and Siri
Compact aluminium chassis

Powerful Class-D Amplification

The WiiM Amp uses TI TPA3255 Class-D amplification to drive passive loudspeakers directly. It delivers 60W per channel into 8Ω or 120W per channel into 4Ω, making it suitable for bookshelf speakers and many floorstanding loudspeakers.

Streaming & Multi-Room

The WiiM Amp provides integrated network streaming through Wi-Fi or Ethernet and supports services and protocols including AirPlay 2, Google Cast Audio, Spotify Connect, TIDAL Connect and DLNA. Multiple compatible WiiM products can also be grouped for synchronized multi-room playback.

Connectivity

HDMI ARC: Connect a compatible television and control volume using the TV remote
RCA Line In: Connect analogue sources such as a CD player or phono preamp
Optical In: Connect compatible digital audio sources
USB: External storage playback and compatible USB audio output
Subwoofer Out: Connect an active powered subwoofer
Speaker Outputs: Drive passive speakers directly
Ethernet: Stable wired network connection
Wi-Fi: Wireless streaming and multi-room audio
Bluetooth: Wireless audio connectivity

Technical Specifications

Product Type	Stereo Streaming Integrated Amplifier
Amplifier Technology	TI TPA3255 Class-D
Power Output – 8Ω	60W per Channel
Power Output – 4Ω	120W per Channel
Supported Speaker Impedance	8Ω / 6Ω / 4Ω
Minimum Supported Impedance	2.67Ω under supported multi-speaker configuration
DAC	ESS 9018K2M
Maximum Audio Resolution	Up to 24-bit / 192kHz
Analog Output SNR	98dB
THD+N	-92dB / 0.0025% at 5W
Analog Input ADC	Up to 24-bit / 192kHz
HDMI	HDMI ARC
Analog Input	RCA Line In
Digital Input	Optical SPDIF
USB	Storage / Audio Output
Subwoofer Output	Yes
Wi-Fi	Wi-Fi 5
Bluetooth	Bluetooth 5.0
Ethernet	Yes
AirPlay 2	Yes
Google Cast Audio	Yes
Multi-Room Audio	Yes
Voice Assistant Support	Alexa / Google Assistant / Siri
Dimensions (W × D × H)	217 × 190 × 64mm
Weight	1.84kg
Finish	Aluminium
Colour Options	Space Gray / Silver

TV & Subwoofer Integration

HDMI ARC allows the WiiM Amp to function as a simple stereo TV sound system without requiring a traditional AV receiver. A dedicated subwoofer output allows an active subwoofer to be integrated for deeper bass, while bass-management and room-adjustment options are available through the WiiM ecosystem.

Ideal For

Compact stereo Hi-Fi systems
Passive bookshelf and floorstanding speakers
TV audio via HDMI ARC
2.1 systems with a powered subwoofer
Streaming music systems
Multi-room audio installations
Users replacing a separate streamer and integrated amplifier

Why Choose the WiiM Amp?

The WiiM Amp combines streaming, DAC conversion and stereo amplification in one compact component. With 60W per channel into 8Ω, HDMI ARC, AirPlay 2, Google Cast Audio, Ethernet, Wi-Fi, USB and subwoofer connectivity, it provides a simple way to build a modern Hi-Fi system around passive speakers without requiring multiple separate components.

FAQs

What's difference of WiiM Amp and WiiM Pro Plus, Pro or Mini?

WiiM Amp is a all-in-one streaming amplifier box, designed to provide both streaming capabilities and amplification to your passive speakers. It comes equipped with HDMI ARC, Sub Out and a USB port, enabling playback of local music via USB.
On the other hand, the WiiM Pro Plus, Pro and Mini are dedicated music streamers that require an external amplifier for operation. Unlike WiiM Amp, they do not feature the HDMI ARC, Sub Out or USB ports.

Can the WiiM Amp be connected to a powered speaker, soundbar, or multi-channel AV receiver?

No. The WiiM Amp is equipped solely with speaker outputs, lacking the necessary analogue or digital outputs to connect to a powered speaker, soundbar, or AV receiver. For such connections, consider opting for the WiiM Mini, Pro, or Pro Plus models.

Is the 60W/channel a peak or continuous power rating?

WiiM Amp delivers a continuous power of 60W per channel at an 8 ohms load, or 120W per channel at 4 ohms load, with both channels driven.

Do I need to use banana plugs or a straight wire connection?

Banana plugs are recommended for the best sound and more reliable performance. It also works with a straight wire connection.

Is a separate music streamer like the WiiM Pro required to stream music to the WiiM Amp?

No. The WiiM Amp has the built-in streaming component, making it an all-in-one solution with both streaming and amplification capabilities.

Does the WiiM Amp feature a headphone output for headphone connections?

The Amp lacks a dedicated headphone output. However, it can pair with Bluetooth headphones, serving as the Bluetooth music source for your listening convenience.
