| Specification |
Details |
| Tubes |
2 x ECC83 (12AX7A) |
| Input Impedance |
Variable 10–1000 ohms / Fixed 47 kΩ |
| Input Capacitance |
47pF, 147pF, 267pF, 367pF |
| Gain |
40 dB, 45 dB, 50 dB, 60 dB, 65 dB (switchable) |
| Output Voltage (typical) |
500 mV at 1 kHz with 5 mV input at 40 dB gain |
| Noise Floor |
88 dB (A weighted, at 40 dB gain) |
| Total Harmonic Distortion (THD) |
<0.04% |
| RIAA Equalisation Accuracy |
20 Hz – 20 kHz / +0.2 dB / -0.2 dB |

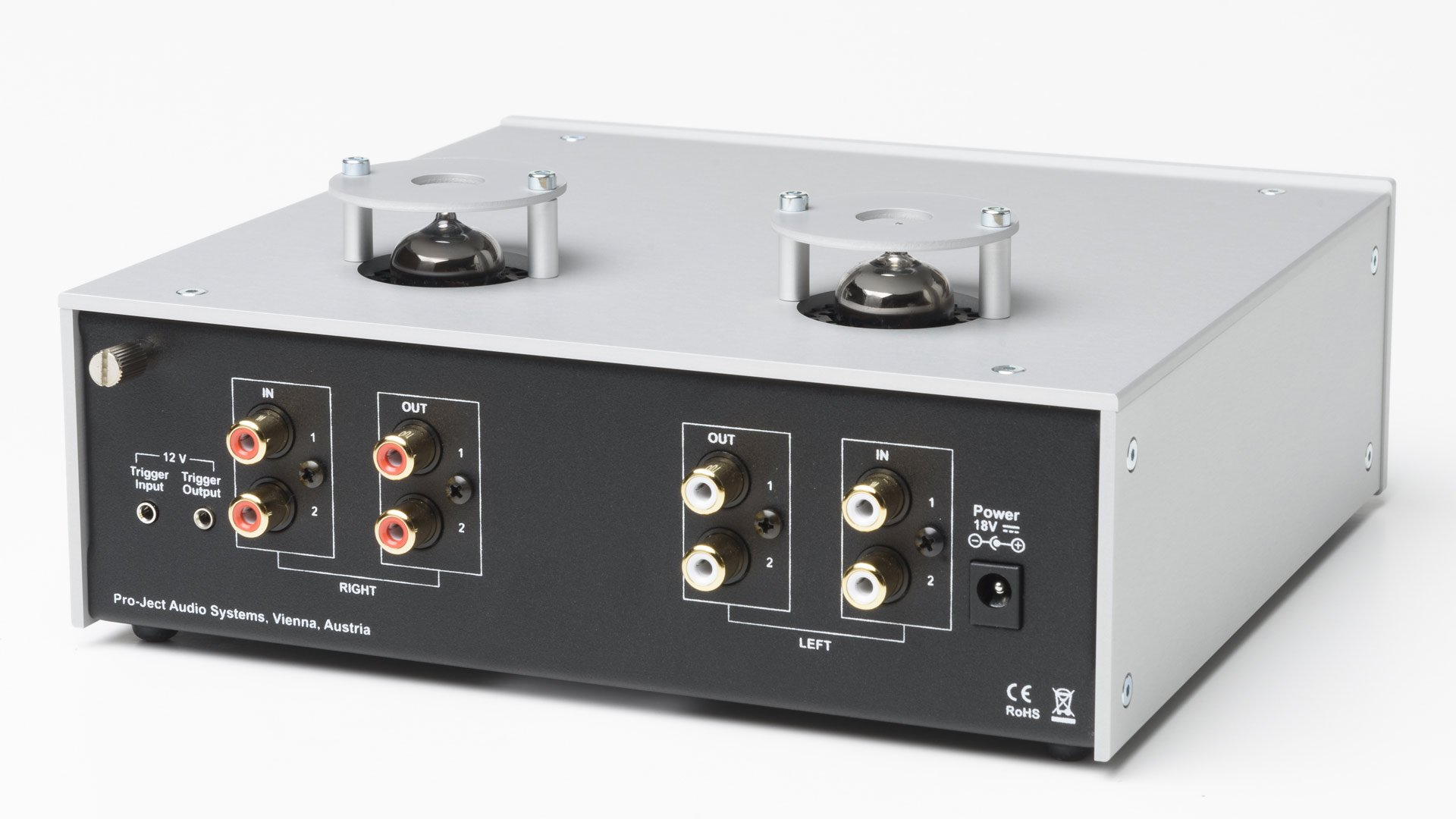

| Inputs |
2 pairs RCA/phono sockets |
| Outputs |
2 pairs RCA/phono sockets (line-level) |
| Power Supply |
18 V / 1000 mA DC (external) |
| Power Consumption |
490 mA DC, <0.5 W in standby |
