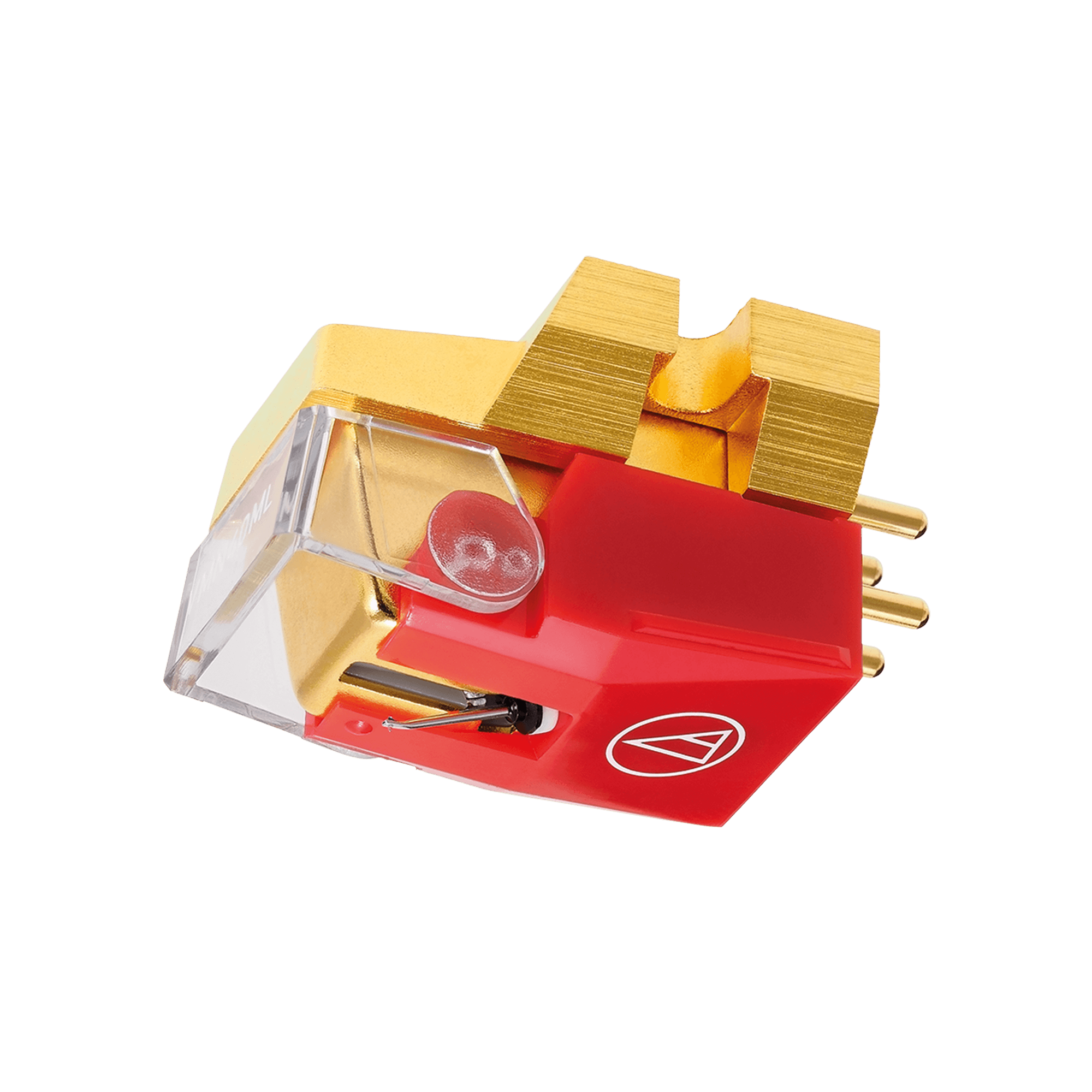

Audio-Technica AT-VM740ML Dual Moving Magnet Cartridge

The Audio-Technica AT-VM740ML is a premium Dual Moving Magnet cartridge from the acclaimed VM700 Series, engineered for exceptional detail retrieval, low distortion, and accurate vinyl playback. Equipped with a MicroLine stylus and an aluminum alloy die-cast housing, the AT-VM740ML delivers outstanding tracking performance and extracts the finest musical nuances from your record collection.

Key Features

• Premium VM700 Series Dual Moving Magnet cartridge
• MicroLine stylus profile closely replicates the shape of a cutting stylus
• Superior groove contact for exceptional detail retrieval and reduced record wear
• Paratoroidal coil construction improves efficiency and channel separation
• Center shield plate minimizes crosstalk between channels
• Lightweight nude diamond stylus for enhanced tracking accuracy
• Rigid aluminum tapered cantilever for precise signal transmission
• Die-cast aluminum alloy housing reduces unwanted resonance
• Compatible with standard half-inch mount tonearms
• Replaceable stylus assembly for long-term performance and maintenance

Technical Specifications

• Cartridge Type: Dual Moving Magnet (VM)
• Frequency Response: 20Hz – 27,000Hz
• Channel Separation: 28 dB (1kHz)
• Channel Balance: 1.0 dB (1kHz)
• Output Voltage: 4.0 mV (1kHz, 5cm/sec.)
• Vertical Tracking Angle: 23°
• Vertical Tracking Force Range: 1.8 – 2.2g
• Recommended Tracking Force: 2.0g
• Stylus Shape: Nude MicroLine
• Stylus Dimensions: 2.2 × 0.12 mil
• Cantilever: Aluminum Tapered Pipe
• Coil Impedance: 2.7 k? (1kHz)
• DC Resistance: 800 ?
• Load Impedance: 47 k?
• Load Capacitance: 100 – 200 pF
• Static Compliance: 40 × 10?? cm/dyne
• Dynamic Compliance: 10 × 10?? cm/dyne (100Hz)
• Weight: 8.0g

What's in the Box

• Audio-Technica AT-VM740ML Cartridge
• VMN40ML Nude MicroLine Replacement Stylus (Pre-installed)
• Stylus Protector
• Mounting Hardware Set
• Non-Magnetic Screwdriver
• Brush
• User Documentation

Designed for discerning vinyl enthusiasts, the AT-VM740ML combines advanced MicroLine stylus technology, excellent channel separation, and precise tracking performance to deliver highly detailed, natural, and dynamic sound reproduction from every record.
