FEATURES

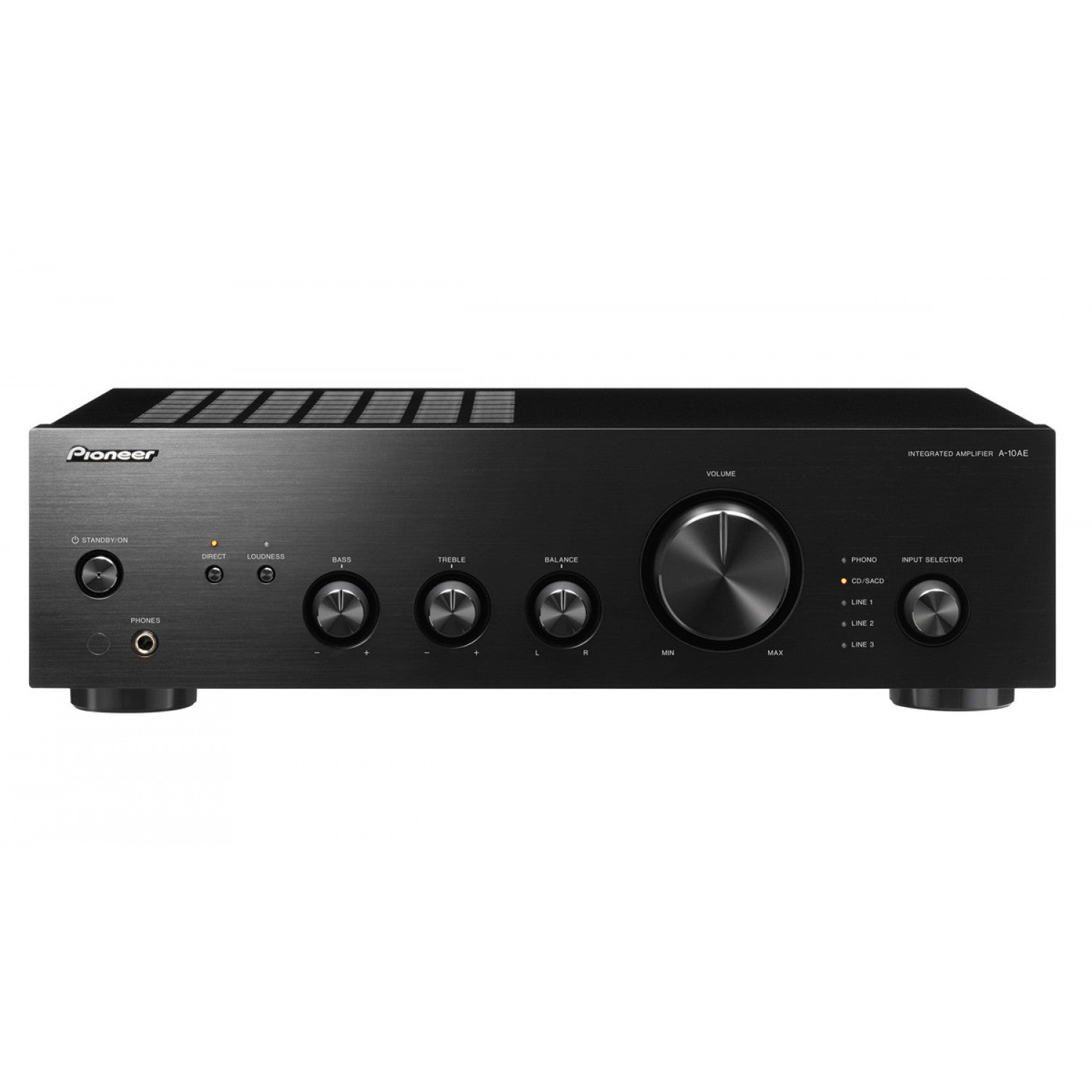

Based on Pioneer’s Direct Energy Design concept, the A-10AE integrated amplifier pursues a high S/N ratio to create an overwhelming sound field rich with reality. Highlight features include isolated power supply, Direct Function, and phono MM input, letting listeners enjoy a crisp, clear sound close to the original performance.

Isolated power supply

The windings for the power amplifier, pre-amplifier, and controls are separated inside the power transformer to prevent mutual noise interference.

Direct function

The A-10AE features Direct Function, which bypasses other circuits except for the volume to offer a pure listening experience suitable for musical content. The function is not just a simple switching but is finely tuned to enhance the musicality.

Anti-standing wave insulators

The Anti-Standing Wave Insulator features a special form with no parallel sides inside to prevent cavity resonance. This makes the sound localization, tone, and scale clearer, while also contributing to seamless connection between the channels and improved response to quick sound.

Non-magnetic material speaker terminals

The speaker terminals use non-magnetic material, which is less susceptible to external noise and transmits signals to the speakers at high purity.

Audio features

• 50 W + 50 W (20 Hz-20 kHz, THD 0.9 %, 4 ohms, 2ch Driven)
• 30 W + 30 W (20 Hz-20 kHz, THD 0.7 %, 8 ohms, 2ch Driven)
• Guaranteed Speaker Impedance (2 Speaker Terminals): 4-16 ohms
• Frequency Response: 10 Hz-100 kHz +1 dB/-3 dB
• Signal-to-Noise Ratio (IHF-A) 103 dB (LINE In, SP Out), 78 dB (PHONO In, SP Out)
• Direct Energy Design
• Clean Ground Construction
• Isolated Power Supply Circuits
• Direct Function
• Tone Control (Bass/Treble)
• Balance Control
• Loudness
• 1.6 mm-Thick Rigid Steel Chassis
• Auto Standby
• Power Requirements: AC 220-230 V, 50/60 Hz
• Power Consumption: 130 W
• Power Consumption During Standby: 0.2 W
