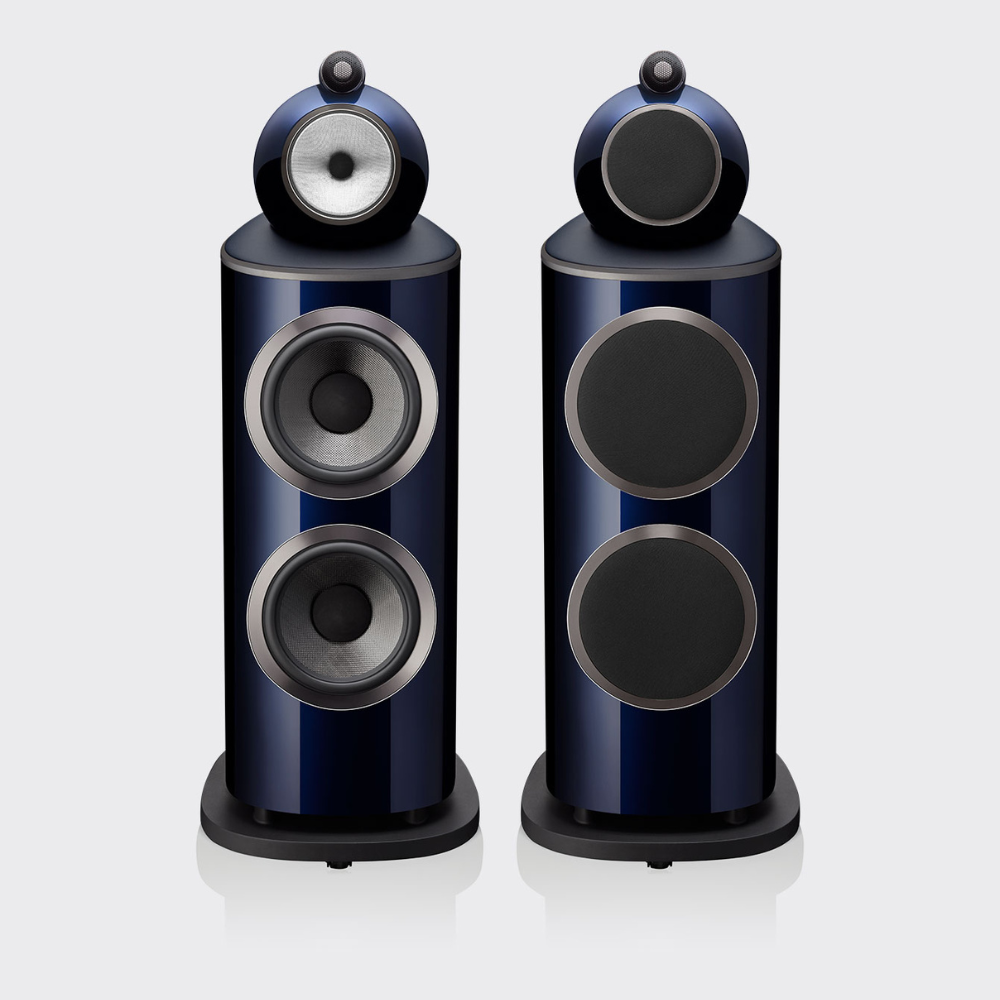

801 D4 Signature Loudspeaker
The 801 D4 Signature is an optimized version of our most advanced loudspeaker. It features meticulously evolved technology, carefully crafted design, and unique finishes that culminate in the pinnacle of performance. This is Bowers & Wilkins 800 Series Signature flagship loudspeaker.
Key Features
- Diamond tweeter for high-frequency precision.
- Solid Body Tweeter-on-Top for enhanced clarity.
- Continuum™ cone FST™ midrange for natural sound reproduction.
- Matrix™ technology for minimal distortion.
- Anti-Resonance plug for reduced cabinet vibrations.
- Biomimetic Suspension for improved bass response.
- Turbine Head design for optimal acoustic performance.
- Aerofoil™ Profile bass cones for deeper bass.
- Flowport™ for controlled airflow and reduced port noise.
- Luxurious cabinet finishes: California Burl Gloss and Midnight Blue Metallic.
Technical Specifications
| Dimensions |
Height: 1221mm (48.1in), Width: 451mm (17.8 in), Depth: 600mm (23.6 in) |
| Net weight |
100.60kg (221.8 lb) |
| Drive units |
1x ø25mm (1in) Diamond Dome high-frequency, 1x ø150mm (6in) Continuum™ cone FST™ midrange, 2x ø250mm (10in) Aerofoil™ Profile bass |
| Frequency range |
-6dB 13Hz - 35kHz |
| Harmonic distortion |
2nd and 3rd harmonics (90dB, 1m on axis) < 1% 30Hz – 20kHz, < 0.3% 100Hz – 20kHz |
| Nominal impedance |
8Ω (minimum 3.0Ω) |
| Recommended amplifier power |
50W - 1,000W into 8Ω on unclipped programme |
| Max recommended cable impedance |
0.1Ω |
| Frequency response |
15Hz - 28kHz ±3dB |
| Sensitivity |
90dB spl (2.83Vrms, 1m) |
| Cabinet finishes |
California Burl Gloss, Midnight Blue Metallic |
| Grille finishes |
Black |
