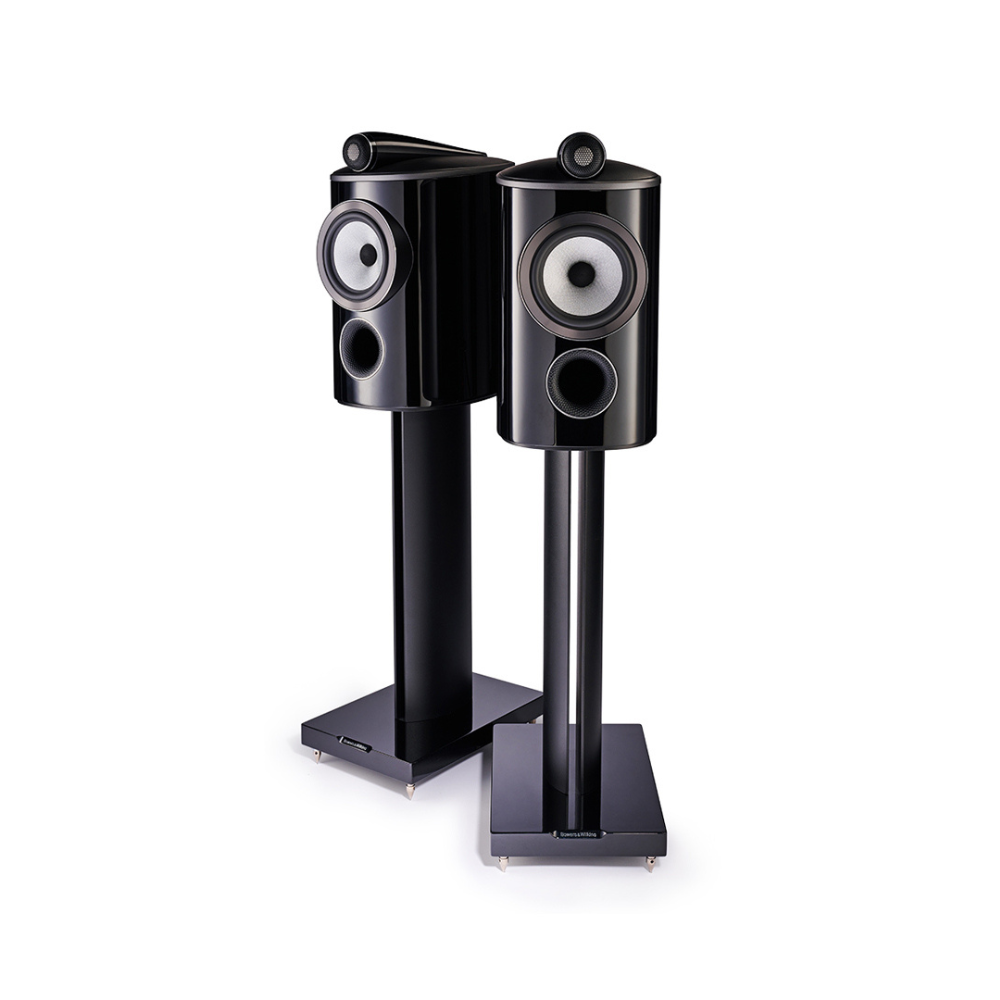

805 D4 Stand-Mount Loudspeaker
The 805 D4 stand-mount loudspeaker is the most compact model in the 800 Series Diamond range, but it’s still packed with advanced technologies, including the Diamond dome tweeter and the Solid Body Tweeter-on-Top. This high-performance speaker delivers exceptional sound quality, offering clarity and precision in every note. Stand(s) not included.
Key Features
-
Diamond Dome Tweeter: Provides unmatched clarity and detail in high frequencies.
-
Solid Body Tweeter-on-Top: Delivers enhanced performance and sound dispersion.
-
Continuum™ Cone Bass/Mid: Offers a balanced and natural sound with excellent midrange response.
-
Matrix™ Technology: Ensures structural rigidity, reducing vibrations and improving sound accuracy.
-
Anti-Resonance Plug: Reduces unwanted resonances to ensure clean and pure sound.
-
Flowport: Optimizes airflow for better bass response and reduced distortion.
Technical Specifications
| Size & Weight |
15.55kg (34.3 lb) |
| Dimensions |
Height: 440mm (17.3 in), Width: 240mm (9.4 in), Depth: 373mm (14.7 in) |
| Technical Features |
Diamond tweeter, Solid body Tweeter-on-Top, Continuum™ cone bass/mid, Matrix™, Anti-Resonance plug, Flowport |
| Description |
2-way vented-box system |
| Drive Units |
1x ø25mm (1in) Diamond dome high-frequency, 1x ø165mm (6.5in) Continuum cone bass midrange |
| Frequency Range |
34Hz to 35kHz |
| Frequency Response |
42Hz to 28kHz (+/-3dB from reference axis) |
| Sensitivity |
88dB (on axis at 2.83Vrms at 1m) |
| Harmonic Distortion |
2nd and 3rd harmonics (90dB, 1m on axis): <1% 90Hz – 20kHz, <0.3% 120Hz – 20kHz |
| Nominal Impedance |
8Ω (minimum 4.6Ω) |
| Recommended Amplifier Power |
50W – 120W into 8Ω on unclipped programme |
| Max Recommended Cable Impedance |
0.1Ω |
| Cabinet Finishes |
Gloss Black, White, Satin Rosenut, Satin Walnut |
| Grille Finishes |
Black, Grey |
