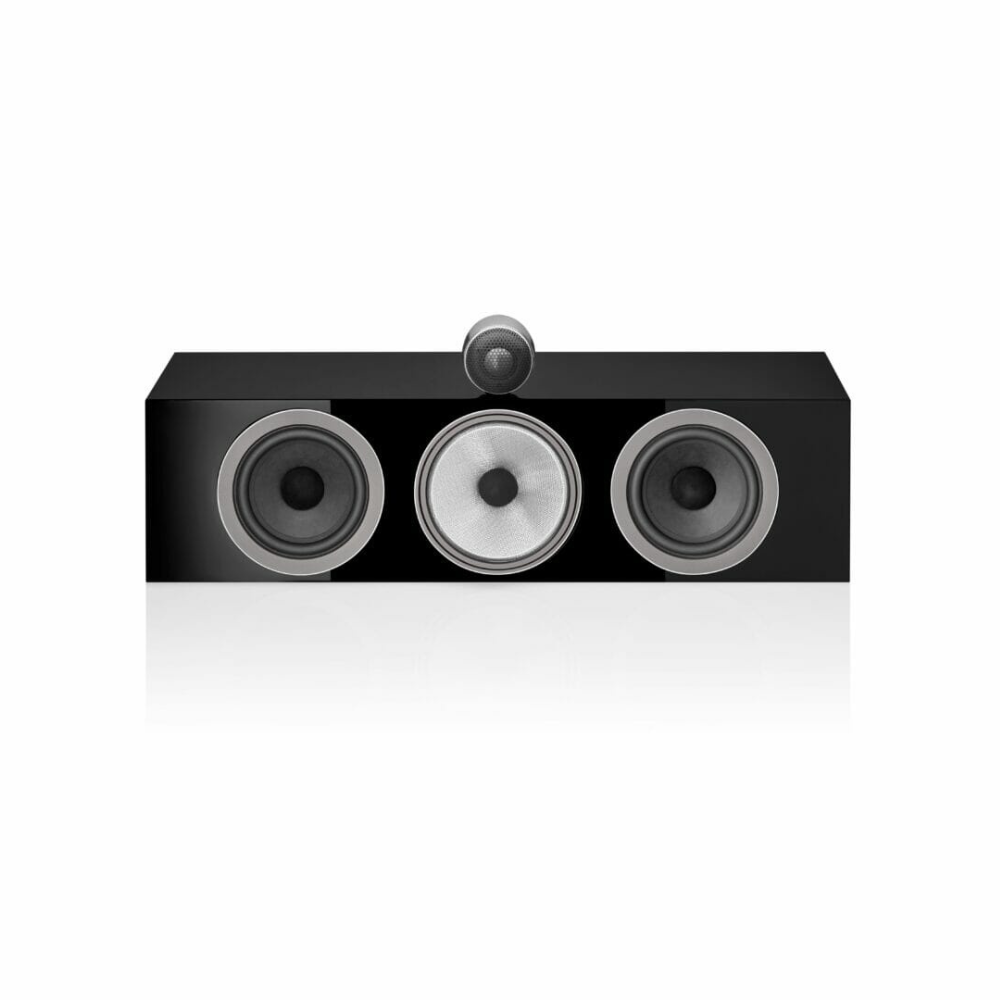

Flagship Center-Channel Speaker
Our flagship center-channel speaker features a Carbon Dome drive unit housed in a Tweeter-On-Top enclosure, a 130mm (5in) Continuum Cone FST™ midrange driver – particularly important for clarity with dialogue – and twin Aerofoil™ Profile bass cones. It’s the perfect partner for the 705 S3, 703 S3, and 702 S3.
Key Features
- Carbon Dome drive unit for enhanced high-frequency response.
- Continuum Cone FST™ midrange for clear and detailed dialogue.
- Twin Aerofoil™ Profile bass cones for powerful low-end performance.
- Decoupled Carbon Dome tweeter for improved sound clarity.
- Designed to complement the 705 S3, 703 S3, and 702 S3 speakers.
- Available in Gloss Black, Satin White, and Mocha finishes.
- Solid Body Tweeter-on-Top for optimal sound dispersion.
Technical Specifications
| Specification |
Details |
| Net Weight |
17.45kg (38.5 lb) |
| Dimensions (Height x Width x Depth) |
Height: 165 mm (6.5 in) cabinet only
Width: 628 mm (24.7 in) cabinet only
Depth: 318 mm (12.5 in) cabinet only
356 mm (14.0 in) including grille and terminals |
| Drive Units |
1x ø25mm (1 in) Decoupled Carbon Dome high-frequency
1x ø130mm (5 in) Continuum cone FST midrange
2x ø130mm (5 in) Aerofoil Profile bass |
| Frequency Range |
45Hz to 33kHz |
| Frequency Response |
50Hz - 28kHz ±3dB |
| Harmonic Distortion |
2nd and 3rd harmonics (90dB, 1m on axis)
<1% 90Hz - 22kHz
<0.5% 120Hz - 20kHz |
| Nominal Impedance |
8Ω (minimum 3.1Ω) |
| Recommended Amplifier Power |
30W - 200W into 8Ω on unclipped programme |
| Sensitivity |
89dB spl (2.83Vrms, 1m) |
| Technical Features |
Decoupled Carbon Dome tweeter
Solid Body Tweeter-on-Top
Continuum™ cone FST™ midrange
Aerofoil™ Profile bass cones
Flowport™ |
| System Type |
3-way vented-box system |
| Max Recommended Cable Impedance |
0.1Ω |
| Cabinet Finishes |
Gloss Black, Satin White, Mocha |
| Grille Finishes |
Black, Grey (Satin White only) |
