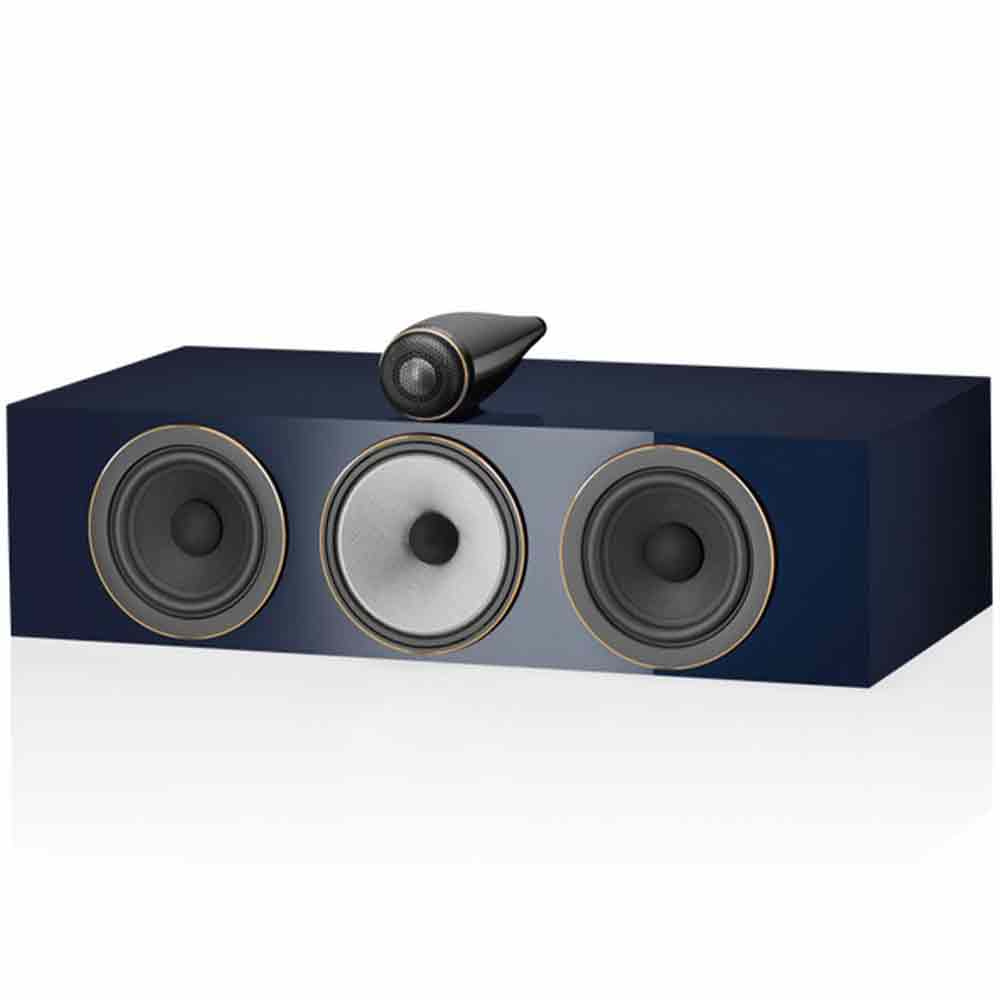

HTM71 S3 Signature - 700 Series Signature Center Channel Speaker
The HTM71 S3 Signature is a first-of-its-kind 700 Series Signature center channel speaker, designed to bring enhanced clarity and detail to your favorite movies and music. With cutting-edge technology and premium build quality, this speaker promises an unparalleled listening experience, whether you're enjoying cinematic soundtracks or the finest musical compositions.
Key Features
-
Advanced Sound Performance: A unique 3-way vented-box system for clear and immersive audio.
-
Decoupled Carbon Dome Tweeter: For precise high-frequency sound reproduction.
-
Continuum™ Cone FST™ Midrange: A smooth midrange response for accurate vocals and instruments.
-
Aerofoil™ Profile Bass Cones: Designed to produce tight and powerful bass, even at high volumes.
-
Flowport™ Technology: Enhances low-frequency response and reduces turbulence for cleaner bass.
-
Premium Finishes: Available in Datuk Gloss and Midnight Blue Metallic for a refined look.
Technical Specifications
| Specification |
Details |
| Net Weight |
18.50 kg (40.8 lbs) |
| Dimensions (H x W x D) |
Height: 165mm (6.5in), Width: 628mm (24.7in), Depth: 318mm (12.5in) |
| Drive Units |
1x ø25mm (1in) Decoupled Carbon Dome high-frequency
1x ø130mm (5in) Continuum cone FST midrange
2x ø130mm (5in) Aerofoil Profile bass |
| Frequency Range |
-6dB 45Hz - 33kHz |
| Frequency Response |
50Hz - 28kHz ±3dB |
| Harmonic Distortion |
<1% 90Hz - 22kHz
<0.5% 120Hz - 20kHz |
| Nominal Impedance |
8Ω (minimum 3.1Ω) |
| Recommended Amplifier Power |
30W - 200W into 8Ω on unclipped programme |
| Sensitivity |
89dB spl (2.83Vrms, 1m) |
| Max Recommended Cable Impedance |
0.1Ω |
| Technical Features |
Decoupled Carbon Dome tweeter, Solid Body Tweeter-on-Top, Continuum™ cone FST™ midrange, Aerofoil™ Profile bass cones, Flowport™ |
| Cabinet Finishes |
Datuk Gloss, Midnight Blue Metallic |
| Grille Finishes |
Black |
