Product Overview

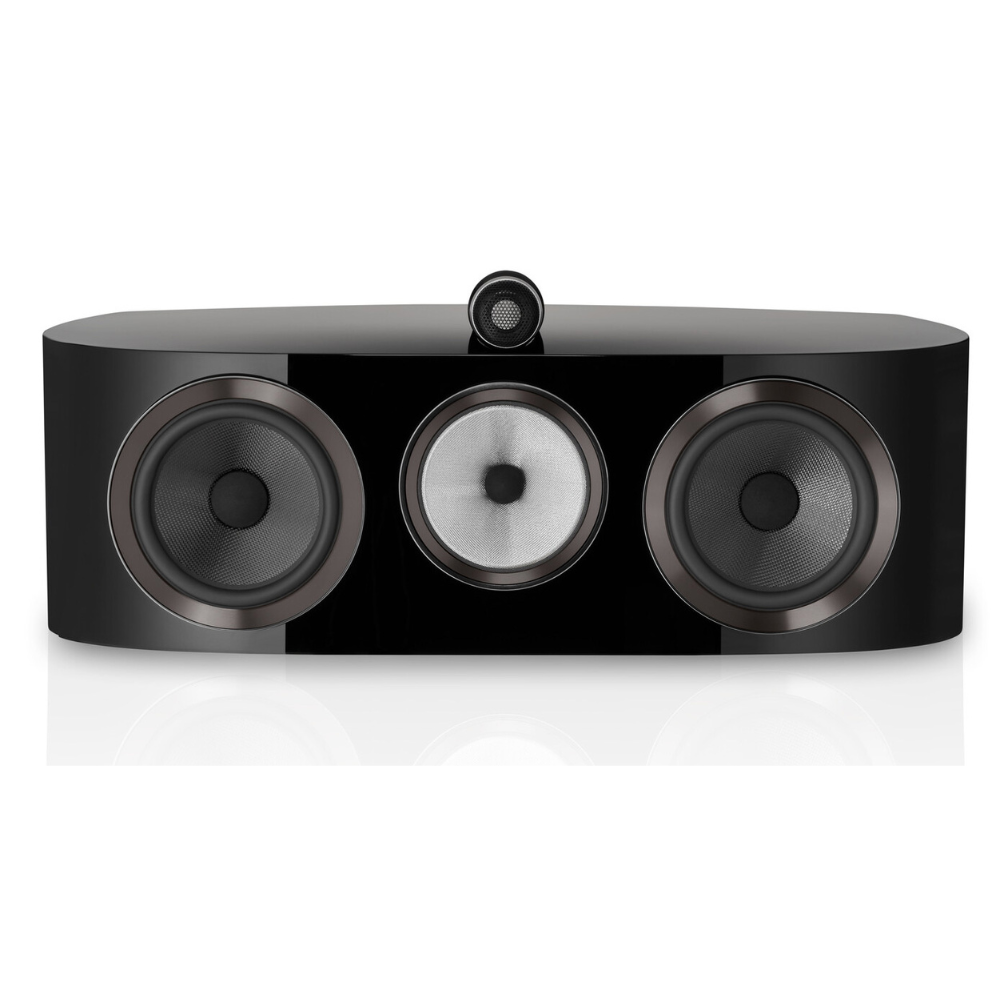

Our largest center-channel speaker is designed to partner with the 801 D4 and 802 D4. A powerful performer, it has both the scale and the midrange extension to perfectly match the quality of its illustrious stablemates. Stand(s) not included.
Key Features
- Diamond tweeter
- Solid body Tweeter-on-Top
- Continuum™ cone FST
- Matrix™ technology
- Anti-Resonance plug
- Biomimetic Suspension
- Aerofoil™ cone bass units
- Flowport
- 3-way vented-box system
Technical Specifications
| Specification |
Details |
| Net Weight |
32.20kg (71 lb) |
| Dimensions |
Height: 334mm (13.1 in), Width: 847mm (33.3 in), Depth: 371mm (14.6 in) |
| Frequency Range |
20Hz to 35kHz |
| Frequency Response |
28Hz to 28kHz (+/-3dB from reference axis) |
| Sensitivity |
90dB (on axis at 2.83Vrms at 1m) |
| Harmonic Distortion |
2nd and 3rd harmonics (90dB, 1m on axis)
<1% 80Hz – 20kHz, <0.3% 100Hz – 20kHz |
| Nominal Impedance |
8Ω (minimum 3.0Ω) |
| Recommended Amplifier Power |
50W – 500W into 8Ω on unclipped programme |
| Max Recommended Cable Impedance |
0.1Ω |
| Cabinet Finishes |
Gloss Black, White |
| Grille Finishes |
Black, Grey |
