The Power of Three

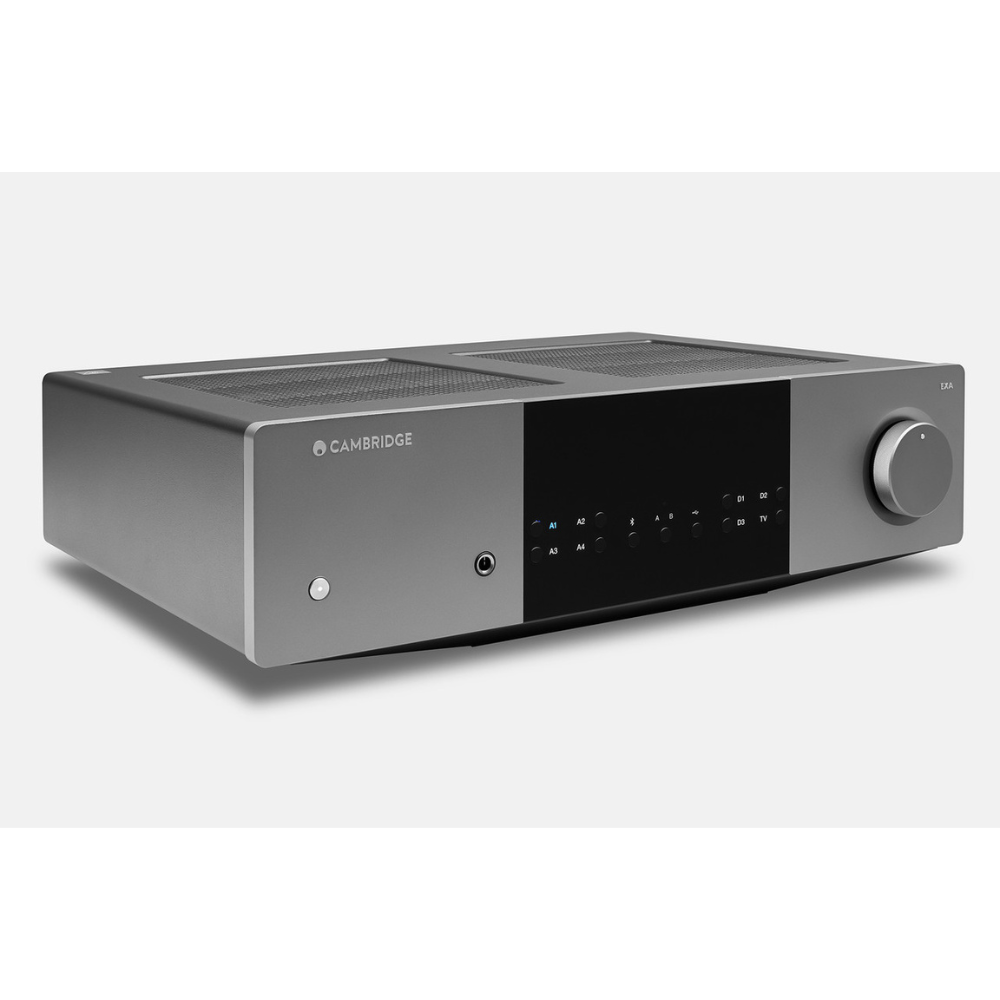

The beating heart of EX, our EXA100 integrated amplifier took three years to develop; more than a thousand dedicated days of tuning at our London HQ has created a massive step up in power and performance from the CX Series amps. An amplifier for the modern age, lovingly Made By Music.
Key Features
-
Best-in-Class Sound: Amplifier tech inspired by our flagship Edge M monobloc delivers an incredibly wide, detailed soundstage. Be moved by your music like never before.
-
Power With Control: 100 Watts per channel of perfectly tuned Class AB amplification skilfully drives even the most demanding speakers with ease.
-
Digital Connectivity: Get your TV, CD, USB drives and more connected via HDMI eARC, TOSLINK, Coaxial & USB Audio digital inputs.
-
Balanced XLR Inputs: Enjoy the best possible analogue sound quality with these premium analogue connections.
-
ESS ES9018K2M SABRE32 DAC: For exceptional digital-to-analogue conversion; tuned in London like no other for peak performance.
-
Bluetooth aptX HD: Wirelessly connect devices such as the Alva TT V2 turntable and stream in glorious hi-def quality.
-
Power Amp Mode: For use with a dedicated preamp or as part of a multi-channel system.
-
Dual Speaker Zones: Why limit the fun to just one room? Two sets of speaker outputs offer a second zone option.
Technical Specifications
| Power Output |
100W RMS into 8 Ohms @ <1%THD+N, 155W RMS into 4 Ohms @ 1kHz <1%THD+N |
| Amplification |
Class-A/B |
| DAC |
ES9018K2M |
| Preamp Mode |
Yes |
| Frequency Response |
<3Hz – >40kHz +/-1dB |
| Toroidal Transformer |
Yes |
| Bi-wiring possible |
Yes |
| Analogue RCA Inputs |
4 pairs |
| Balanced XLR Input |
1 pair |
| S/PDIF TOSLINK Input |
2 |
| S/PDIF Coaxial Input |
1 |
| Asynchronous USB Input |
USB Type B conforming to USB Audio Class 1 or USB Audio Class 2 (user selectable) |
| Bluetooth |
5.0 aptX HD |
| HDMI ARC Input |
1 (eARC compatible) |
| Preamp Output |
RCA pre-out |
| Headphone Output |
Yes |
| Subwoofer Output |
1 x RCA |
| Speaker Outputs |
Yes |
| S/PDIF TOSLink Optical |
TOSLINK: 16/24-bit 32-96kHz |
| S/PDIF Coaxial |
Coax SPDIF: 16/24-bit 32-192kHz |
| HDMI eARC |
PCM up to 24bit/192kHz |
| USB Audio |
USB Audio Class 1: Up to 24-bit 96kHz (asynchronous) | USB Audio Class 2: Up to 24-bit 384kHz (asynchronous) and up to DSD-256 |
| Bluetooth |
5.0 A2DP/AVRCP supporting SBC, aptX and aptX HD codecs |
| RS232 Control |
Yes |
| THD (Unweighted) |
<0.002% 1kHz at 80% of rated power (8 Ohms) | <0.02% 20Hz – 20kHz at 80% of rated power |
| S/N Ratio (REF 1W) |
>91 dB |
| Crosstalk @1kHz |
>90 |
| Input Sensitivity |
Input A2-A4 (unbalanced) 395mV RMS |
| Input Impedances |
Input A1 (balanced) 100 kOhm Input A2-A4 (unbalanced) 45 kOhm |
| Power Amp Damping Factor |
>160 at 1kHz |
| Subwoofer Output |
1 x RCA |
| Max Power Consumption |
1200w |
| Standby Power Consumption |
<0.5W |
| Dimensions (W x H x D) |
115 x 430 x 341mm (4.5 x 16.9 x 13.4”) |
| Weight |
12.8kg (28.2Lbs) |
| In the box |
Power cords, Remote control, Welcome letter, Registration Card, Safety guide |
