Front- and rear loudspeakers
Our front loudspeakers come in the form of columns or compact satellites, turn the room into a stage and guarantee a broad range of sound. The rear loudspeakers in satellite format give the sound spatial depth and ensure impressive sound effects.
Large center speaker
The central speakers are the stars of any home cinema system. They transmit up to 70 % of the film and music information and their wide dispersion characteristics provide an optimal sound experience plus outstanding speech intelligibility in all situations.
Powerful active subwoofer
The generously dimensioned subwoofer with its high capacity digital amplifiers and long-throw speaker systems convey the emotion in our movie systems and ensure a solid bass foundation. Thanks to a range of different settings they can be adjusted to suit spatial conditions and personal listening tastes.

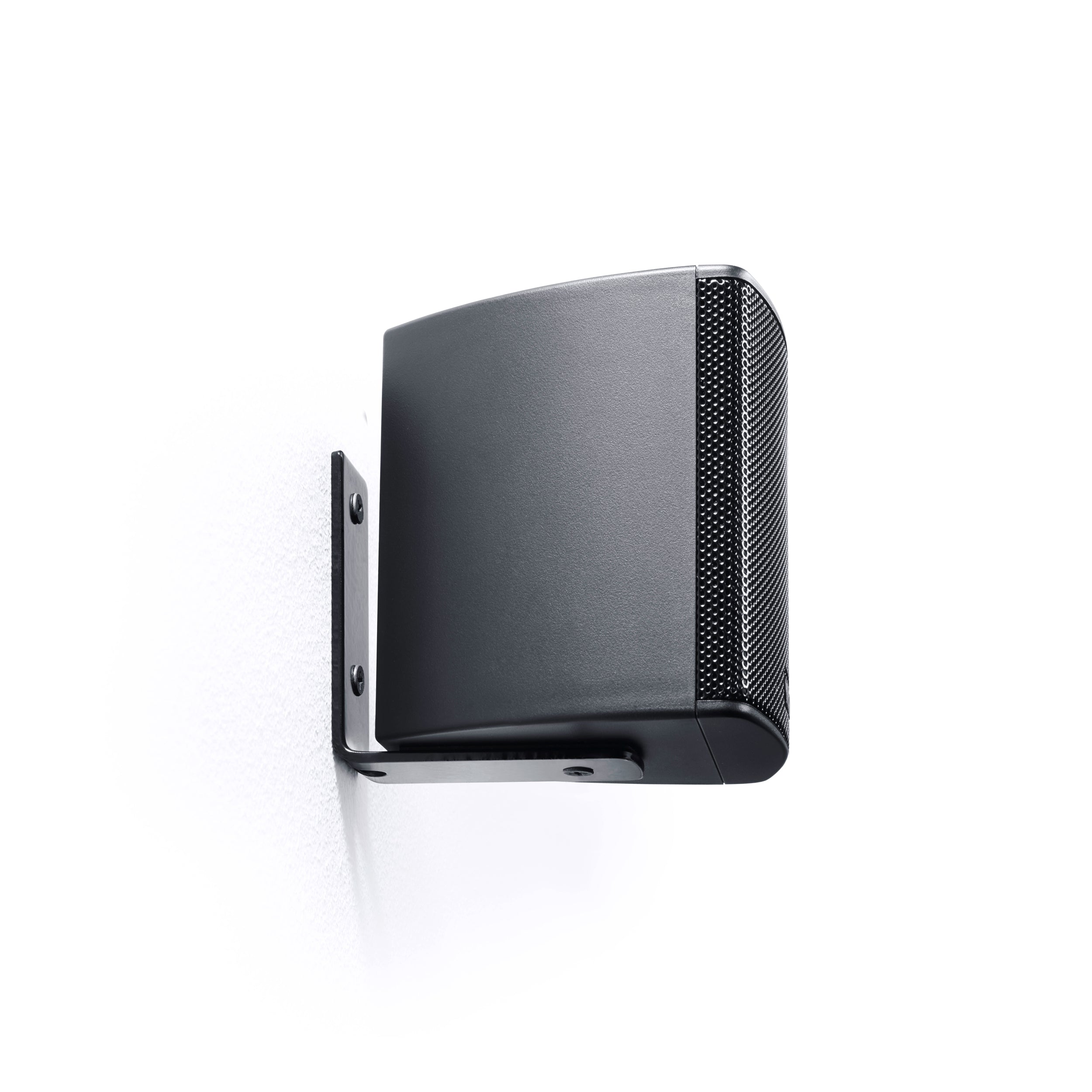

Moviemount
The Moviemount wall mounting supplied makes it easy to mount the satellites securely on the wall.
Technical Specification
- Type - Home-Cinema-System with active subwoofer system
- Engineering Principle - Front: 2-way closed system
Center: 2-way closed system
Surround: 2-way closed system
Subwoofer: Bandpass system
- Nom. / Music Power Handling - Front: 100 watts
Center: 100 watts
Surround: 100 watts
- Musical Output - Subwoofer: 120 watts
- Frequency Response - Front: 120...25.000 Hz
Center: 120...25.000 Hz
Surround: 120...25.000 Hz
Subwoofer: 33...140 Hz
- Crossover Frequency - Front: 5.000 Hz
Center: 5.000 Hz
Surround: 5.000 Hz
Subwoofer: 80...140 Hz (adjustable)
- Woofer - Front: 1 x 80 mm (3.2''), Aluminum
Center: 2 x 80 mm (3.2''), Aluminum
Surround: 1 x 80 mm (3.2''), Aluminum
Subwoofer: 1 x 200 mm (8''), Aluminum
- Tweeter - Front: 1 x 15 mm (1''), aluminum
Center: 1 x 15 mm (1''), aluminum
Surround: 1 x 15 mm (1''), aluminum
- Nominal Impendance - 4…8 ohms
- Dimensions (WxHxD) - Front: 8.9 x 11.6 x 10.6 cm (3.5 x 4.6 x 4.2)
Center: 19.6 x 8.9 x 10.6 cm (7.7 x 3.5 x 4.2)
Surround: 8.9 x 11.6 x 10.6 cm (3.5 x 4.6 x 4.2)
Subwoofer: 24 x 41 x 42 cm (9.5 x 15.9 x 16.7)
- Weight - Front: 0.8 kg
Center: 1.4 kg
Surround: 0.8 kg
Subwoofer: 9.8 kg
- Power Consumption - 0.42 watt
- Weight (Overall) - 17kg
