CUTTING-EDGE TECH FOR NEXT-GEN PERFORMANCEThe Chord Hugo 2 features next-gen performance in terms of sound all thanks to its FPGA and WTA (Watts Transient Aligned) filters. It offers 49,152 taps. It can be used at home in a conventional audio system or on-the-move using the 7-hour battery life. You get 2 modes of automatic charging with its dedicated Micro USB charging port.

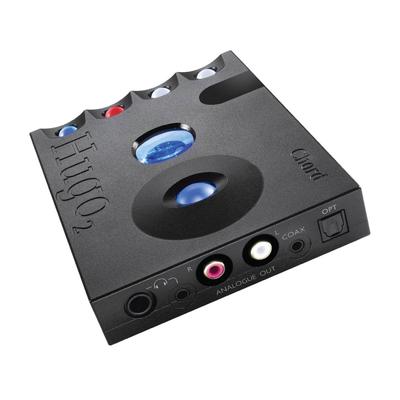

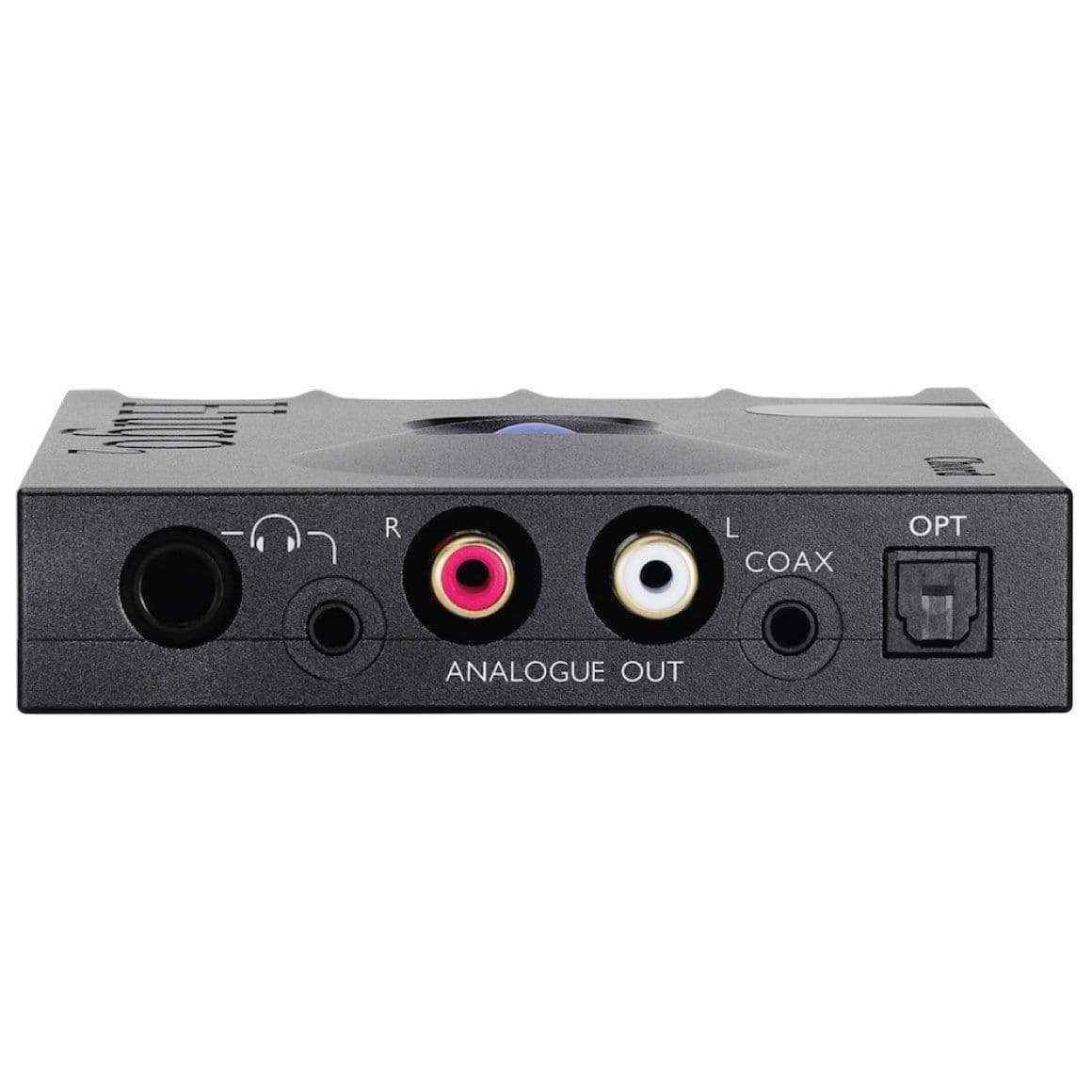

MULTIPLE CONNECTIVITY OPTIONSYou can connect the Hugo 2 to multiple devices with the optical, coaxial and HD USB inputs. The analogue outputs include RCA connectors, 3.5mm jack and 6.35mm headphone outputs. You can also stream audio wirelessly using Bluetooth with Qualcomm aptX. The USB connection supports hi-res file playback up to 768kHz and DSD512 while the remote control adds flexibility to full-sized desktop systems.
Headphone-Zone-Chord-Poly
Headphone-Zone-Chord-PolyHeadphone-Zone-Chord-Poly
Headphone-Zone-Chord-Qutest
CHOOSE BETWEEN DIFFERENT FILTERS & OPERATION MODES
Choose between the 4 frequency-shaping switch filters. You can pick between a warm & soft presentation or a transparent & incisive sound. The Hugo 2 offers three operation modes for headphone-listening. It even retains the popular digital crossfeed function of the original Hugo. The system duplicates the effect of listening to speakers and is based on advanced binaural audio research.
Headphone-Zone-Chord-Hugo-2Headphone-Zone-Chord-Hugo-2Headphone-Zone-Chord-Hugo-2Headphone-Zone-Chord-Hugo-2

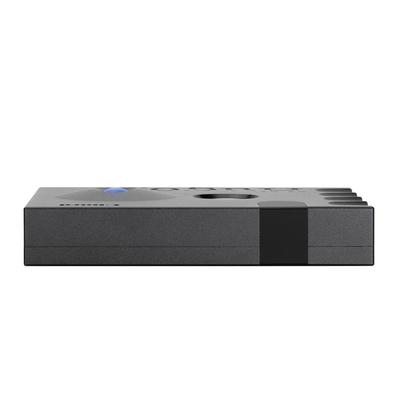

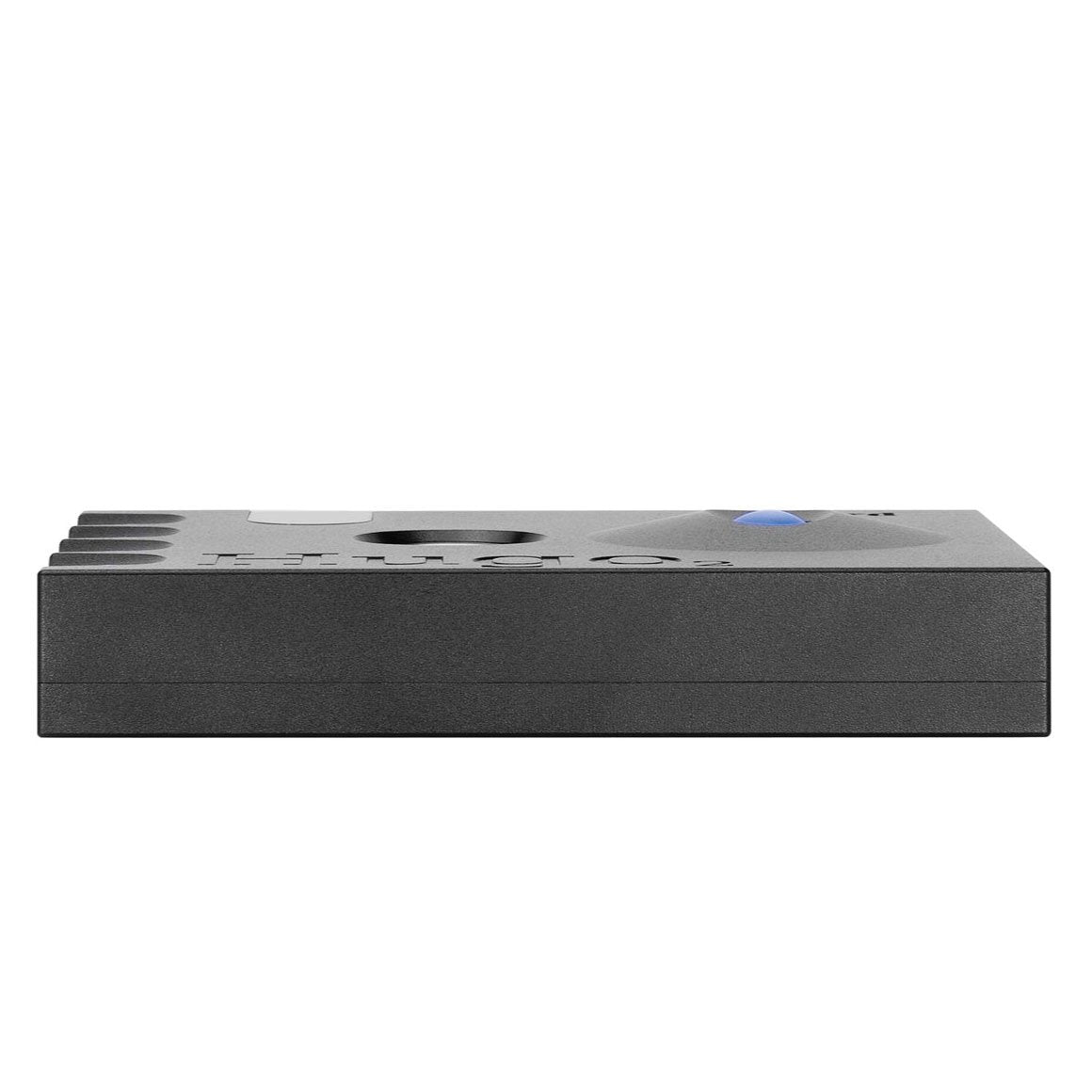

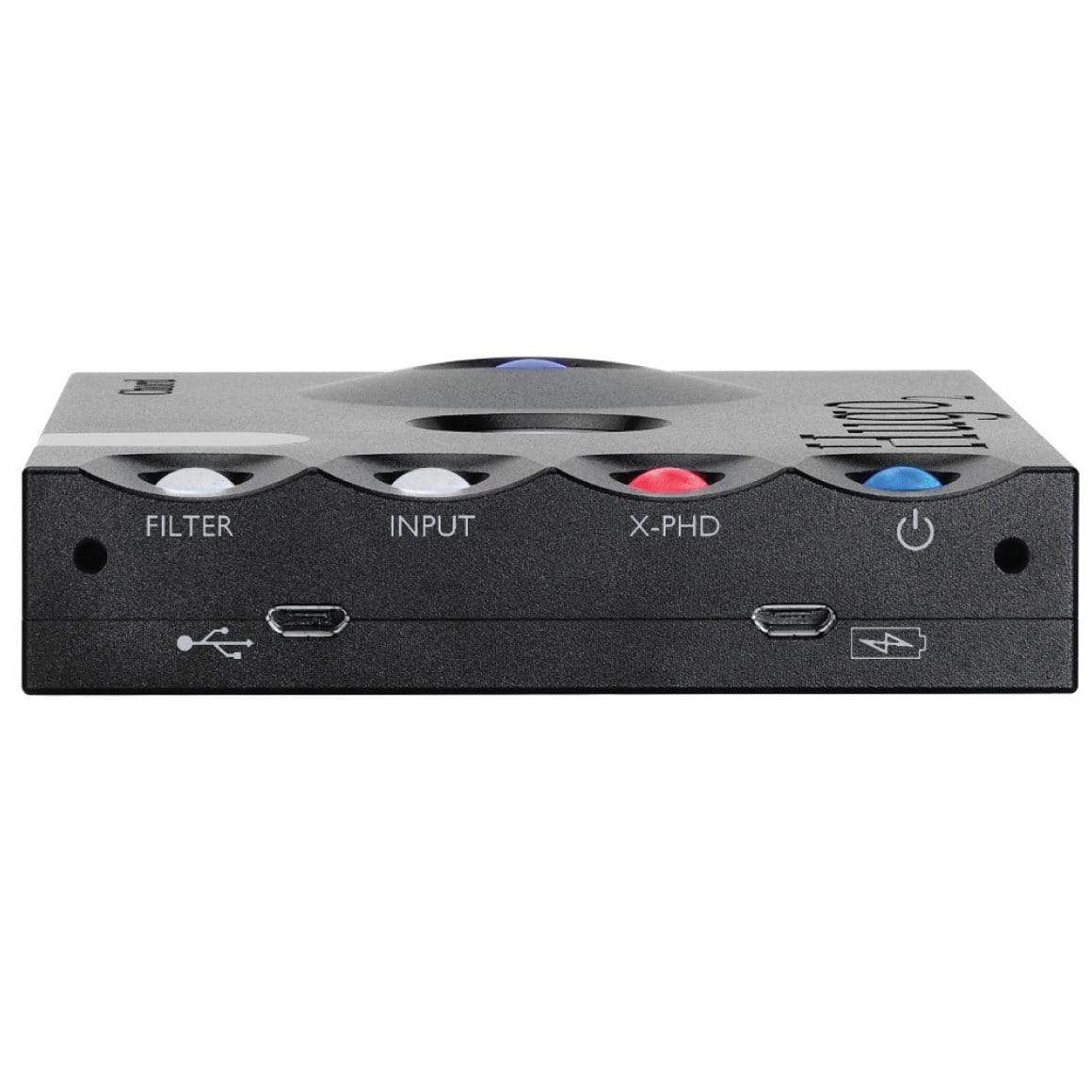

DURABLE ALUMINIUM CHASSIS WITH STYLISH CONTROL BUTTONS

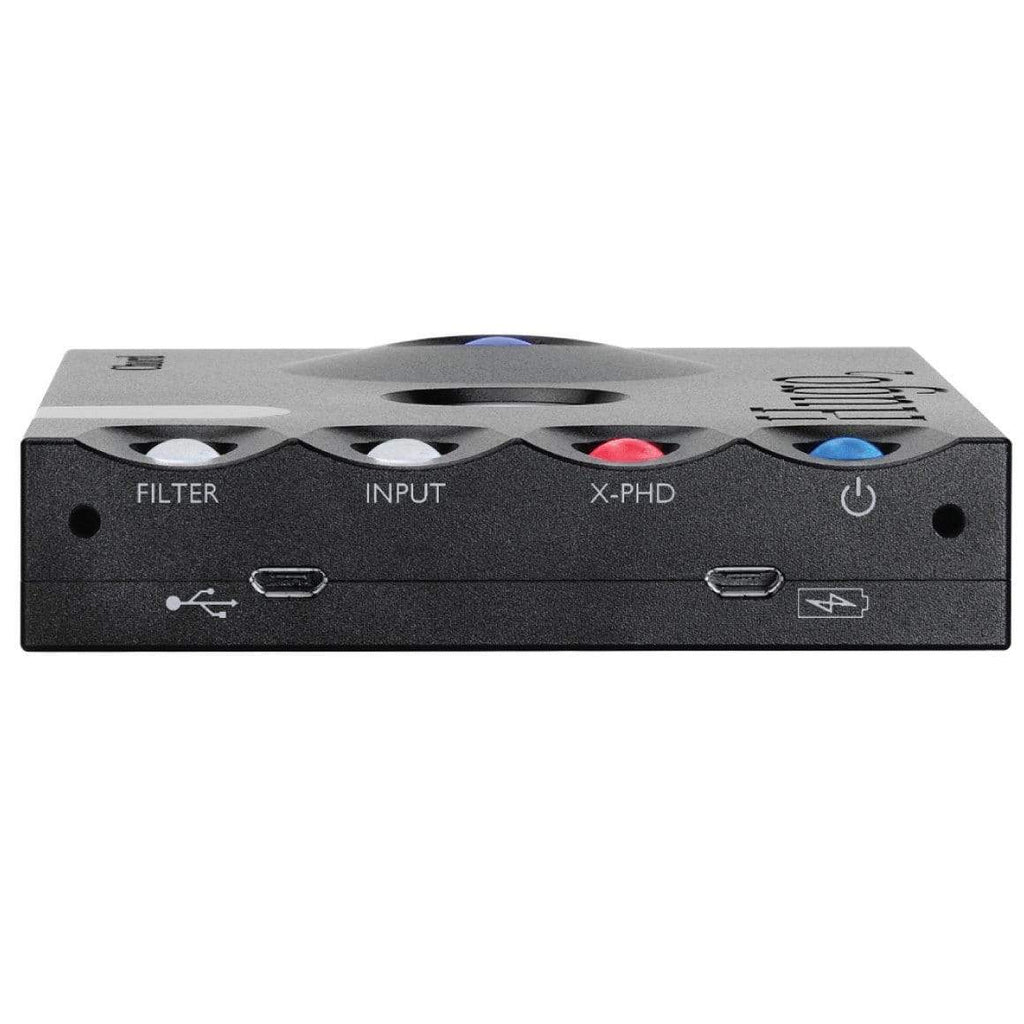

Just like the Chord Mojo, the Hugo 2 can drive headphones up to 800Ω. All its cutting-edge tech is encased in a durable CNC-milled aluminium chassis. It features four spherical control buttons which illuminate in a different colour light to give you information about the power, input, filters and crossfeed functions..
AUDIO SPECIFICATIONS

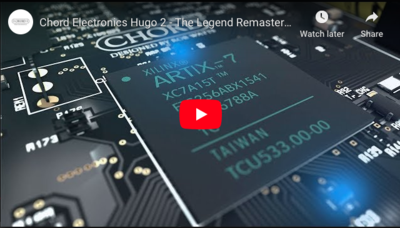

- CHIPSET Chord Electronics Custom Coded Xilinx Artix 7 (XC7A15T) FPGA
- TAPLENGTH 49,152
- PULSE ARRAY 10 Element Pulse Array Design
- FREQUENCY RESPONSE 20Hz – 20kHz +/- 0.2dB
- OUTPUT STAGE Class A
- OUTPUT IMPEDANCE 0.025Ω
- THD <0.0001% 1kHz 3v RMS 300Ω
- THD AND NOISE @ 3V RMS 120dB At 1kHz 300ohms ‘A’ Wighted (Reference 5.3v)
- NOISE 2.6 UV ‘A’ WEIGHTED No Measurable Noise Floor Modulation
- SNR 126dB ‘A’ Weighted
- CHANNEL SEPERATION 135dB At 1kHz 300Ω
- POWER OUTPUT @ 1KHZ 1% THD 94mW 300Ω
- 740mW 32Ω
- 1050mW 8Ω

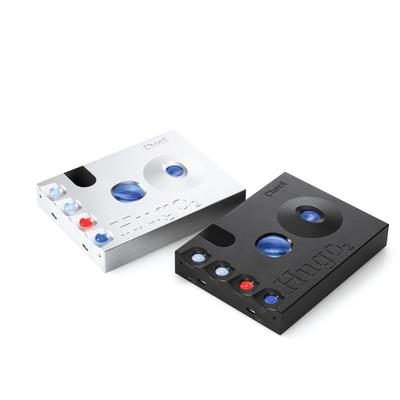

- MATERIAL Clamshell Precision Machined Aluminium Casing With Polycarbonate Buttons, Acrylic Signal Window, And Glass Viewing Portal. Available In A Choice Of Two Colours – Natural Silver, And Satin Black
- TAP LENGTH FILTERS 49,152 – 10 Element Pulse Array Design
- PLAY TIME 8 Hrs (Avg.Time)
- CHARGING Nominal Six (6) Hours Via Micro USB At 1.8amps (Fast Charge) – Nominal Eight (8) Hours At 1amp (Slow Charge)
- INPUT Micro USB (White): 44.1kHz To 768kHz – 16bit To 32bit
- Coax Via 3.5mm Jack (Red): 44.1kHz To 384kHz – 16bit To 32bit
- Coax Via (Same) 3.5mm Jack (Dual Data Mode: Yellow): 44.1kHz To 768kHz – 16bit To 32bit
- Optical (Green): 44.1kHz To 96kHz – 16bit To 24bit
- INPUT (WIRELESS) Bluetooth (Apt X) (Blue): 44.1kHz To 48kHz – 16bit
- OUTPUT 1x ¼” Jack Headphone Output
- 1x 3.5mm Jack Headphone Output
- 1x Stereo (L & R) RCA Output
- PCM SUPPORT 44.1kHz, 48kHz, 88.2kHz, 96kHz, 176.4kHz, 192kHz, 352.8kHz, 384kHz, 717.6kHz, And 768kHz. 16 – 32bit
- DSD SUPPORT Native Playback Supported. DSD64 (Single) To DSD512 (Octa-DSD)
- VOLUME CONTROL Digital, Activated In 1dB Increments. Last Known State Saved Upon Shutdown, With Exception Of Line-Level Mode
- LINE-LEVEL MODE Activated Via Dual Press Of Middle ‘Source’ And ‘Crossfeed’ Buttons. Line Level = 3v Via All Outputs. Reset By Power Cycle
- POWER SAVING MODE Auto-Shutdown After Ten Minutes Of Input Inactivity
- DRIVER SUPPORT Driverless With Mac OS X And Linux, Driver Required For Windows OS
- DIMENSIONS 2.1cm (H) 10cm (W) 13cm (D)
