| Driver |
12″ forward firing |
| Amplifier Class AB |
850 watts dynamic
350 watts RMS power |
Frequency Response: Overall
Frequency Response: (± 3 dB) |
15 – 250 Hz
26 – 140 Hz |
| Low Pass Crossover |
50 Hz to 180 Hz (12 dB/Octave) |
| Phase |
0 to 180 degrees |
| Cabinet Design |
MDF Closed Box with 52mm / 2” front Baffle |
| Magnet Structure |
Dual ferrite magnet motor |
| Woofer |
12” high excursion double vented basket driver with PP inforced Membrane |
| Voice Coil |
Four Layer 2,5″ / 65mm Voicecoil |

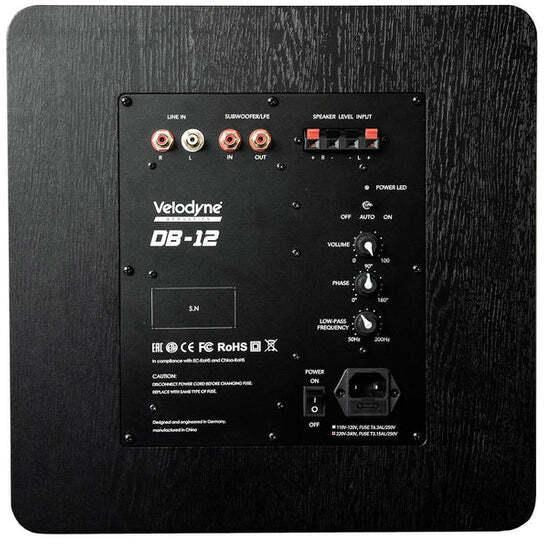

| Input |
GoldPlated Line in Stereo RCA, LFE in, Nickel Plated Highlevel |
| Output |
Gold plated LFE /RCA |
| Power Selector |
Off / Auto / On |
| Finishes |
Black |
| Dimensions (W/H/D) (includes feet and connectors) |
35 x 37 x 38,8 cm |
| Weight (approx) |
13 kg |
| Shipping Weight (approx) |
14,8 kg |
