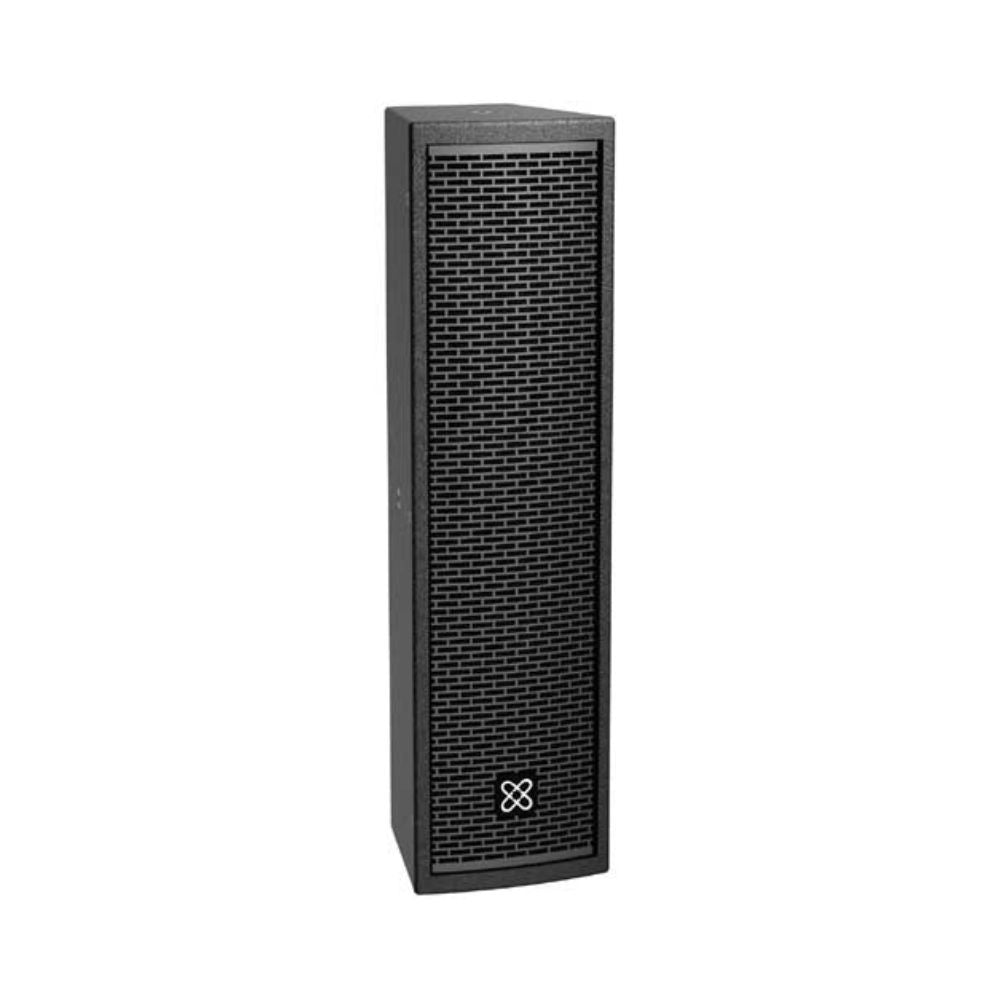

Crest Audio CPL 4L+ Passive Column Array Loudspeaker

Compact, install‑friendly column array speaker — ideal for speech, music playback, or PA systems where space is limited.

The Crest Audio CPL 4L+ is a passive column‑array loudspeaker engineered for clear, balanced audio in tight or discreet spaces: perfect for public address, background music, or live‑sound reinforcement in venues such as houses of worship, restaurants, retail outlets, corporate facilities, or small clubs. Equipped with four 3″ full‑range Neodymium drivers (0.75″ voice coils) in a sealed 12 mm plywood enclosure, CPL 4L+ delivers smooth full‑range sound while maintaining a slender profile. The enclosure includes a heavy‑duty steel grille with acoustic‑foam backing and a textured polyurea finish — robust enough for permanent installations or portable rigs. Connectivity is available via dual 4‑pin twist‑lock connectors or a 4‑pin Euroblock (with 2+/2– loop‑through), and the unit includes 7 M8‑threaded suspension points for flexible mounting (top, bottom, sides, and rear).

Key Features

• Four 3″ full‑range Neodymium drivers: Provides smooth, balanced sound with non‑fatiguing midrange — excellent for speech and music.
• Compact column array form factor: Slender, unobtrusive profile ideal for installations with limited space or aesthetic constraints.
• Continuous power handling: 120 W (8 Ω): Suitable for regular PA, background music, and speech applications.
• Nominal impedance 8 Ω — easy daisy‑chaining: Simplifies wiring when using multiple speakers.
• Coverage pattern 90° horizontal × 25° vertical: Wide horizontal dispersion, focused vertical projection — useful in venues to control sound spread and reduce reflections.
• Flexible mounting options: 7 × M8 suspension points (top, bottom, sides, rear) for wall/ceiling mounting or installation rigs.
• Dual connection options: 2 × 4‑pin twist‑lock or 4‑pin Euroblock connectors with loop‑through (2+/2–) for easy chaining of multiple units.
• Durable build quality: 12 mm plywood cabinet, sealed‑box design, steel grille with acoustic foam and textured polyurea finish — built to last in fixed installations or portable use.
• Discrete aesthetic & finish options: Available in Black or White — blends seamlessly in modern interiors or venues.

Technical Specifications

Best For

• Public‑address systems, houses of worship, corporate auditoriums, schools, and meeting rooms where discreet installation & clear speech/music is needed.
• Clubs, bars, restaurants, retail outlets needing music playback or background audio in limited spaces.
• Portable PA setups or live‑sound reinforcement when a slim, column‑style speaker is preferred over bulky cabinets.
• Situations requiring multiple speakers chained together (e.g. distributed sound in corridors, halls, or multi‑room setups) thanks to easy 8 Ω wiring and loop‑through connectors.
• Installations where aesthetic integration matters — black or white finish with slim profile fits modern interiors.
