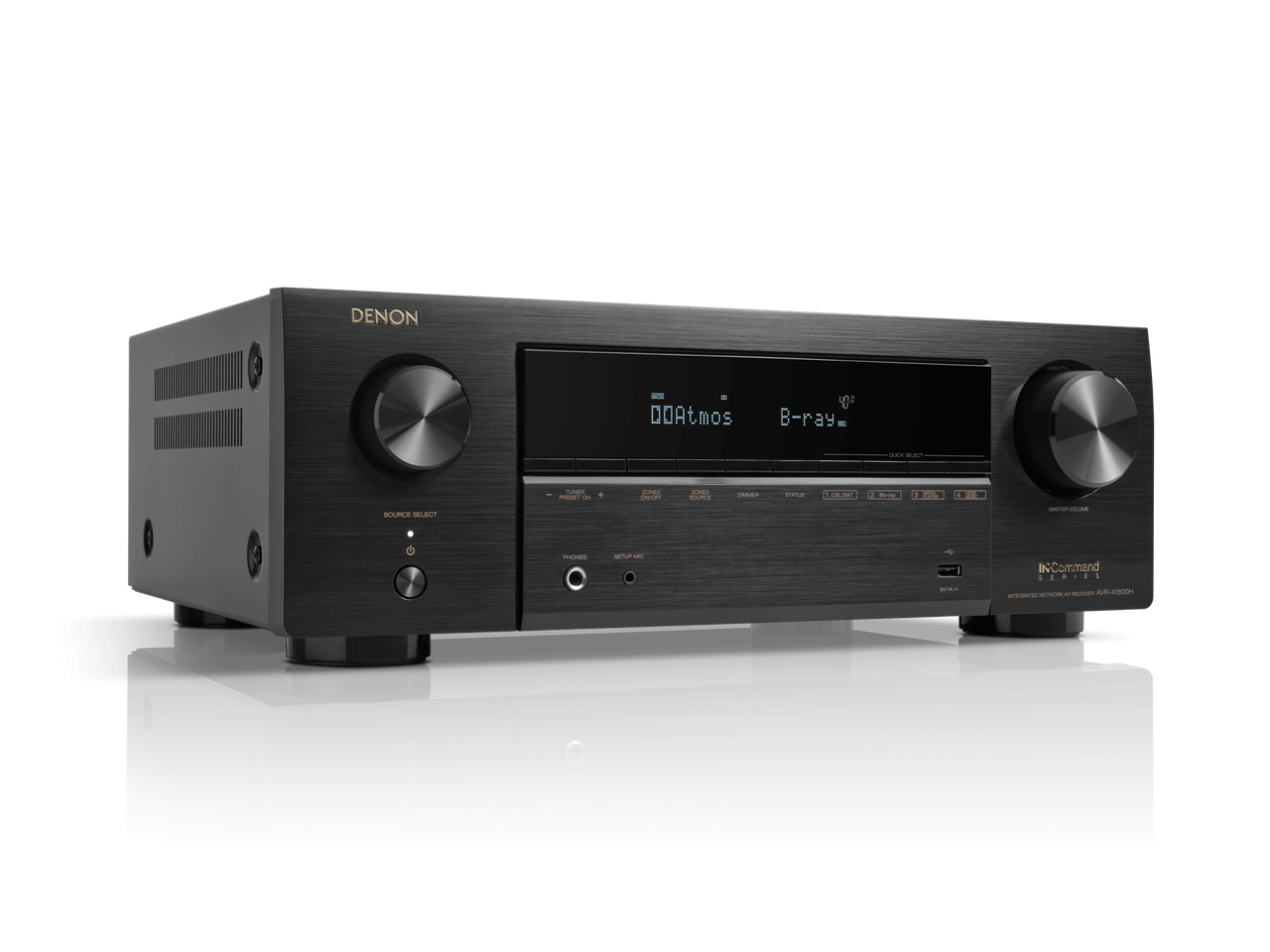

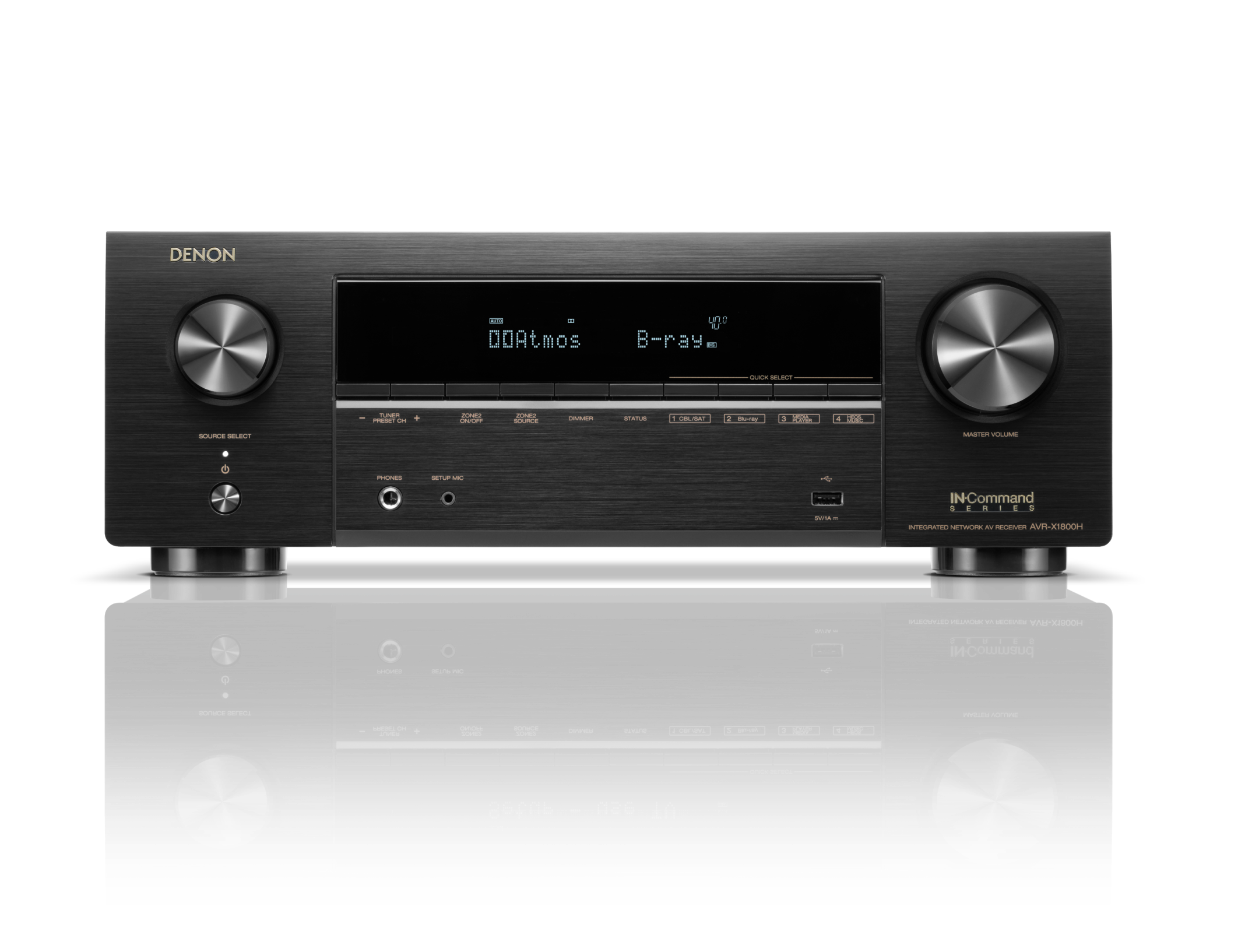

Denon AVR-X1800H – 7.2-Channel 8K AV Receiver with HEOS® Built-in
The Denon AVR-X1800H is a 7.2-channel network AV receiver designed for immersive home cinema, music streaming and next-generation gaming. Delivering 80W per channel into 8Ω, it combines seven discrete high-current power amplifiers with Dolby Atmos®, DTS:X®, 8K HDMI connectivity, HEOS® Built-in, Audyssey MultEQ XT room correction and extensive wireless streaming. It can power a conventional 7.2-channel system or a 5.2.2 Dolby Atmos configuration with dedicated height speakers.
Key Features
-
7.2-Channel Discrete Amplification: Seven discrete high-current amplifier channels provide stable and dynamic performance across the entire surround system.
-
80W per Channel: Rated at 80W into 8Ω from 20Hz–20kHz with 0.08% THD and two channels driven.
-
Dolby Atmos®: Supports object-based immersive audio and 5.2.2 speaker configurations with dedicated height channels.
-
DTS:X®: Delivers immersive multidimensional audio for compatible movies, music and games.
-
Height Virtualization: Dolby Atmos Height Virtualization and DTS Virtual:X can create an enhanced immersive effect without dedicated height speakers.
-
6 HDMI Inputs: Provides extensive connectivity for Blu-ray players, streaming devices, game consoles and other HDMI sources.
-
3 × 8K HDMI Inputs: Three HDMI inputs support up to 8K/60Hz and 4K/120Hz video signals.
-
Advanced HDR: Supports HDR10, HDR10+, Dolby Vision, HLG and Dynamic HDR.
-
Gaming Features: VRR, ALLM and QFT support smoother gameplay with compatible consoles, PCs and displays.
-
eARC: Enables compatible lossless and immersive audio formats to return from a television through HDMI.
-
HEOS® Built-in: Provides network music streaming and wireless multi-room integration with compatible HEOS products.
-
Wi-Fi, Bluetooth & AirPlay 2: Offers flexible wireless playback from compatible smartphones, tablets and computers.
-
Bluetooth Re-Transmit: Audio can be transmitted from the receiver to compatible Bluetooth headphones with volume control.
-
Audyssey MultEQ XT: Uses the supplied calibration microphone to analyse the speakers and listening environment and optimise playback.
-
MM Phono Input: Allows direct connection of a turntable equipped with a Moving Magnet cartridge.
-
High-Resolution Audio: Supports FLAC, WAV and ALAC up to 192kHz/24-bit and DSD up to 5.6MHz.
-
Zone 2: Assignable amplifier channels allow a separate stereo listening area to be powered when using a compatible main-zone configuration.
Amplifier Specifications
| Product Type |
7.2-Channel Network AV Receiver |
| Number of Power Amplifiers |
7 |
| Maximum Processing Channels |
7.1 |
| Power Output – 8Ω |
80W + 80W (20Hz–20kHz, 0.08% THD, 2 Channels Driven) |
| Power Output – 6Ω |
120W + 120W (1kHz, 0.7% THD, 2 Channels Driven) |
| Maximum Output – 6Ω |
145W (1kHz, 1 Channel Driven) |
| Amplifier Design |
Discrete High-Current Power Amplification |
| Speaker Impedance |
4Ω – 16Ω |
| Frequency Response |
10Hz – 100kHz (+1 / -3dB, Direct Mode) |
| Signal-to-Noise Ratio |
98dB (IHF-A, Direct Mode) |
| Speaker Terminals |
7 |
| Bi-Amp Assignment |
Yes |
| Front Speaker B |
Yes |
| Zone 2 Speaker Assignment |
Yes |
| Pure Direct |
Yes |
Surround & Immersive Audio
| Dolby Atmos® |
Yes |
| Dolby TrueHD |
Yes |
| Dolby Surround |
Yes |
| Dolby Atmos Height Virtualization |
Yes |
| Dolby Atmos Music |
Yes |
| DTS:X® |
Yes |
| DTS-HD Master Audio |
Yes |
| DTS Neural:X |
Yes |
| DTS Virtual:X |
Yes |
| DTS:X Pro |
No |
| Multichannel Stereo |
Yes |
| Maximum Atmos Configuration |
5.2.2 |
Room Correction & Speaker Setup
| Room Correction |
Audyssey MultEQ XT |
| Audyssey Dynamic EQ |
Yes |
| Audyssey Dynamic Volume |
Yes |
| Automatic Speaker Calibration |
Yes – Supplied Measurement Microphone |
| Speaker Level Adjustment |
Automatic / Manual |
| Speaker Distance Adjustment |
Automatic / Manual |
| Variable Crossover |
Yes |
| Optimized Bass Redirection |
Yes |
| Subwoofer Outputs |
2 |
HDMI & Video Specifications
| HDMI Inputs |
6 Rear |
| 8K-Capable HDMI Inputs |
3 |
| HDMI Outputs |
1 |
| Maximum 8K Resolution |
8K / 60Hz |
| Maximum 4K Frame Rate |
4K / 120Hz |
| 8K Pass-Through |
Yes |
| HDMI Upscaling |
Up to 8K / 60Hz |
| eARC / ARC |
Yes |
| HDCP |
HDCP 2.3 |
| HDR10 |
Yes |
| HDR10+ |
Yes |
| Dolby Vision |
Yes |
| HLG |
Yes |
| Dynamic HDR |
Yes |
| Variable Refresh Rate (VRR) |
Yes |
| Auto Low Latency Mode (ALLM) |
Yes |
| Quick Frame Transport (QFT) |
Yes |
| Quick Media Switching (QMS) |
No |
| HDMI CEC |
Yes |
| HDMI Pass-Through in Standby |
Yes |

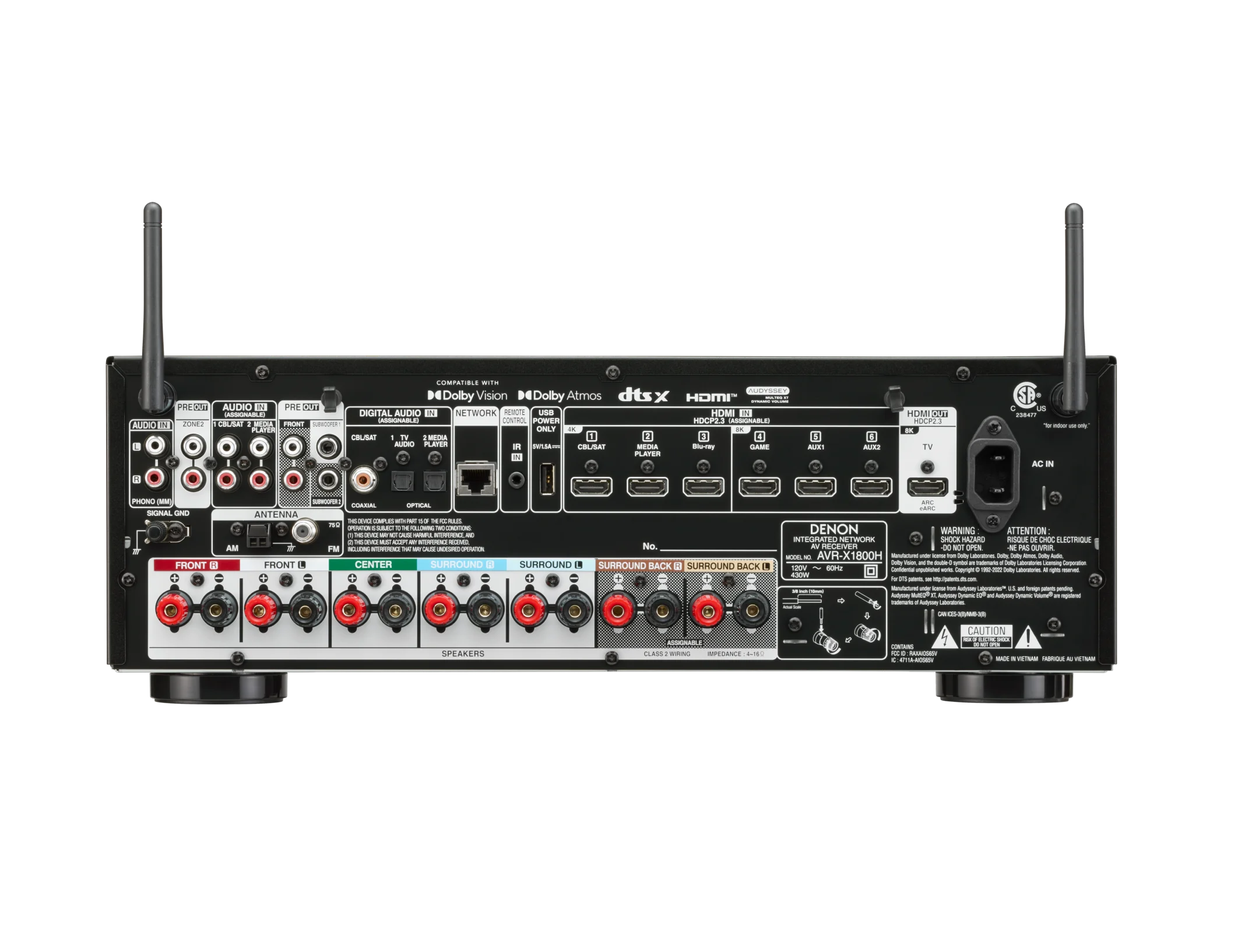

Audio Inputs & Outputs
| Analogue Audio Inputs |
2 × Stereo RCA |
| Phono Input |
1 × MM |
| Phono Input Sensitivity |
2.5mV |
| Phono Signal-to-Noise Ratio |
74dB (IHF-A) |
| Optical Digital Inputs |
2 |
| Coaxial Digital Inputs |
No |
| Subwoofer Pre-Outs |
2 |
| Zone 2 Pre-Out |
No |
| USB Audio Input |
1 × Front USB-A |
| Rear USB Power |
5V / 1.5A |
| Headphone Output |
Yes |
| FM Tuner with RDS |
Yes |
Network & Wireless Streaming
| HEOS® Built-in |
Yes |
| Wi-Fi |
Yes |
| Ethernet |
Yes |
| Bluetooth |
Yes |
| Bluetooth Headphone Re-Transmit |
Yes – With Volume Control |
| AirPlay 2 |
Yes |
| Spotify Connect |
Yes |
| TuneIn Internet Radio |
Yes |
| Media Server / NAS Playback |
Yes |
| Roon Tested |
Yes |
| HEOS App Control |
Yes |
| Denon AVR Remote App |
Yes |
| Voice Control |
Amazon Alexa / Google Assistant / Apple Siri & HomePod |
High-Resolution Audio Support
| FLAC |
Up to 192kHz / 24-bit |
| WAV |
Up to 192kHz / 24-bit |
| ALAC |
Up to 192kHz / 24-bit |
| DSD |
2.8MHz / 5.6MHz |
| MP3 |
Yes |
| WMA |
Yes |
| AAC |
Yes |
| Gapless Playback |
Yes – FLAC / WAV / ALAC / DSD |
Multi-Zone & Control
| Multi-Room Zones |
2 |
| Zone 2 Speaker Output |
Yes – Assignable |
| HEOS Multi-Room |
Yes |
| TV Sound Grouping |
Yes |
| IP Control |
Yes |
| Web Control |
Yes |
| RS-232C |
No |
| Setup Assistant |
Yes |
| Quick Select Plus |
Yes |
| GUI |
1080p High-Definition Graphical User Interface |
| Front Display |
1-Line FLD |
General Specifications
| Brand |
Denon |
| Model |
AVR-X1800H |
| Power Consumption |
440W |
| No-Sound Power Consumption |
ECO On: 29W / ECO Off: 39W |
| Standby Power Consumption |
0.1W |
| CEC Standby Consumption |
0.5W |
| Dimensions – Antennas Horizontal (W × H × D) |
434 × 151 × 339mm |
| Dimensions – Antennas Vertical (W × H × D) |
434 × 215 × 339mm |
| Weight |
8.6kg |
| Remote Control |
RC-1257 |
| Finish |
Black |
System Integration
The AVR-X1800H can operate as a conventional 7.2-channel surround receiver or power a 5.2.2 Dolby Atmos system using two height or Dolby Atmos-enabled speakers. Its assignable amplifier channels also support front-speaker bi-amping, a second Front B speaker pair or powered Zone 2 operation. HDMI sources, an MM turntable, optical digital equipment, USB storage and network streaming services can therefore be integrated into one compact home entertainment system.
