| Rated Output Power (8 ohm) |
80W + 80W (20 Hz - 20 kHz, THD 0.07%) |
| Rated Output Power (4 ohm) |
160W + 160W (1 kHz, THD 0.7%) |
| Total Harmonic Distortion |
0.01% (Rated output: -3 dB, 8 ohm, 1 kHz) |
| Phono Input Sensitivity (MM) |
2.5 mV / 47 kohm |
| Phono Input Sensitivity (MC) |
200 μV / 100 ohm |
| CD/LINE/RECORDER Input Sensitivity |
135 mV / 19 kohm |
| Power Amp Input Sensitivity |
0.9V / 47 kohm (EXT. PRE) |
| Signal to Noise Ratio (MM) |
89 dB |
| Signal to Noise Ratio (MC) |
74 dB |
| Signal to Noise Ratio (CD) |
107 dB |
| Power Consumption |
400W |
| Power Consumption at Standby |
0.2W (TV autoplay off), 0.4W (TV autoplay on) |
| Power Amplifier Circuit |
New UHC-MOS Single Push Pull (7) |
| Preamplifier Circuit |
Variable Gain Preamplifier (OP AMP) |
| Bass / Treble / Mid / Balance Control |
Yes / Yes / No / Yes |
| Source Direct |
Yes |
| Analog Amp Mode |
Yes (button on front panel) |
| DAC Circuit |
ES9018K2M × 4 |
| Digital Processing |
Ultra AL32 Processing |
| DAC Master Clock Design |
Yes |
| Asynchronous Mode (USB-B Input) |
Yes |
| Phono Input |
Yes (MM / MC) |

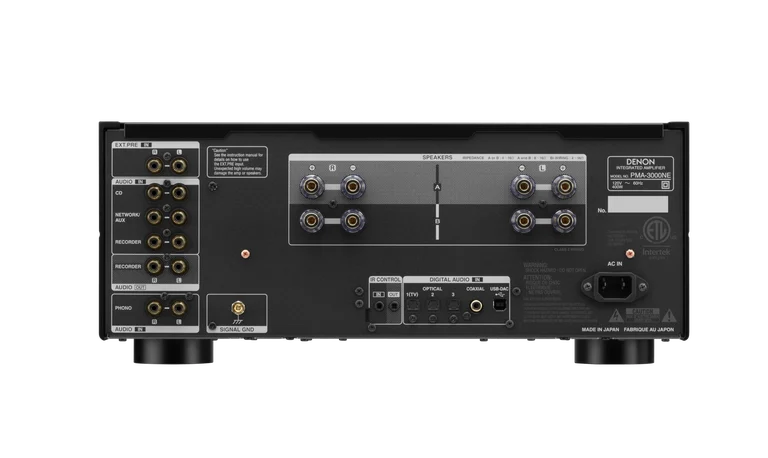

| Analog Input / REC Out |
4 / 1 (Gold Plated, Brass Machining type for all CD/PHONO/AUX/RECORDER) |
| Optical Input / Output |
3 / 0 (192 kHz / 24-bit) |
| Coaxial Input / Output |
1 / 0 (192 kHz / 24-bit) |
| Speaker Terminal |
AVR-A1H type Gold Plated w/Cover |
| Headphone Output |
1 (Turns off the speaker automatically when headphone is inserted) |
| Remote Control |
Yes |
| Remote Control Bus Terminal |
Yes (mini) |
| Wi-Fi |
No |
| HEOS |
No |
| USB B (USB DAC) |
1 (Rear) |
| PCM Sample Rate / Resolution |
~384 kHz / 32-bit |
| DSD Audio Streaming |
~11.2 MHz |
