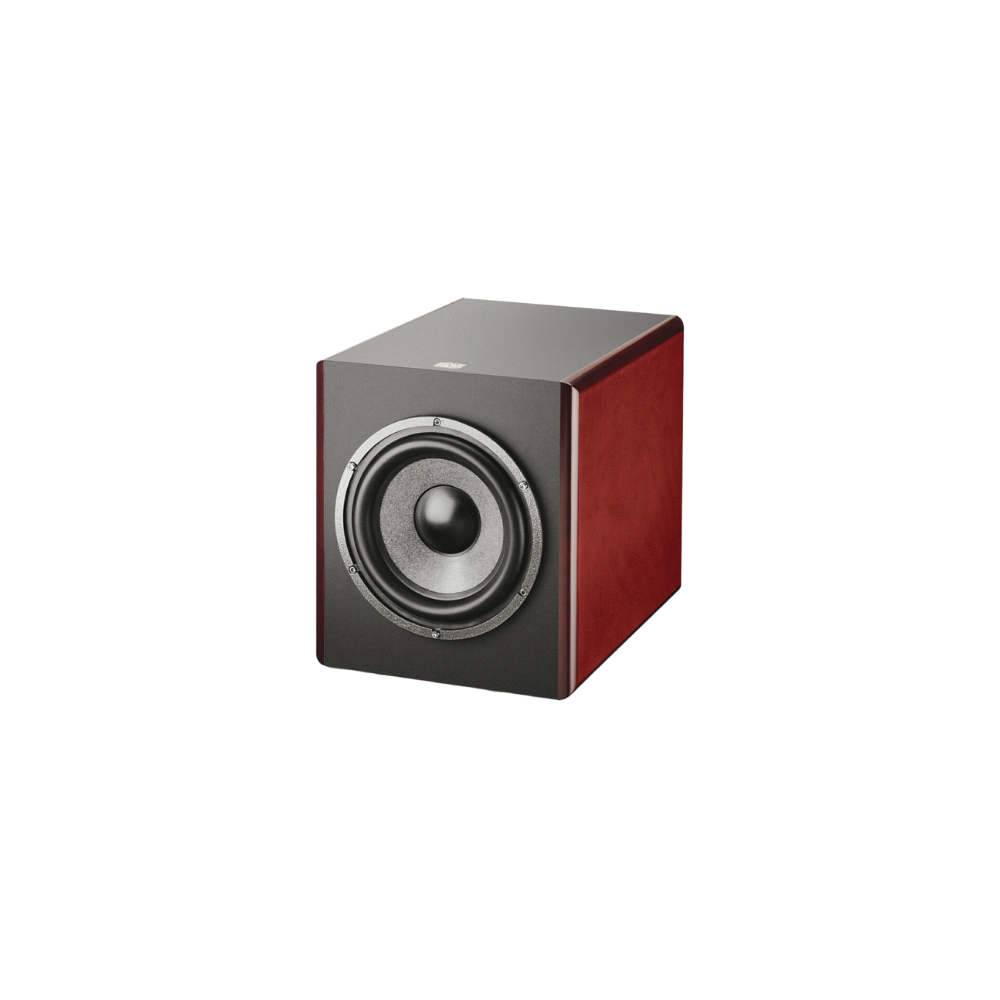

The Sub6 professional subwoofer features an 11" (27 cm) "W" composite sandwich cone driver integrated into a large rear laminar port cabinet. This design guarantees bass linearity whatever the SPL level required. To fine-tune the power level, Focal engineers chose BASH® technology, which offers the sound quality of Class AB with the efficiency of Class D amplifiers.
- Product type : Monitoring grave box
- Loudspeakers :
11'' W membrane
- Frequency response (+/- 3dB) :
30 Hz - 250 Hz
- Maximum SPL (peak@1m) :
116 dB
- Inputs :
• Left,Right,LFE
• XLR: symmetrical 10 kOhms
• Variable
- Mid-range and low frequency amplifier : 350 W, class G
- Indicators and controls :
• Sub level (sensitivity) adjustment
• Lo-passe frequency adjustment
• Phase adjustment
• Polarity switch
• Mute
• 2.1 bypass (controlled by external footswitch)
• Hi-pass frequency selection
• Hi-pass defeat
- Depth : 44 cm / 17.3 in
- Height : 38 cm / 15 in
- Width : 34.4 cm / 13.5 in
- Weight : 23 kg / 50.7 lb
