The gamma series is a revolutionary concept we had been working on for some time now. It allows for infinite shelf adjustment at any level with moderate to high load capacities.

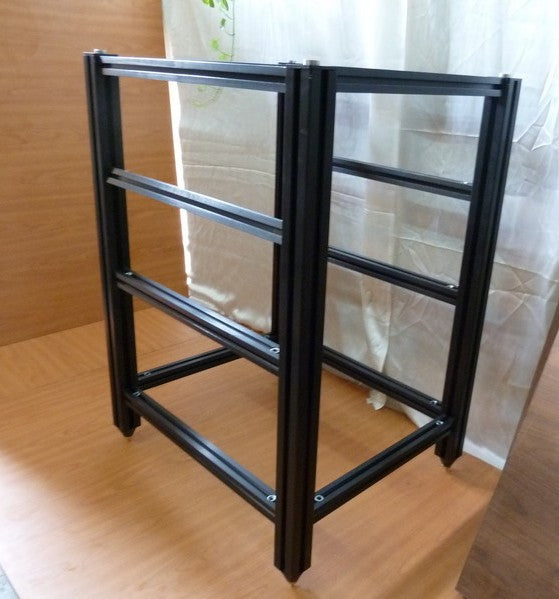

Those of you that are familiar with “T-slot” extruded aluminium recognize the versatility of this system. Much like a child’s erector set, these universal components allow you to design and build a rack having virtually any configuration you can imagine. Aluminium extruded section struts slide into T slotted side pillars and can be locked into any position/level along the length of the side pillars. These struts serve as shelf supports over which any kind of shelving that the user wishes can be placed. Thus making the shelves infinitely height adjustable
Framework is made from pure aircraft grate aluminium billet extrusions offering inert performance with superior structural strength and rigidity. Additionally the framework is designed to reject “sway” which is one of the most important aspects in an audiophile rack
(“sway” is the pendulum motion you get when you push the top shelf of an ill designed rack – ever experienced the movement of a rack where it sways toward the back when pushed and then comes back to equilibrium ? )

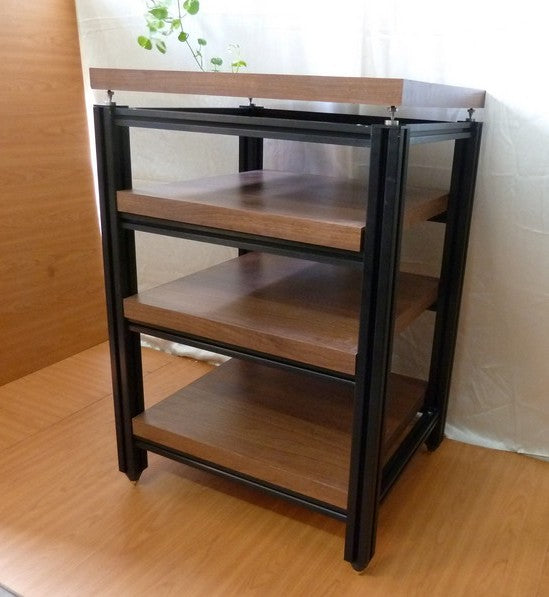

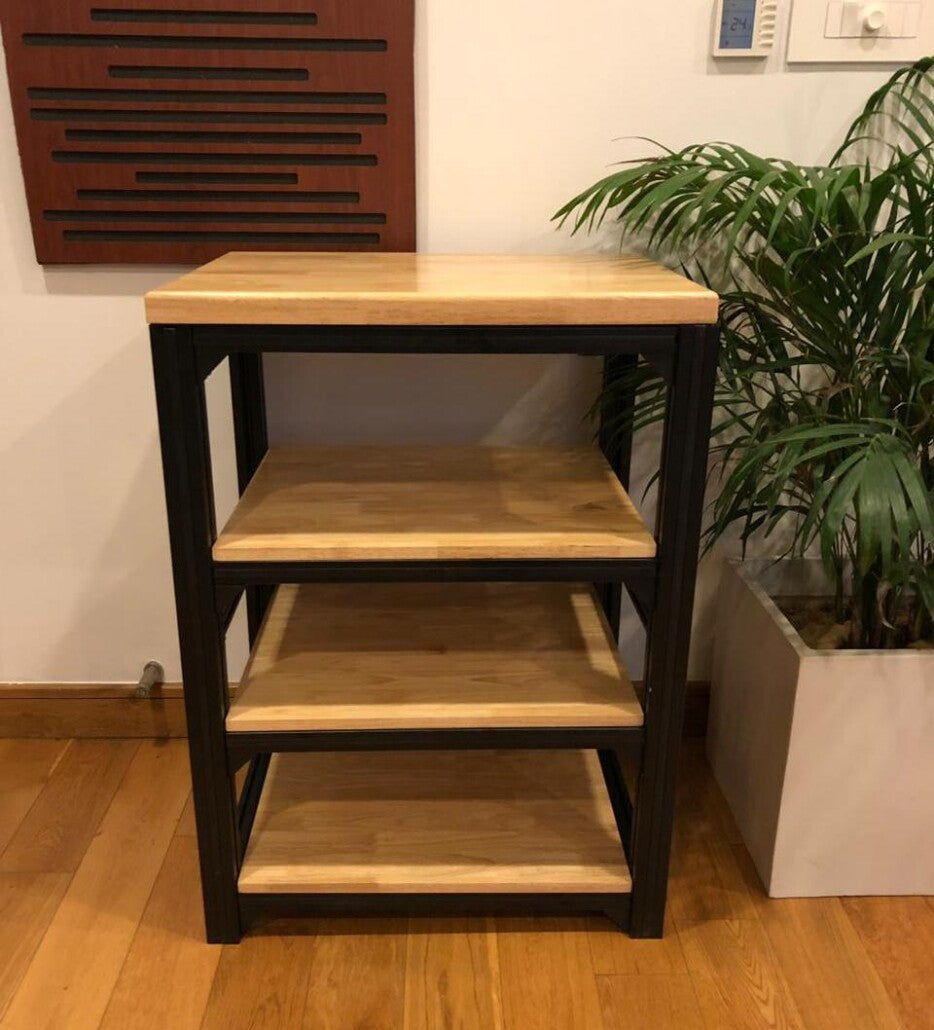

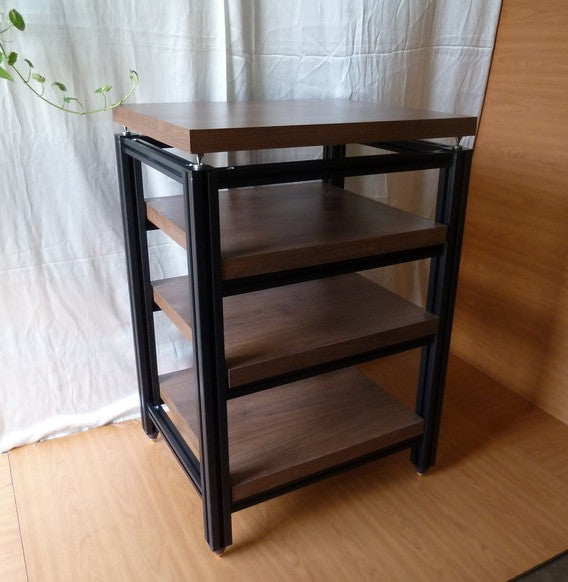

The shelves are 1 inch thick and can either be high density wood fibre with laminate (walnut grain as shown in some pics) or can also be upgraded to pure solid maple wood which is hand buffed and finished off with a matt PU coat
Specification
- Size : 24*18 inch – height customizable However standard height is 35 inches
- Weight 28 kgs.
- Colour : custom – however standard is Black
- Standard shelf spacing
Features
- Rigid Framework using aircraft grade cross braced “ring free” aluminium extrusions for absolute inertness and 0” sway”
- Infinitely adjustable shelf height
- Choice between real wood ( Para wood) and MDF shelving
- Marine grad Stainless Steel Spikes for level and isolation
- Recommended for TT’s
