| General Description
|

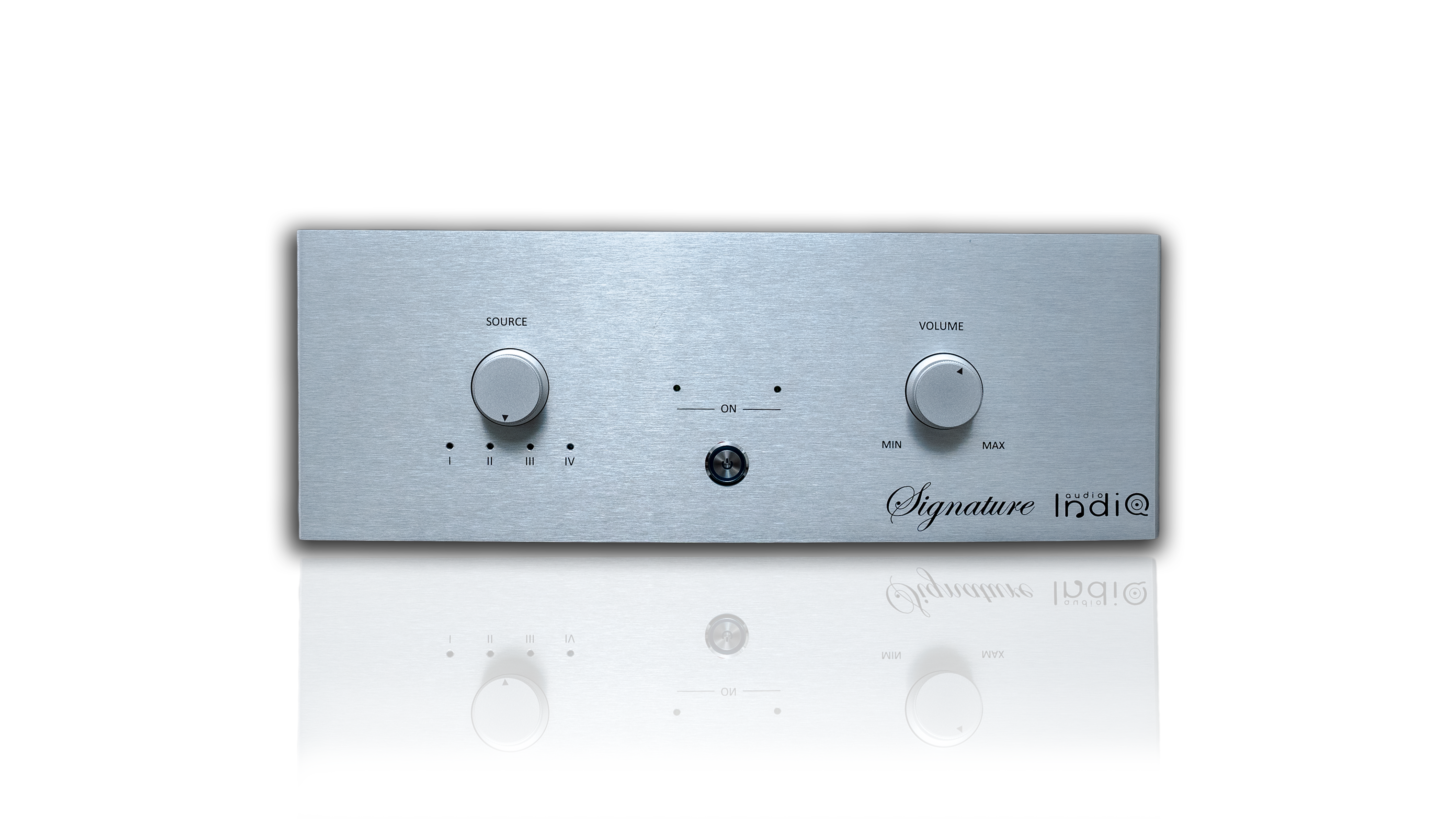

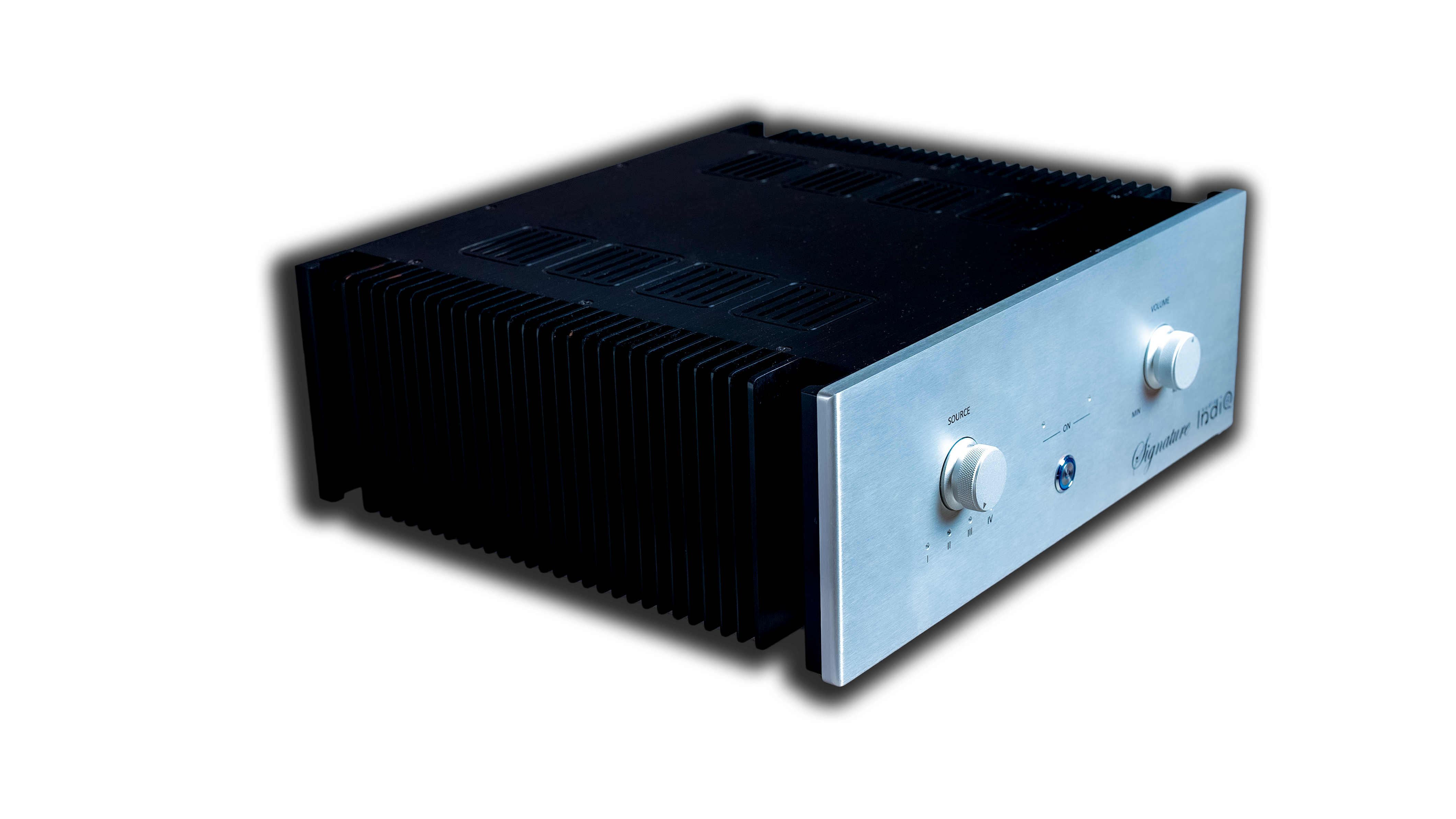

Class A Dual Mono Integrated Amplifier
|
|
Output Power |
20.6 watts @ 8 Ohms / 38 watts @ 4 Ohms per channel
|
| Power Amplifier Classification |
Class A |

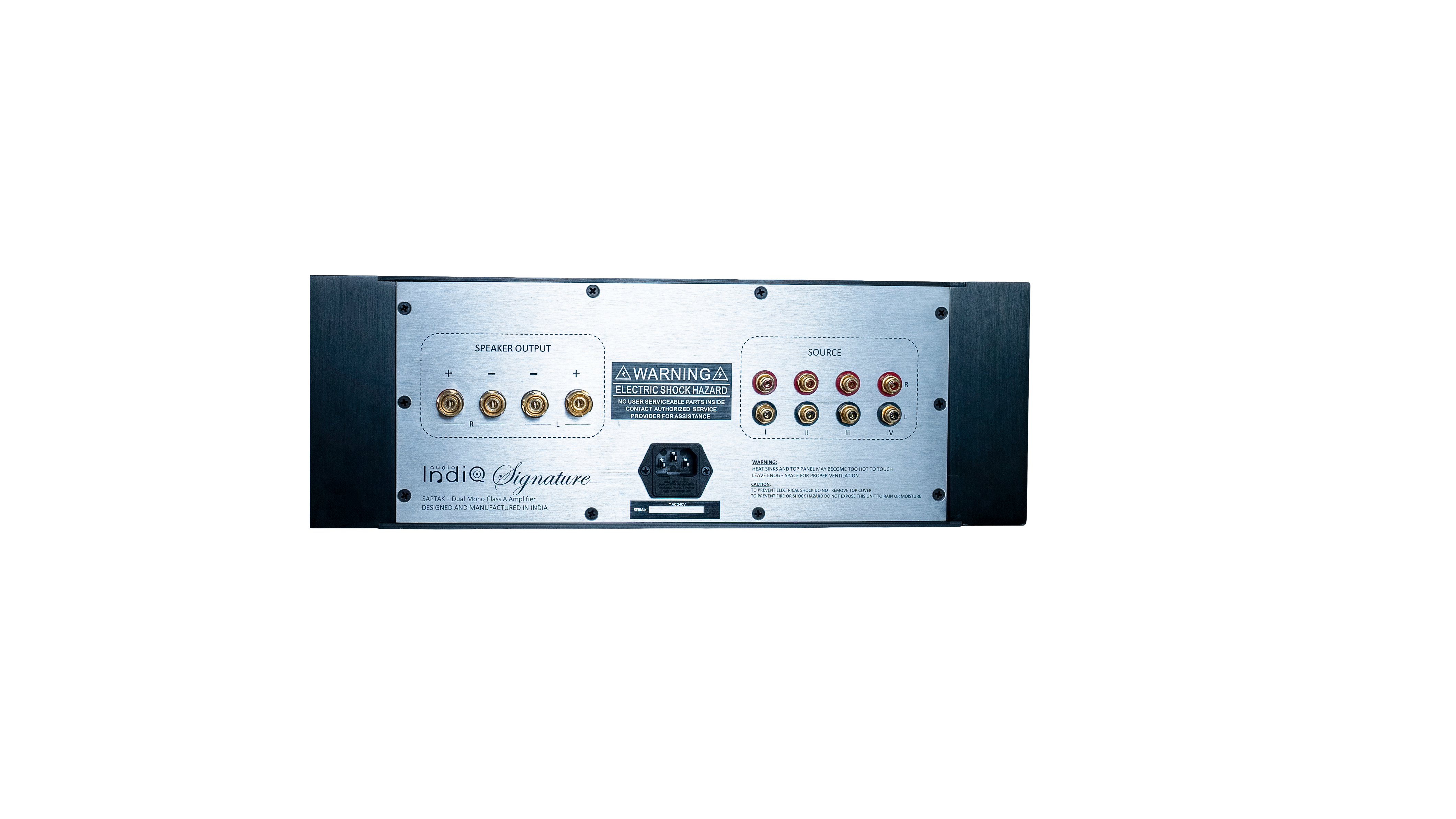

| Inputs |
RCA unbalanced |
| Input Impedance |
Unbalanced 100 kOhm |
| Frequency Response |
Less than +/- 0.2 dB deviation 10 Hz - 50 kHz |
| Distortion |
Less than 0.054% at rated power 8 ohms load |
| Input Sensitivity (Full Power) |
2 V |
| Damping Factor |
More than 100 |
| Power Supply |
300 + 300 VA dual mono; 88,000 + 88,000 uF capacitors |
| Power Consumption |
190 W in standby switched on |
| Additional Features |
Speaker soft start & shutdown, short circuit and DC protection |
| Height (Including rubber feet)
|
6.9’’ (17.5 cm) |
| Width |
16.9” (43.0 cm) |
| Depth |
16” (40.6 cm) |
| Weight |
18 Kg (40 lbs) |
