Features:
The Ultimate 3D sound experience
Upgrade your viewing or gaming experience from ordinary to extraordinary. Built-in Dolby Atmos®, DTS:X™ and four upfiring speakers bounce sound up to the ceiling back down to you for an awesome, true 3D sound experience.
Real surround sound in a second

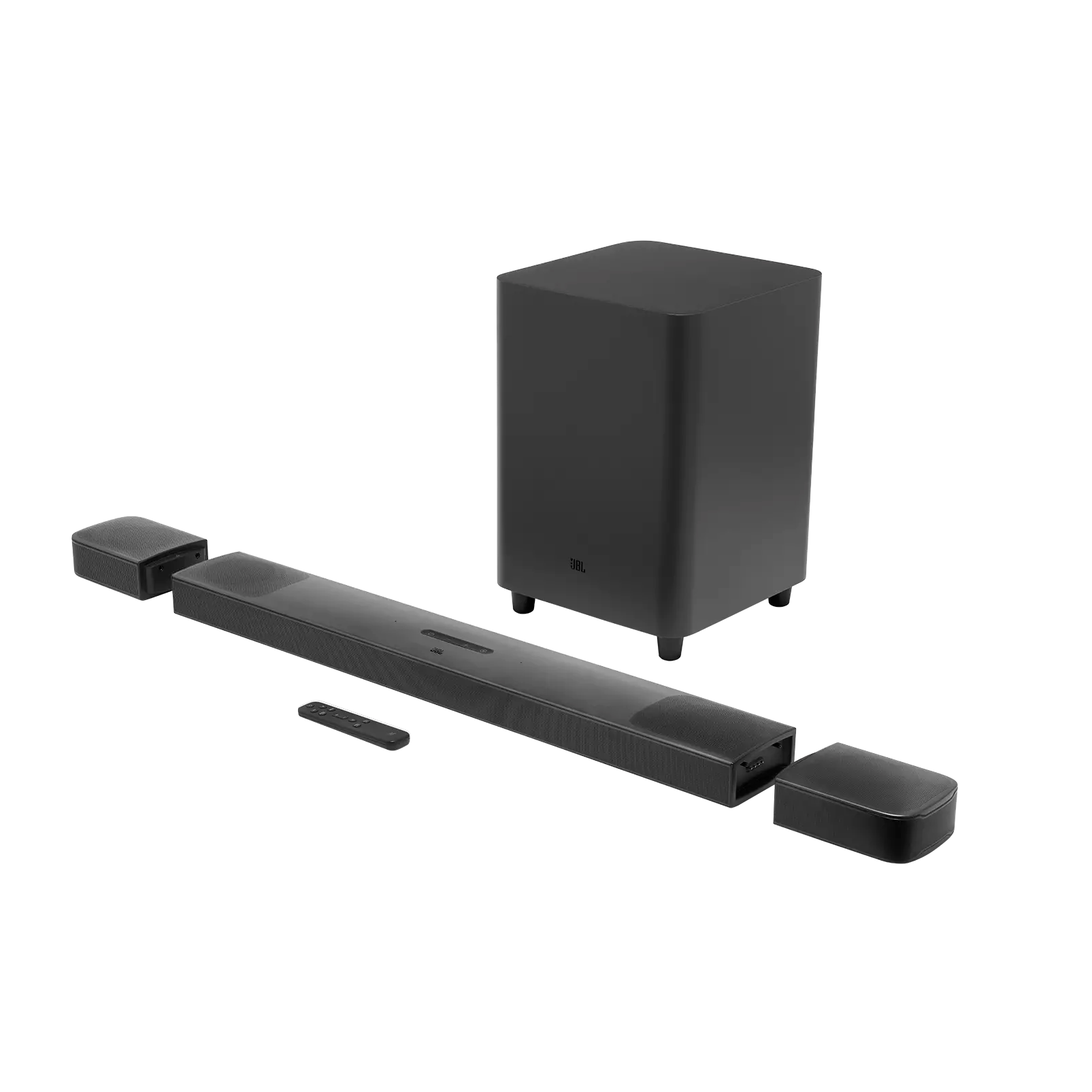

Instantly enjoy a true, cinematic 9.1 surround experience. Simply place the two detachable surround speakers behind you. No extra wires, no extra power connections so no extra hassle.
Detachable speakers that go anywhere

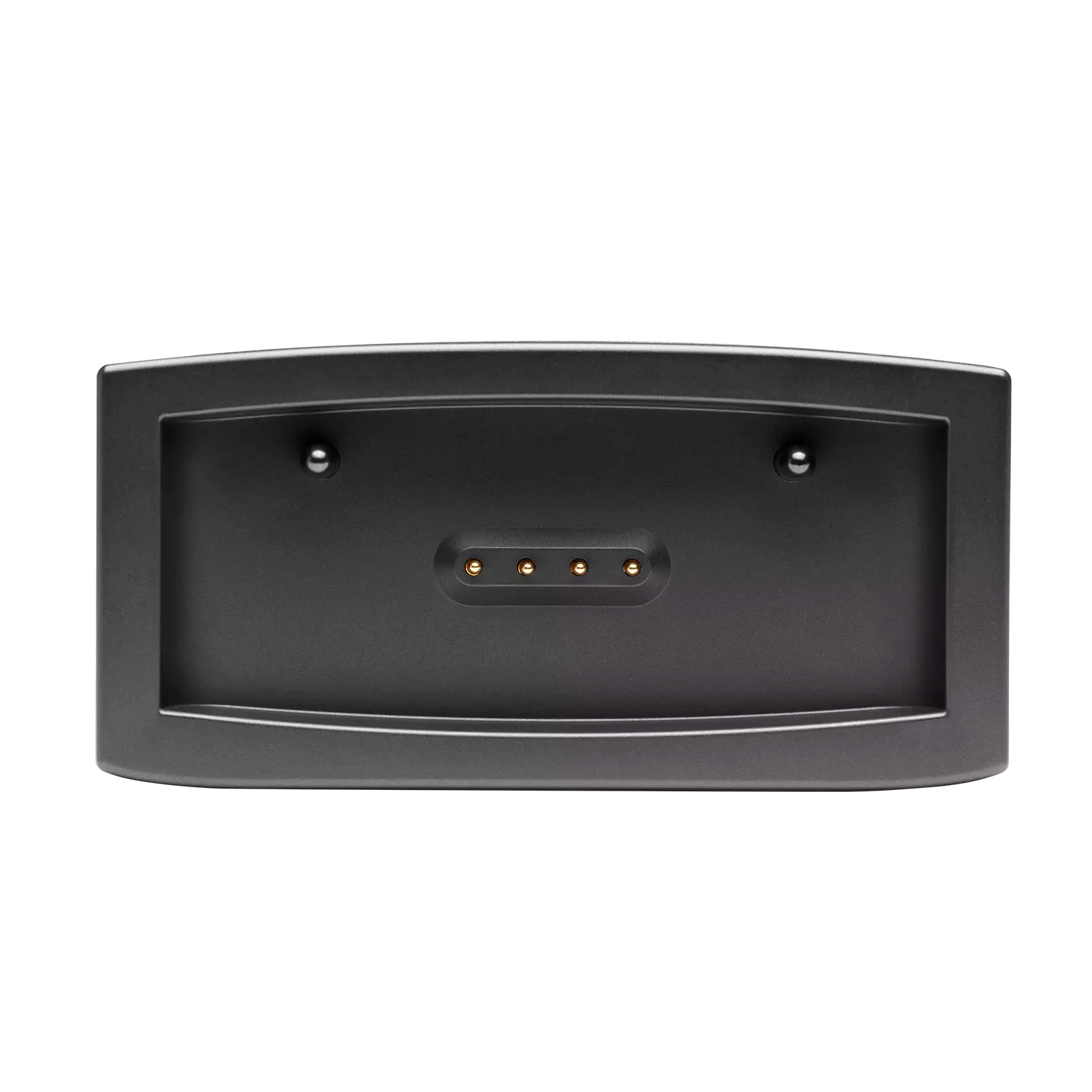

Built-in batteries mean audio freedom. Place the two detachable surround speakers anywhere in your room to enjoy an incredible audio experience. After 10 hours of playback, simply dock them to the soundbar to recharge.
General Specifications:
| 5.1.4 channel
|
Yes |
| Power supply |
100 - 240VAC, ~ 50/60Hz |
| Battery charge time |
3 hours |
| Total speaker power output (Max. @THD 1%) |
820 W |
| Main Soundbar output power (Max. @THD 1%) |
400 |
| Surround speakers output power (Max. @THD 1%); 2 x 60W |
Yes |
| Subwoofer output power (Max. @THD 1%); 300 |
Yes |
| Soundbar transducer |
4×racetrack drivers + 2 × up-firing full-range drivers+3 × 0.75” (20mm) tweeter |
| Surround transducer (per piece) |
up-firing full-range driver + 0.75” (20mm) tweeter |

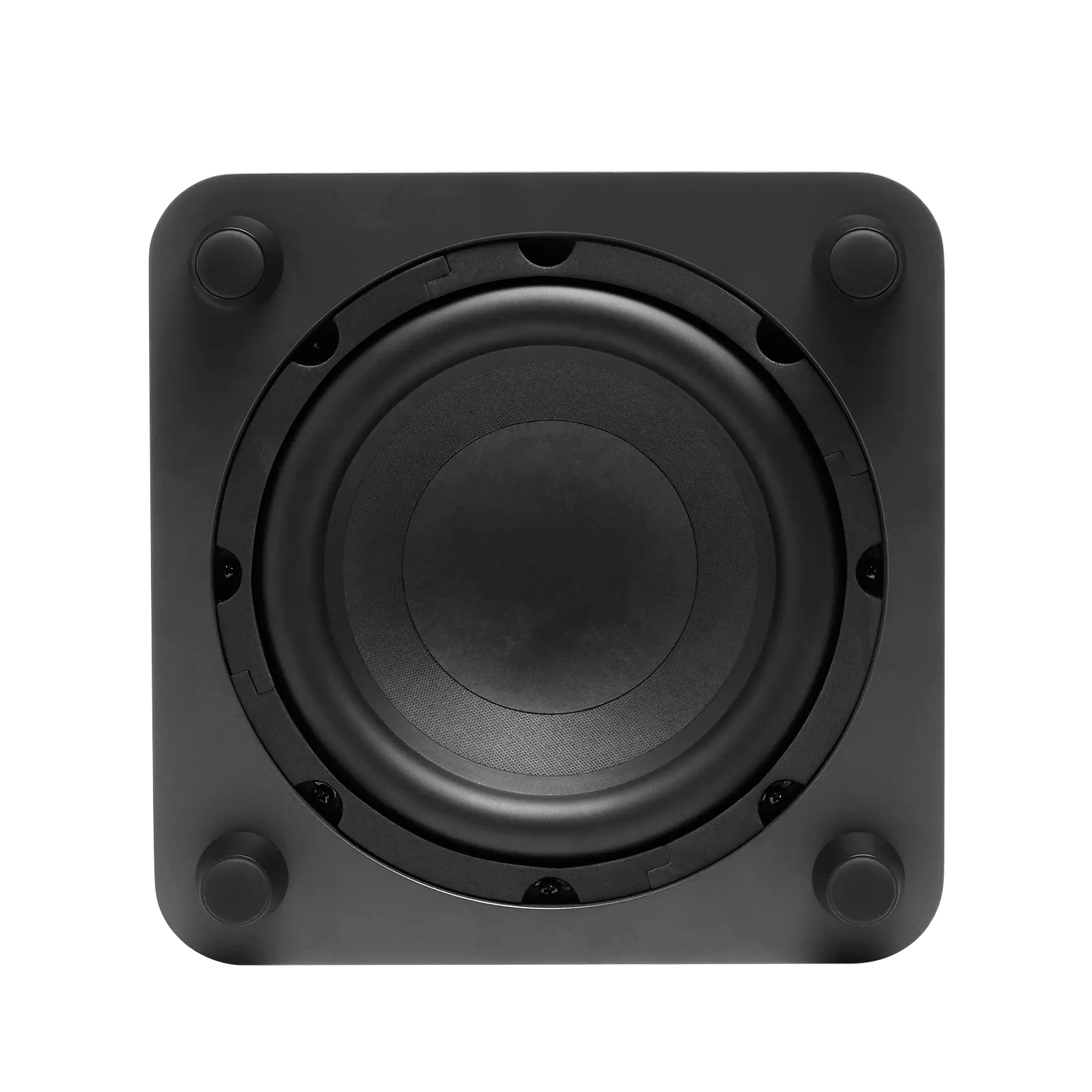

| Subwoofer transducer |
10" |
| Operating temperature |
0°C - 45°C |
| Standby for Soundbar (when all wireless connections are deactivated) |
< 0.5 W |
| Networked standby (Soundbar) |
< 6.0 W |
| Networked standby (Subwoofer) |
< 2.0 W |
| Time to standby |
<10 minutes |
Audio Specifications:
| Soundbar dimensions (WxHxD)
|
884 x 62 x 120 (mm)/ 34.8” x 2.4” x 4.7” |
| Detachable surround speaker, per piece |
173 x 60 x 120 (mm) / 6.8” x 2.4” x 4.7” |
| Subwoofer dimensions (WxHxD) |
305 x 440 x 305(mm) / 12.0" x 17.3" x 12.0" |
| Soundbar weight |
3.64 kg/ 8.0 lb |
| Detachable surround speaker |
0.72 kg x 2/ 1.6 lb x2 |
| Subwoofer weight |
11.10 kg / 24.5 lb |
Control and Connection Specifications:
| USB port |
Type A
|
| USB rating |
5 V/ 500 mA |
| Supported file format |
MP3 |
| MP3 codec |
MPEG 1 Layer 2/3, MPEG 2 Layer 3, MPEG 2.5 Layer 3 |
| MP3 sampling rate |
16 KHz - 48 KHz |
| MP3 bitrate |
80 kbps - 320 kbps |
| USB Port |
Yes (USB playback is available in US version. For other versions, USB is for Service only.) |
| Bluetooth version |
4.2 |
| Bluetooth profile |
A2DP V1.2/ AVRCP V1.5 |
| Bluetooth frequency range |
2402MHz-2480MHz |
| Bluetooth Max. transmitting power |
13dbm (EIRP) |
| Modulation Type |
GFSK, π/4 DQPSK, 8DPSK |
| Wi-Fi network |
IEEE 802.11 a/b/g/n/ac (2.4GHz/5GHz) |
| 2.4G Wi-Fi frequency range |
2412 – 2472 MHz (2.4GHz ISM Band, USA 11 Channels, Europe and others 13 Channels) |
| 2.4G Wi-Fi Max. transmitting power |
20 dBm (EIRP) |
| Modulation Type |
DBPSK, DQPSK, CCK, QPSK, BPSK, 16QAM, 64QAM |
| 5G Wi-Fi frequency range |
5.15 - 5.35 GHz, 5.470-5.725 GHz, 5.725 - 5.825 GHz |
|
5G Wi-Fi Max. transmitting power
|
22 dBm (EIRP)
|
|
Modulation Type
|
QPSK, BPSK, 16QAM, 64QAM, 256QAM
|
|
5G Wireless frequency range
|
5180.0 - 5240.0MHz (Except Europe), 5725.0 - 5825.0MHz
|
|
5G Max. transmitting power
|
13 dBm (EIRP)
|
|
Modulation Type
|
QPSK
|
