The JBL Stage 280W In-Wall Speaker delivers powerful bass and precise audio performance. Featuring an 8" (200mm) Polycellulose cone woofer and a 1" (25mm) Aluminum dome tweeter with an acoustic lens and High-Definition Imaging (HDI™) waveguide, it ensures clear, accurate sound reproduction. A visually discrete zero-bezel grille and easy installation allow these speakers to blend seamlessly into any decor, providing an immersive listening experience.
Key Features
- 8" Polycellulose cone woofer for enhanced bass
- 1" Aluminum dome tweeter with acoustic lens
- Tweeter housed inside High-Definition Imaging (HDI™) waveguide
- Acoustically optimized baffle reduces distortion
- Wide frequency response: 42Hz–25kHz (-6dB)
- Handles up to 120 watts RMS power
- Discrete zero-bezel grille for seamless integration
Technical Specifications
| Specification |
Details |
| High Frequency Transducer |
1" (25mm) Aluminum dome with High-Definition Imaging (HDI™) horn |
| Low Frequency Transducer |
8" (200mm) Polycellulose cone woofer |
| Recommended Amplifier Power |
20–120W RMS |
| Frequency Response |
42Hz–25kHz (-6dB on-axis) |
| Sensitivity (2.83V@1m) |
90dB |
| Nominal Impedance |
8 Ohms |
| Crossover Frequency |
1700Hz |
| Inputs |
Nickel-plated spring-loaded connectors |
| Grille Dimensions |
H 15.7in (400mm) x W 10.5in (266mm) |
| Cutout Dimensions |
H 14.6in (372mm) x W 9.4in (238mm) |
| Mounting Depth |
3.9in (98mm) |
| Product Weight |
2.8Kg |
| Shipping Carton Dimensions |
L 17.8in (453mm) x W 12.5in (318mm) x H 5.5in (140mm) |
| Shipping Carton Weight |
8.38lbs (3.8Kg) |

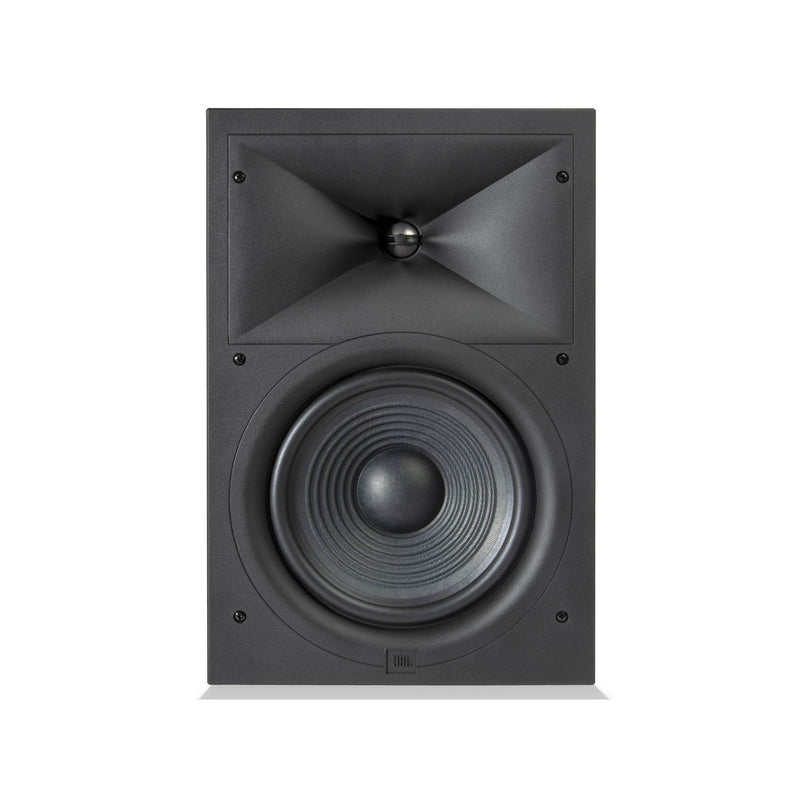

![JBL Stage 280W [Unit]](http://www.therevolverclub.com/cdn/shop/files/3.AVStore-JBL-Stage-280W-In-Wall.png?v=1737979115&width=800)

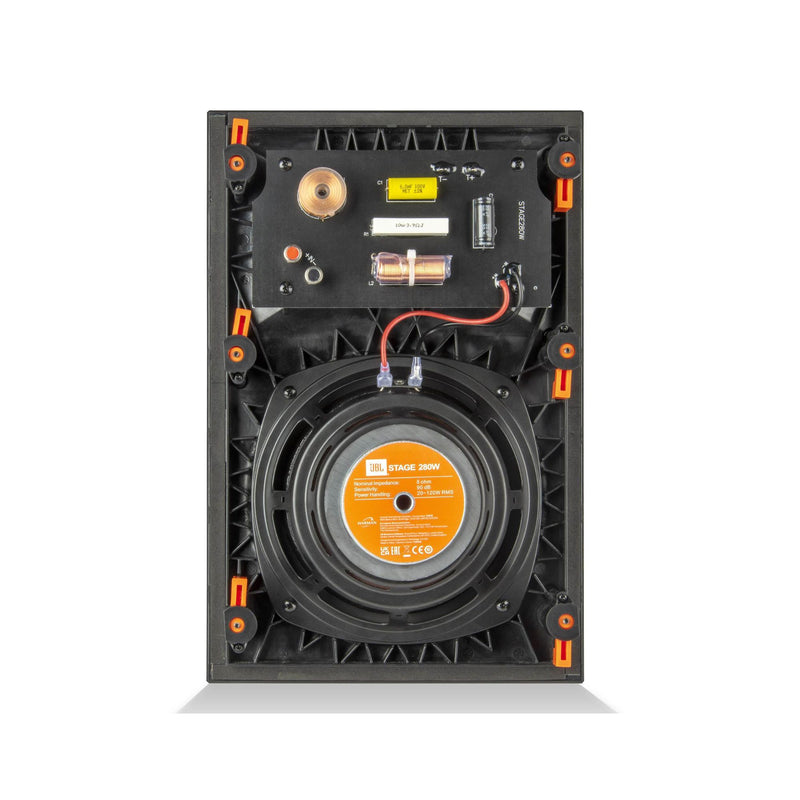

![JBL Stage 280W [Unit]](http://www.therevolverclub.com/cdn/shop/files/5.AVStore-JBL-Stage-280W-In-Wall.png?v=1737979115&width=800)
