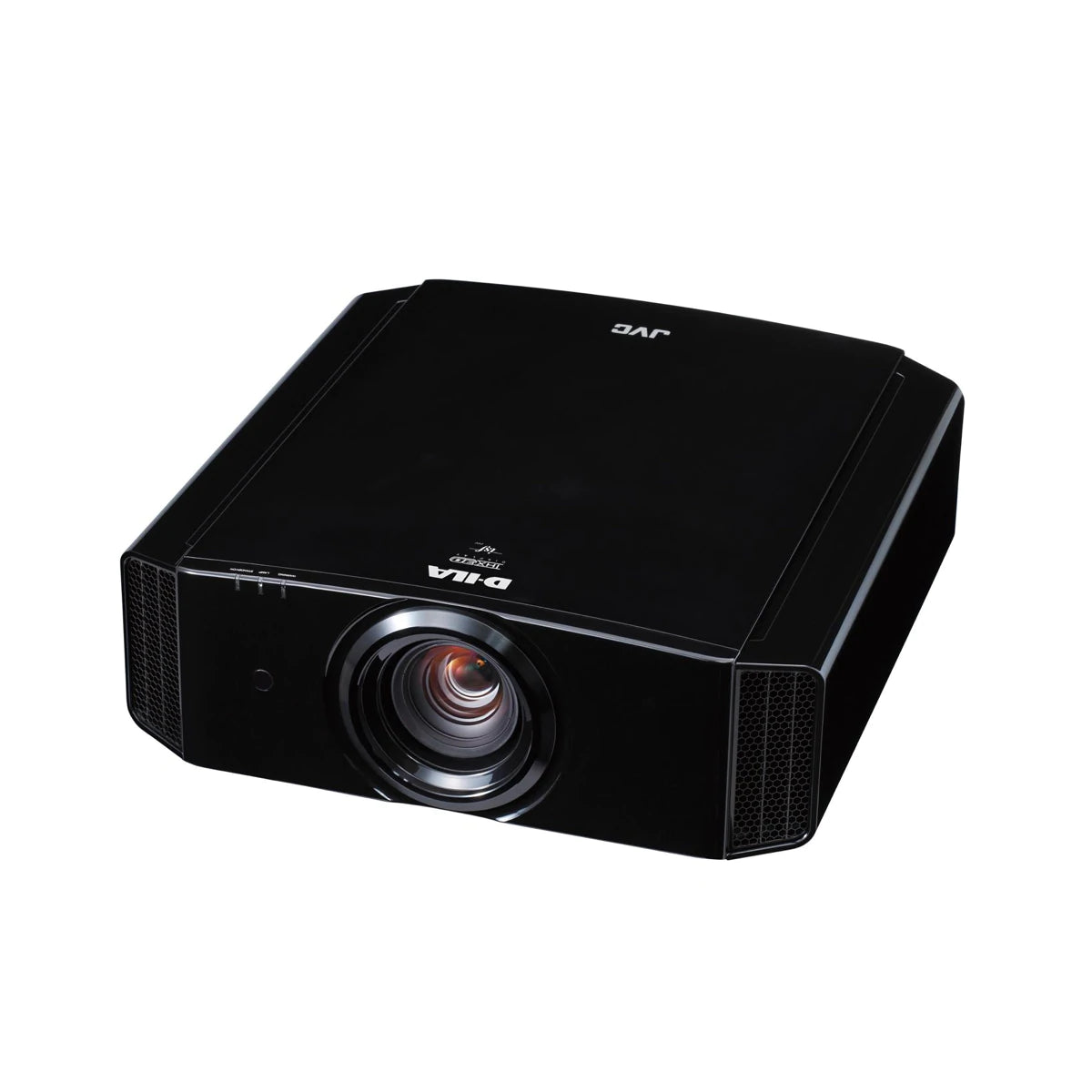

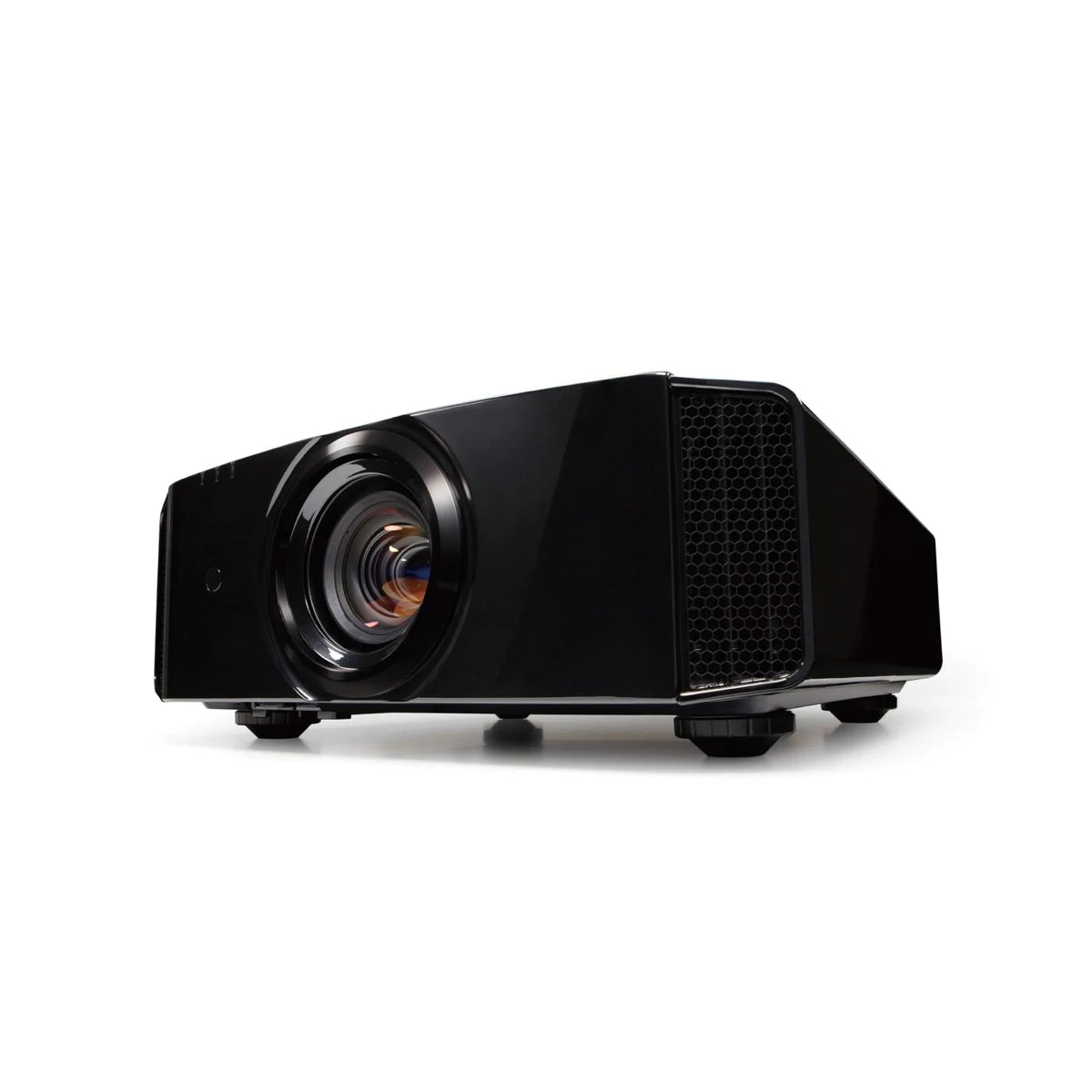

JVC DLA-X9900B (4K e-shift5 Projector)
₹ 800,000.00
This product is currently sold out.
About DLA-X9900B
JVC DLA-X9900BE D-ILA projector lets viewers see the details even in the brightest highlights and darkest shadows with the new 4K e-shift5 technology that employs completely new algorithms to realize even higher definition and improved 4K picture quality. The projector is designed deliver dynamic HDR images with a several manual controls including HDR Auto Picture mode, Picture Tone, and Bright/Dark level gamma adjustment, added with an all-new colour profile that is 20% brighter. Complies with the HDMI/HDCP 2.2 standard, and best of all the projector also features user-friendly technologies to create images that match the viewing environment and enhance viewing experience.
- Exceptionally bright 2,000 lm achieved with 265W high-output NSH lamp
- 4K Projection (3840 x 2160 pixels*) achieved with optical engine featuring e-shift 5 Technology with Multiple Pixel Control image processor
- Ultimate dynamic contrast ratio of 1,600,000:1 and native contrast ratio of 160,000:1 achieved with original D-ILA device and the high-output lamp

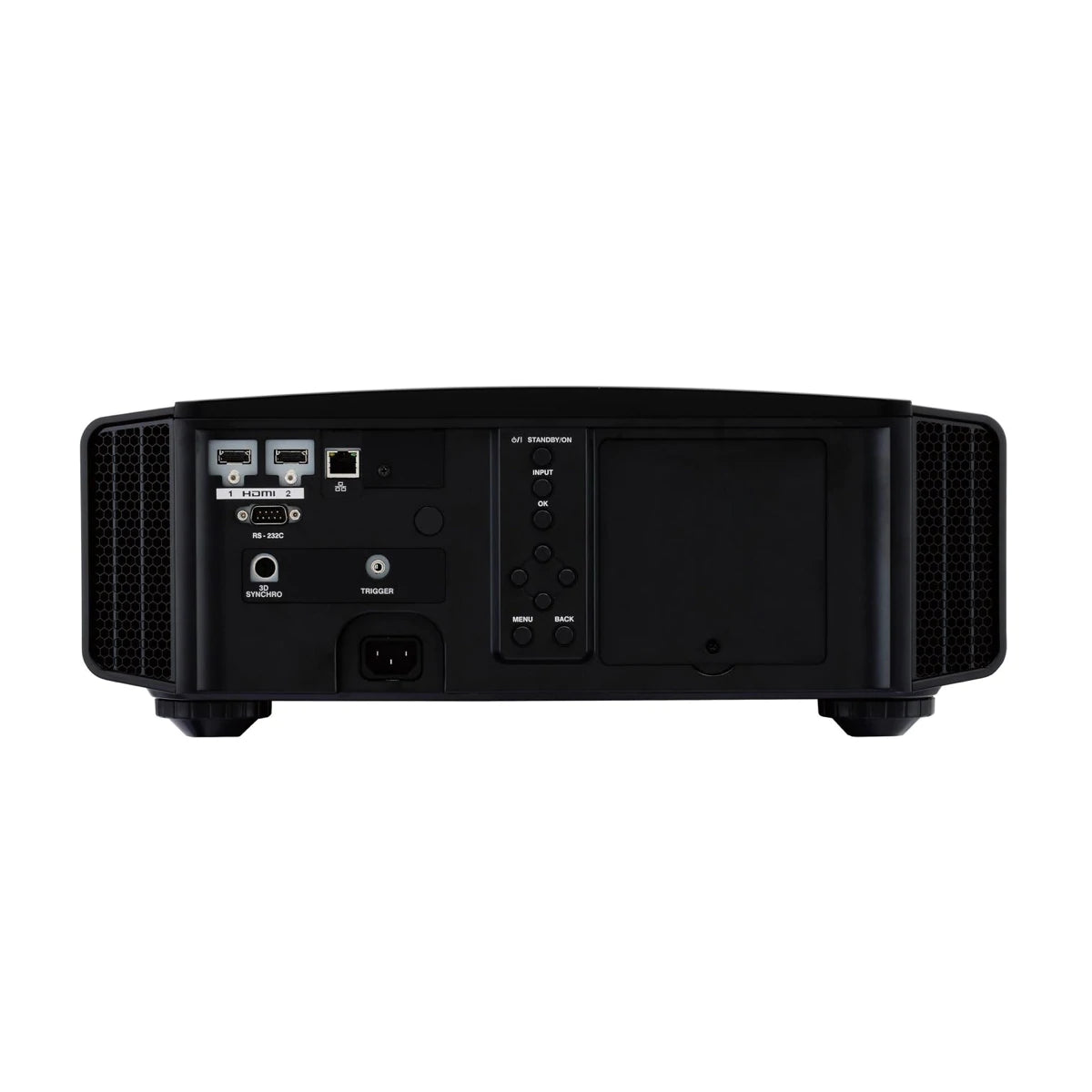

- Connectors: HDMI x 2 (3D, Deep Colour/HDCP 2.2), RS-232C (D-sub 9pin) x 1, LAN (RJ-45) x 1, Trigger x 1 (Mini jack), 3D Sync x 1 (Mini DIN)
- 6th generation 0.7" Full HD D-ILA (1920 x 1080) device x 3
- 4K signal input (4K60P 4:4:4, 4K60P 4:2:2/36-bit, 4K24P 4:4:4/36-bit)
- NSH 265W
- For easy reproduction, the projector switches automatically to HDR picture mode when HDR10 signals are received
- Display the MaxCLL and MaxFALL mastering data available for HDR content on some UHD Blu-ray discs
- Compatible with Hybrid Log-Gamma that will come into use for broadcasting applications
- 12-point manual gamma adjustment included in Auto-Calibration Software
- Screen Adjustment Modes: 136 modes
- Pixel Adjust function allows user to precisely correct colour deviation in 1/16-pixel increments; also segments the screen into 121 points for individual adjustment. Two customized settings can be stored in the memory.
- Auto-Calibration Function using an optical sensor** is capable of optimizing essential elements in the image, including colour balance, gamma characteristics, colour space and colour tracking
- Original Real Colour Imaging Technology has adopted a new filter capable of covering the DCI (digital cinema initiatives) colour space for true-to-the-source beautiful 4K images
- Xenon lamp colour temperature
- Colour Management System with 6-axis Matrix
- Lens Memory function (10 memories)
- *Resolution is 1920 x 1080 at 3D mode **Exclusive JVC software installed in PC and optical sensor are required. Please visit the JVC website for details. ***Professional calibration to desired screen is performed by trained dealers
- 4K resolution (3840 x 2160) achieved with e-shift 5 Technology including Multiple Pixel Control image processor*
- Resolution: 3840 x 2160 (in 2D)*; 1920 x 1080 (in 3D)
- Automatic Lens Cover
- THX 3D Display Certification to ensure the precise reproduction of picture quality in 2D and 3D content, just as the original filmmaker envisioned.
- ISF C3 (Certified Calibration Controls) mode*** to reproduce excellent picture quality optimized for specific environments.
- Wireless transmission options for 3D viewing: RF (radio frequency) system transmission with PK-AG3 3D Glasses for 100H continuous operation and PK-EM2 3D Synchro Emitter
- When Low Latency Mode is active, high-bandwidth signals like 4K with 10bit or 12-bit colour depth can be processed without compression
- Clear Motion Drive compatible with signals up to 4K60P 4:4:4, can reproduce moving images without ghosting or afterimage issues
- Motion Enhance technology reduces residual images and blurring that are often found in fast-moving images by optimally controlling the drive of D-ILA devices
- Low Latency Mode suppresses display delay for faster response when receiving signals from PC and game consoles
- To match the trends towards higher resolution and to deliver immersive high-definition 4K images, Multiple Pixel Control has been improved with a new analysis algorithm capable of more accurate diagonal-detection between frames for full HD and 4K resolution signals.
- Complies with the latest HDMI/HDCP 2.2 standard to enable full spec 4K signal input up to 4K60P 4:4:4
Specification
|
e-shift Technology |
Yes (e-shift5 Technology) |
|
Zoom |
2X zoom & focus, motorised |
|
f |
21.4 -- 42.8mm |
|
F |
3.2 -- 4 |
|
Projection size |
60" to 200" |
|
Lamp life |
Approx. 4500 hours in Low mode |
|
Brightness |
2,000 lm |
|
Contrast Ratio |
Native: 160,000:1, Dynamic: 1,600,000:1 |
|
Video format |
Digital: 480p, 576p, 720p 60/50, 1080i 60/50, 1080p 60/50/24,3840 x 2160p 60/50/30/25/24, 4096 x 2160p 60/50/30/25/24 [2] |
|
HDMI |
VGA/ SVGA/ XGA/ WXGA/ WXGA+/ SXGA/ WSXGA+ |
|
HDMI |
2 (3D/Deep Colour/HDCP 2.2) |
|
3D sync |
1 (Mini DIN 3-pin) |
|
RS232C |
1 (D-sub 9-pin) |
|
Trigger |
1 (mini jack, DC12V/100mA) |
|
LAN (RJ45) |
1 |
|
Device |
0.7-inch Full HD D-ILA (1920 x 1080) x3 |
|
Resolution |
3840 x 2160 (2D) [1] |
|
Lens shift function |
+/-80% vertical & +/-34% horizontal, motorized |
|
Light source lamp |
NSH 265 W |
|
Frame packing |
720p 60/50, 1080p 24 |
|
Side-by-side |
720p 60/50, 1080p 60/50/24, 1080i 60/50 |
|
Top & bottom |
720p 60/50, 1080p/24 |
|
Noise level |
21dB (when the lamp is in Low mode) |
|
Power requirement |
AC 100-240V, 50/60Hz |
|
Projector in use |
380 W |
|
Standby |
0.4 W |
|
Networked standby |
1.5 W (LAN), 1.3 W (RS232C),1.5 W (LAN and RS232C) |
|
Switchover time |
20 min. (To standby or networked standby; default) |
|
Dimensions: W x H x D (mm) |
455 x 179 x 472 |
|
Weight (KG) |
15.6kg |
