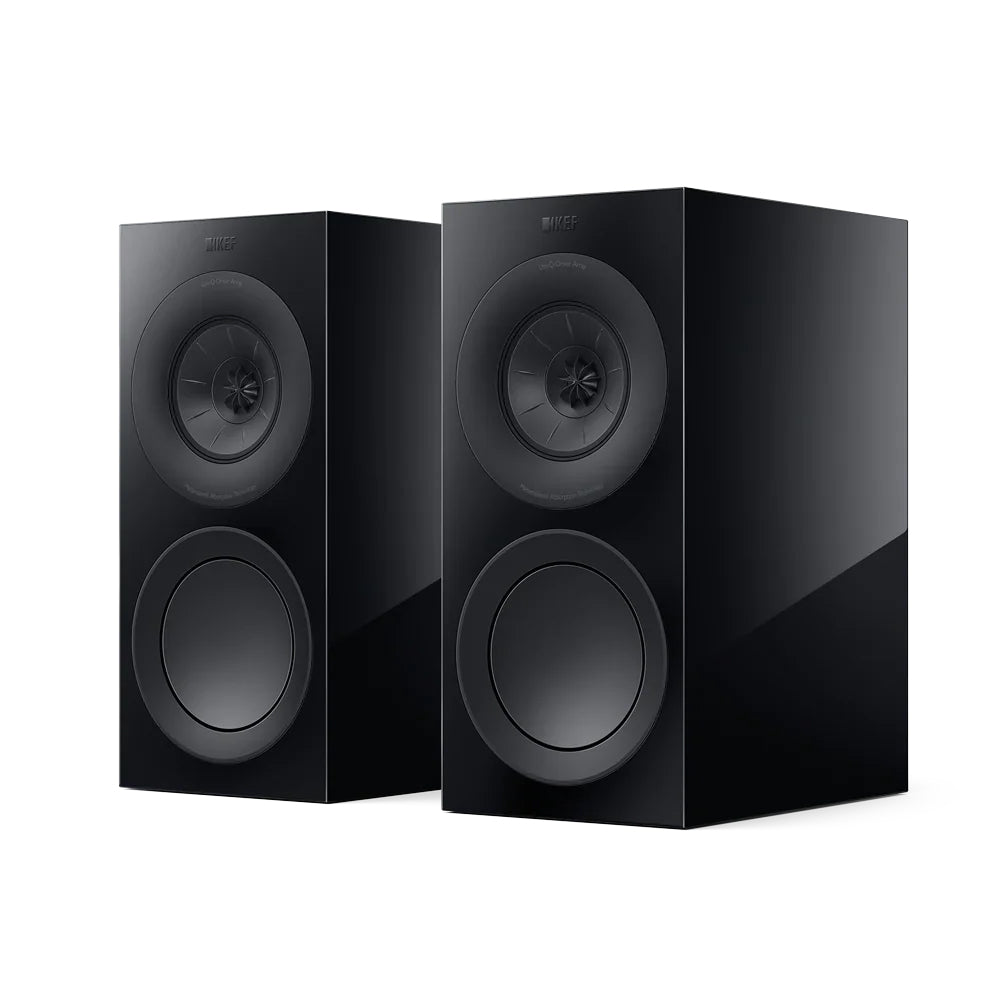

R3 Meta redefines bookshelf speaker’s performance. Sharing the same drivers as the range-topping R11 Meta, the R3 Meta is a true three-way design. It has a 12^th generation Uni-Q^® driver array with MAT^™ and a powerful 6.5” hybrid aluminium bass driver that pushes performance to new extremes.

DESIGN
Three-way bass reflex

DRIVE UNITS
Uni-Q Driver Array:
• HF: 25 mm (1 in.) vented aluminium dome with MAT
• MF: 125 mm (5 in.) aluminium cone
Bass Unit:
• LF: 165 mm (6.5 in.) hybrid aluminium cone

CROSSOVER FREQUENCY
420 Hz, 2.3 kHz

FREQUENCY RANGE (-6dB)
38 Hz – 50 kHz

TYPICAL IN-ROOM BASS RESPONSE (-6dB)
30 Hz

FREQUENCY RESPONSE (±3dB)
58 Hz – 28 kHz

HARMONIC DISTORTION (90dB, 1m)
<1% at 73 Hz and above
<0.5% from 90 Hz – 20 kHz

MAXIMUM OUTPUT
110 dB

AMPLIFIER REQUIREMENTS
15 – 180 W

NOMINAL IMPEDANCE
4 Ω (min. 3.2 Ω)

SENSITIVITY (2.83V/1m)
87 dB

WEIGHT
12.4 kg (27.3 lbs)

DIMENSIONS (H × W × D) WITH TERMINAL
422 × 200 × 336 mm (16.6 × 7.9 × 13.2 in)

FINISHES
Black Gloss / White Gloss / Walnut / Indigo Gloss Special Edition
