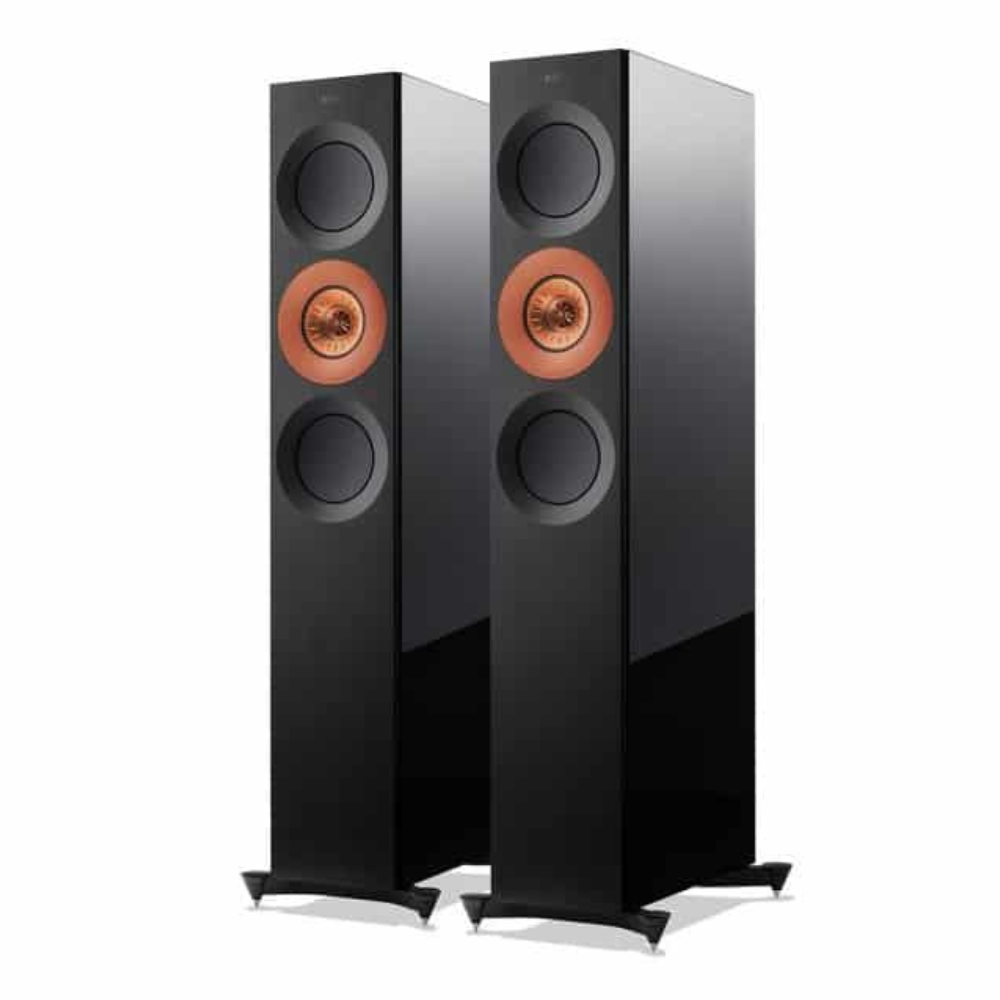

Reference 3 Meta HiFi Speakers
The Reference 3 Meta is the benchmark of HiFi speakers, delivering a sensational sound stage for a wide range of listeners. At the heart of this remarkable speaker is the 12th generation Uni-Q® driver array with MAT™, the latest technological development from KEF. This technology places you directly in the center of the action, providing an unparalleled listening experience.
Key Features
-
Uni-Q® Driver Array: 12th generation with MAT™ for a more accurate and immersive sound.
-
Three-Way Bass Reflex Design: Ensures clear mid-range and powerful bass response.
-
High Sensitivity: 86dB for more efficient sound reproduction.
-
Wide Frequency Range: From 35Hz to 45kHz, ensuring rich bass and sparkling highs.
-
Low Distortion: Harmonic distortion remains below 0.5% for most of the frequency range.
-
Peak Sound Pressure Level: 113.5dB, offering an impressive dynamic range.
Technical Specifications
| Specification |
Details |
| Design |
Three-way bass reflex |
| Drive Units |
Uni-Q driver array |
| HF Driver |
25 mm (1 in.) aluminium dome with MAT |
| MF Driver |
125 mm (5 in.) aluminium cone |
| LF Driver |
2 x 165 mm (6.5 in.) aluminium cone |
| Frequency Range |
Short port: 38Hz - 45kHz, Long port: 35Hz - 45kHz |
| Frequency Range (Typical In-Room Bass Response) |
28Hz |
| Frequency Response (±3dB) |
43Hz – 35kHz |
| Crossover Frequency |
450 Hz, 2.1 kHz |
| Amplifier Requirements |
50 - 300W |
| Sensitivity (2.83V/1m) |
86dB |
| Harmonic Distortion (90dB, 1m) |
<0.5% 40Hz – 100kHz, <0.2% 200Hz – 2kHz, <0.1% 2kHz - 20kHz |
| Maximum Output (Peak SPL at 1m with Pink Noise) |
113.5dB |
| Impedance |
4 Ω (min. 3.2 Ω) |
| Weight |
51.3 kg (113.1 lbs.) |
| Dimensions (H x W x D) with Grille and Terminal |
1155 x 205 x 462 mm (45.5 x 8.1 x 18.2 in.) |
| Dimensions (H x W x D) with Grille, Terminal & Plinth |
1207 x 323 x 467 mm (47.5 x 12.7 x 18.4 in.) |
