The MARANI DPA260P is a cost-effective 2-in / 6-out digital speaker management system built for live sound setups that need precise crossover control, EQ, limiting, and delay in one rack unit. Powered by a MARANI® DSP engine with 24-bit AD/DA conversion and 96 kHz sampling, it supports flexible routing via full matrix mixing, detailed per-input and per-output processing, and fast setup through front-panel control or PC software via USB/RS485.

Key Features

2 inputs / 6 outputs with full matrix mixing

Route and mix either input to any output in any ratio, making it easy to build crossover and speaker system configurations for different venues and setups.

High-quality DSP + 24-bit / 96 kHz conversion

MARANI® DSP processing with 24-bit converters and a 96 kHz sample rate for clean, detailed system tuning.

Powerful EQ and processing per channel

Each input channel supports up to 31-band parametric EQ, gain, noise gate, RMS compressor, delay, and an internal white/pink noise generator. Each output provides up to 7-band parametric EQ, crossover filters, peak limiting, phase correction, and driver alignment delay.

Flexible crossover filter options

Choose slopes from 6 dB/oct up to 48 dB/oct, with Butterworth, Bessel, and Linkwitz-Riley options for high-pass and low-pass filters.

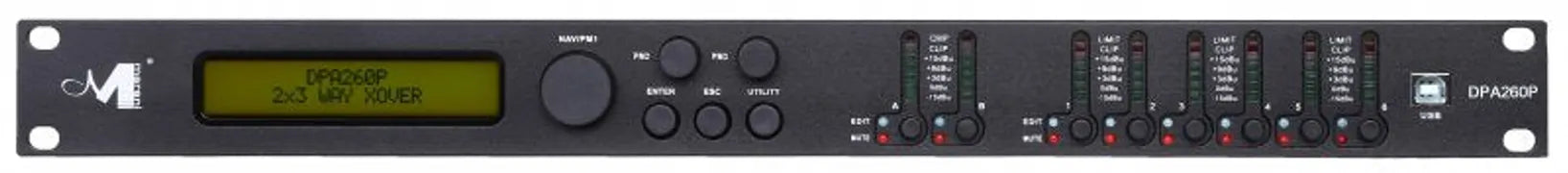

Front-panel control + PC software for remote setup

Configure locally via the LCD display and channel meters, or connect via USB/RS485 for remote control. PC software supports real-time monitoring and control of up to 32 units.

Presets and security lockout

Store up to 32 user presets for repeatable setups, and lock down settings for fixed installations or shared systems.

Technical Specifications

Note: DPA260RTA is a special version that supports RTA functionality and digital input. DPA260P+ and DPA260RTA+ are upgraded advanced versions.
