The Marantz NR1711 7.2ch 8K Ultra HD AV receiver drives immersive, high-fidelity audio from a compact chassis.

7-Channel Discrete Power Amplifier For All Your Entertainment
Powering 50W per channel (8-ohm, 20Hz – 20kHz, 0.08% THD, 2ch. drive), enjoy your favorite movies in striking quality.

Slim Design, Exceptional Performance
With a slim profile that is half the height of a traditional AV receiver, the new Marantz NR1711 delivers exceptional performance and sound quality.

Latest HDMI Support
Featuring one dedicated 8K input and one output for 8K quality video from 8K source devices; 8K upscaling available on all six HDMI ports.

Enjoy Object-Based 3D Audio Formats
The eARC HDMI output transmits uncompressed and object-based audio formats like Dolby Atmos® and DTS:X® directly from a smart TV app to the AV receiver.

Technical Specification

• Multichannel Surround
  DTS HD Master / DTS:X - Yes / Yes
  DTS:X Pro - No
  DTS Neo:X / DTS Neural:X - No / Yes
  DTS Virtual:X - Yes
  Dolby TrueHD / Dolby Atmos - Yes / Yes
  Dolby ProLogic Il / Dolby Surround - No / Yes
  Dolby Height Virtualization - Yes
  Front Wide Speakers: Dolby / DTS - No
  Auro 3D - No
  IMAX Enhanced - No
  MPEG-H - No
  Multichannel Stereo - Yes
  Max Number of Processing (Preamp) Channels - 7.1

• Sound Enhancements
  Single Board Power Amplifier - No
  Discrete Power Amplifier - 7
  Copper Plated Chassis - No
  Power Transformer: Toroidal / EI - EI
  Current Feedback Topology - No
  Hyper Dynamic Amplifier Modules (HDAM) - No
  Pure Direct - Yes
  High Grade Audio Components - No
  Gold plated RCA terminals - No
  Clock Jitter Reducer - No
  Audyssey - MultEQ
  Audyssey Dynamic EQ / Dynamic Volume - Yes / Yes
  Audyssey LFC - No
  Audyssey APP Support - Yes
  Speaker Setup Presets - 2
  Compressed Audio Enhancer: MDAX2 - Yes

• Network
  HEOS Multi-room and Streaming - Yes
  Lossy Formats: MP3 / WMA / AAC - Yes / Yes / Yes
  Lossless formats FLAC / ALAC / WAV - Yes / Yes / Yes
  DSD Audio Streaming - up to DSD5.6
  FLAC HD 192/24 - Yes
  WAV 192/24 - Yes
  ALAC 192/24 - Yes
  Gapless Playback - Yes (FLAC, WAV, ALAC, DSD)
  AirPlay 2 - Yes
  Roon Tested - Yes
  Internet radio - TuneIn
  Spotify Connect* / Tidal* / Deezer* / others * - Yes / Yes / Yes / Yes
  Amazon Prime Music* / Pandora* - Yes / Yes
  Compatible with Remote APP for Smart Phones - Android / iOS
  Compatible with Remote APP for Tablets - Android / iOS/Amazon Kindle
  Ethernet Ports - Yes
  Wi-Fi - Yes
  Bluetooth - Yes
  Bluetooth Headphone transmission - Yes

• HDMI
  HDMI Inputs: Back / Front - 6 / 0
  HDCP2.3 support - Yes
  HDMI Outputs: Main / Zone - 1 / No
  HDMI max Resolution (8k / 4k) - 8k/60 - 4k/120
  Video Conversion Analog -> HDMI - No
  HDMI to HDMI Scaling - up to 8K 60/50
  HDMI: 8K / 4K / CEC / eARC - Yes / Yes / Yes / Yes
  HDMI: Dolby Vision / HDR 10+ / Dynamic HDR / HLG - Yes / Yes / Yes / Yes
  HDMI: ALLM / QMS / QFT / VRR - Yes / Yes / Yes / Yes
  HDMI Pass-Through in Standby Mode - Yes
  DSD Audio Capability - No

• Multi-Room / CI
  HEOS Multi-Room Integrated - Yes
  TV Sound grouping - Yes
  Multi-Room Zones - 2
  Main room multichanel audio - Zone stereo downmix - Yes
  Zone Audio Source: HDMI / Opt, Coax / Network, USB / Analog - Yes (2ch) / Yes (2ch) / Yes / Yes
  Zone Audio Output: Speaker / Preout - Yes / Yes
  Zone HDMI Output from HDMI Source - No
  Webbrowser Setup - Yes
  IP Control / RS232 Control / Web Control / App Control - Yes / No / Yes / Yes
  IR Flasher In - No
  Marantz Remote Bus - Yes
  DC Trigger Output - 1

• Others
  Voice Control - Works with Amazon Alexa - Yes
  Voice Control - Google Assist / Apple Siri - Yes / Yes
  Voice Control - Microphone built-in - No
  Auto Speaker Setup by Microphone - Audyssey MultEQ
  FL Display - 1 line
  Graphic User Interface - GUI - Advanced
  ISF Certification - Yes
  GUI Languages - 9
  Setup Assistant - Yes
  Smart Select - Yes
  Firmware Update by Network USB - Yes / Yes
  Variable Cross Over - Yes
  Optimized Bass Redirection - Yes
  Bass Sync - No
  ECO Mode - Yes
  Auto Power off - Yes
  Sleep / Timer - Yes

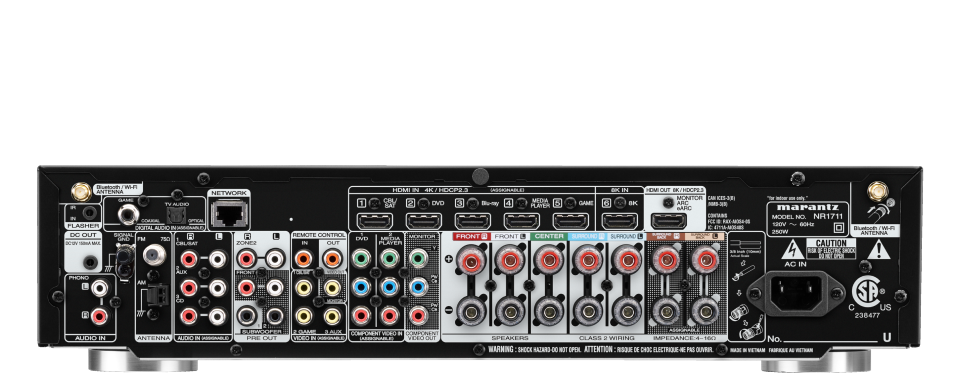

• Inputs/Outputs
  Composite In / Out - 3 / 1
  Component In / Out - 2 / 1
  HDMI In / Out - 6 / 1
  Multi-Room Video Out: Video / HDMI - No / No
  Analog In / Out - 3 / No
  Phono (MM) In - Yes
  Digital In: Optical / Coaxial - 1 / 1
  Multi-Room Out: Analog / Digital - 1 / No
  Multichannel Pre Out - Yes (2.2)
  Subwoofer Out - 2
  7.1 Multichannel Input - No
  Speaker Terminal: Gold Plated Screw / Regular Screw - No / Yes
  Number of Speaker Terminals - 7
  Speaker A / B - assignable
  Bi-Amp Drive - assignable
  Multi-Room Speaker Terminal - assignable
  Front Inputs: Audio / Composite / Digital (Opt) / HDMI / USB - No / No / No / No / Yes
  USB Audio / Made for iPod / Made for iPhone - Yes / AirPlay / AirPlay
  DAB / DAB+ tuner - No
  FM Tuner with RDS - Yes

• Specifications
  Number of poweramps - 7
  Power Output (8 ohm, 20 Hz - 20 kHz, 0.08% 2ch Drive) - 50 W
  Power Output (8 ohm, 20 Hz - 20 kHz, 0.05% 2ch Drive) - No
  Power Output (6 ohm, 1 kHz, 0.7% 2ch Drive) - 70 W
  Power Output (6 ohm, 1 kHz, 1% 1ch Drive) - 90 W
  70% Guarantee - Yes

• General
  Available Colors: Gold / Silver / Black / Silver-Gold - No / No / Yes / Yes
  Metal Front Panel - No
  System Remote Control - RC042SR
  Pre-Programmed / Learnable / LCD Display - No / No / No
  Power Consumption in W - 250
  Power Consumption No-Sound (ECO on/off) in W - 30 W / 40 W
  Standby Consumption in W - 0.2
  CEC Standby Consumption in W - 0.5
  Network Control On Consumption in W - 3.7
  Maximum Dimensions - 17.3 x 14.8 x 4.1
  Antenna:Horizontal:(W x D x H) in inches - (17.3 x 14.8 x 6.8 )
  Antenna:Vertical :(W x D x H) in inches - 【 17.3 x 14.4 x 4.1】
  Weight in lbs. - 18.2
  Carton Maximum Dimensions (W x D x H) in inches - 20.6 x 19.4 x 7.5
  Carton Weight (inc. product) in lbs - 23.1
