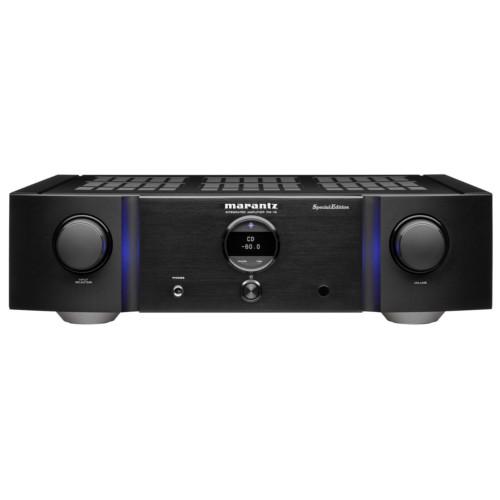

PM-12SE Integrated Amplifier
The PM-12SE is built with just one aim – audio performance – which is why it uses a fully discrete two-stage design with separate power supplies for the preamplifier and power amp section. This amplifier draws on the design of the PM-10 and PM-KI Ruby, delivering unmatched audio quality for audiophiles.
Key Features
-
Classic Design: Sleek and timeless, designed to fit perfectly in any audio setup.
-
2.2 Channels: Offers impressive multi-channel capabilities for versatile sound output.
-
200 Watts Per Channel: Power-driven to deliver rich, dynamic sound across your audio system.
-
Custom HDAM: Custom-designed HDAM for optimized sound performance.
-
Linear Drive Power Supply: Dedicated power for the pre-amplifier stage for superior audio performance.
-
High-grade Components: Built with high-quality components for exceptional sound fidelity.
Technical Specifications
| Feature |
Specification |
| Power Output (8/4 Ohm RMS) |
100 W / 200 W |
| Frequency Response |
5 Hz - 50kHz |
| Total Harmonic Distortion |
0.005% |
| Damping Factor |
500 |
| Input Sensitivity (MM) |
2.3 mV / 39 kohm |
| Input Sensitivity (MC) |
250 mV / 100 ohm |
| Signal to Noise Ratio (MM/MC) |
88 / 75 dB |
| Input Sensitivity (High Level) |
220 mV / 13 kohm |
| Signal to Noise Ratio (High Level) |
107 dB (2V input/Rated output) |
| Power Consumption |
130 W |
| Standby Consumption |
0.2 W |
| Dimensions (W x D x H) |
440 x 453 x 123 mm |
| Weight |
15.3 kg |
| Carton Dimensions (W x D x H) |
557 x 536 x 243 mm |
| Carton Weight |
18.4 kg |
| Remote Control |
RC005PMSA |
| System Remote Function |
Yes |
Input/Output Ports
-
Audio Inputs: 6
-
Phono Input: MM / MC
-
Audio Outputs: 2
-
Power Amp Direct IN: Yes
-
Speaker Terminals: Marantz SPKT-100+, 2 terminals
-
Headphone Out: Yes
-
Floating Control Bus: Yes (3.5 mm mono jack x 2)
Additional Features
-
Shottky Diodes: Ensures low noise and high-performance output.
-
Linear Volume Control: Provides precise volume adjustments.
-
BI-AMP and Multichannel Option: For custom, expanded audio setups.
-
Low Noise OELD Display: For clean and clear visual output.
Conclusion
The PM-12SE is a powerhouse amplifier that combines classic design with state-of-the-art audio technology, making it an excellent choice for audiophiles and music lovers alike.
