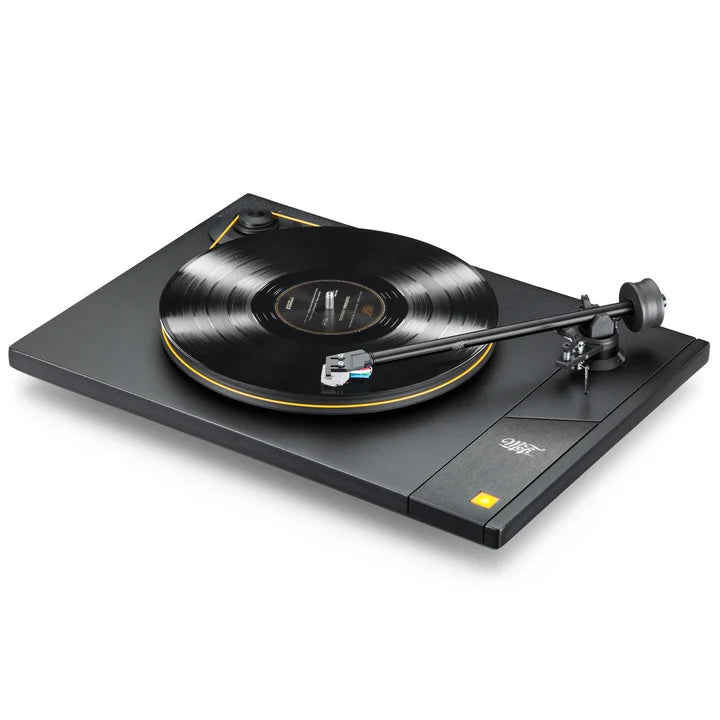

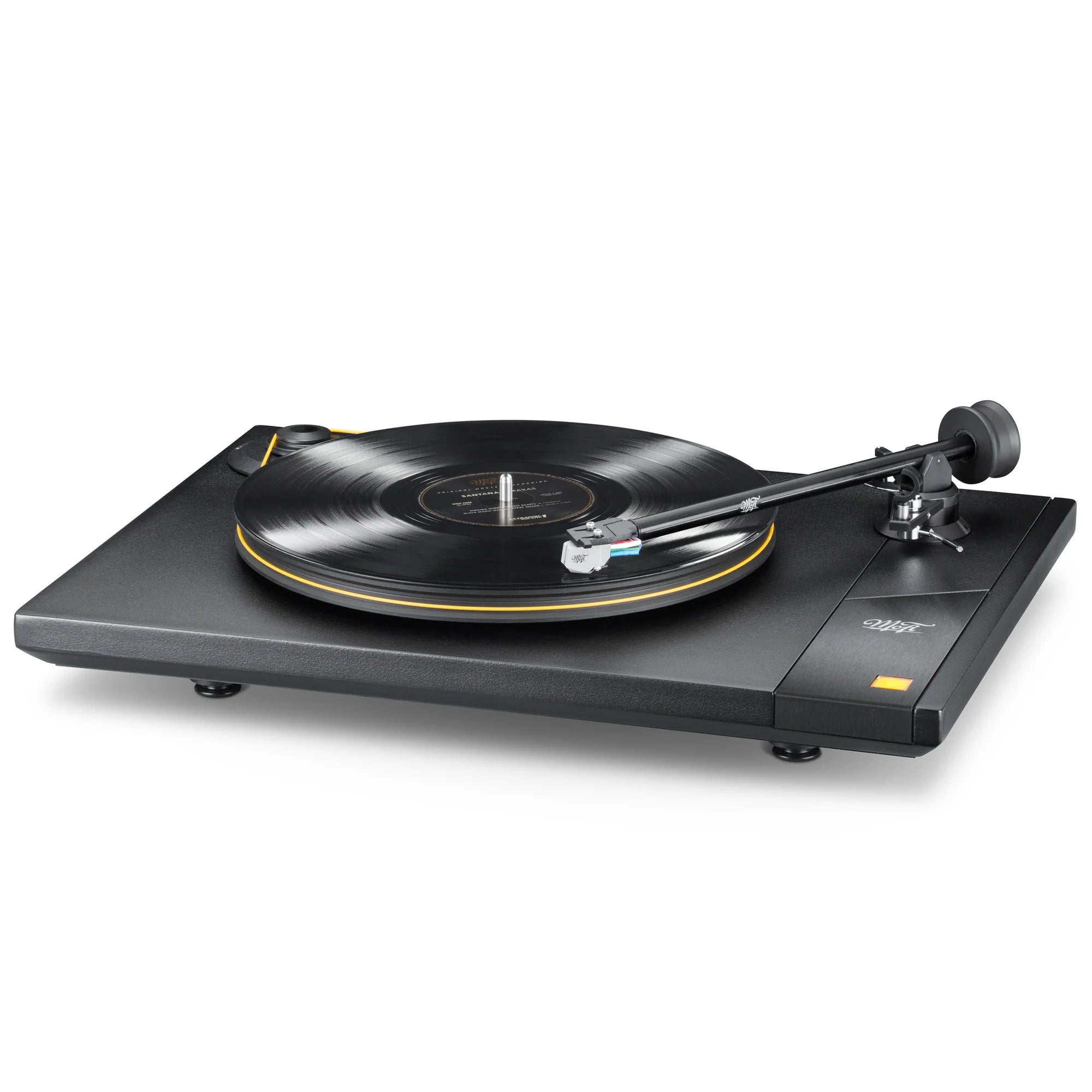

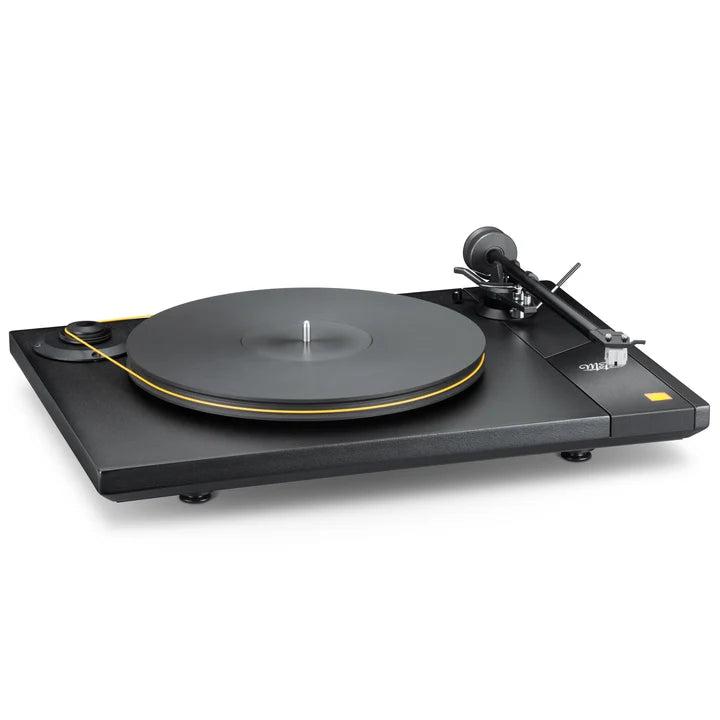

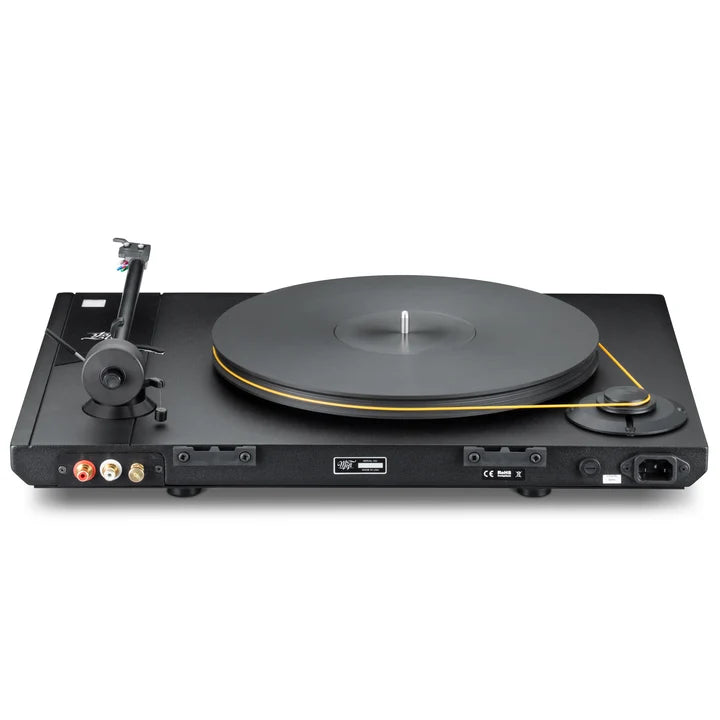

MoFi Electronics StudioDeck+ with StudioTracker Cartridge
The MoFi Electronics StudioDeck+ is an audiophile belt-drive turntable supplied with a factory-fitted MoFi StudioTracker moving-magnet (MM) cartridge. It combines the StudioDeck's isolated AC synchronous motor, 3/4-inch Delrin platter, 10-inch MoFi Studio Tonearm, precision inverted bearing and HRS-designed anti-vibration feet with the StudioTracker's V-Twin dual-magnet generator and elliptical stylus. The result is a complete analogue source designed for stable, low-noise and highly detailed vinyl playback. MoFi's current product information lists the StudioDeck+ configuration with StudioTracker as a dedicated package.
Key Features
-
StudioDeck+ Package: StudioDeck turntable supplied with the StudioTracker MM cartridge.
-
Factory-Fitted StudioTracker: The cartridge is supplied as part of the + package, allowing the tonearm and cartridge setup to be optimised together.
-
V-Twin Dual-Magnet Generator: StudioTracker uses two low-mass magnets arranged in a V formation parallel to the stereo record grooves.
-
Elliptical Stylus: The bonded elliptical stylus is designed to accurately trace the record groove.
-
300 RPM AC Synchronous Motor: Isolated motor design helps minimise vibration transfer to the platter and tonearm.
-
Belt-Drive System: Provides controlled platter rotation for 33⅓ and 45 RPM records.
-
3/4-Inch Delrin Platter: High-mass Delrin construction provides a stable record support platform.
-
10-Inch Studio Tonearm: Straight aluminium tonearm with gimbaled bearings provides precise cartridge tracking.
-
Adjustable Tonearm: Tonearm setup allows adjustment of key cartridge alignment parameters.
-
Precision Inverted Bearing: Steel, bronze and Teflon bearing construction is designed for smooth and quiet rotational performance.
-
HRS Anti-Vibration Feet: Height-adjustable isolation feet are designed to reduce unwanted external vibration.
-
Low Wow & Flutter: Manufacturer specification of 0.017%–0.025%.
-
72 dB Signal-to-Noise Ratio: Designed for a quiet analogue playback platform.
-
Designed and Manufactured in the USA: The StudioDeck platform is custom designed and manufactured in the USA.
StudioDeck+ Turntable Specifications
| Brand |
MoFi Electronics |
| Model |
StudioDeck+ |
| Product Type |
Audiophile Belt-Drive Turntable with MM Cartridge |
| Drive System |
Belt Drive |
| Motor |
300 RPM AC Synchronous |
| Playback Speeds |
33⅓ RPM / 45 RPM |
| Platter |
3/4-Inch Delrin |
| Platter Weight |
3.88 lb |
| Wow & Flutter |
0.017% – 0.025% |
| Signal-to-Noise Ratio |
72 dB |
| Tonearm |
10-Inch Straight Aluminium, Gimbaled Bearing |
| Cartridge |
MoFi StudioTracker MM |
| Cartridge Included |
Yes – StudioTracker |
| Built-In Phono Stage |
No |
| Power Consumption |
< 5 W |
| Weight |
19.1 lb |
StudioTracker MM Cartridge
The supplied MoFi StudioTracker is a dual-magnet moving-magnet stereo cartridge developed around MoFi's V-Twin generator concept. Its two low-mass magnets are positioned in a V formation parallel to the stereo record grooves, mirroring the geometry of a cutting head. The cartridge uses a bonded elliptical stylus and polymer body and produces a 3.5 mV output.
| Cartridge Model |
MoFi StudioTracker |
| Type |
Dual Magnet (MM) Stereo |
| Generator |
V-Twin Dual-Magnet |
| Stylus |
Bonded Elliptical |
| Cantilever |
Aluminium |
| Body |
Polymer |
| Output Voltage |
3.5 mV |
| Frequency Response |
20 Hz – 20 kHz |
| Cartridge Weight |
6.4 g |
| Tracking Force |
1.8 – 2.2 g |
| Recommended Tracking Force |
2.0 g |
| Impedance |
47 kΩ |
| Recommended Capacitance |
100 pF |
| Static Compliance |
35 × 10-6 / dyne |
| Dynamic Compliance |
8 × 10-6 / dyne |
| Channel Separation |
7 dB at 1 kHz |
| Channel Balance |
1.5 dB at 1 kHz |
10-Inch MoFi Studio Tonearm
The StudioDeck+ uses a 10-inch straight aluminium tonearm with a gimbaled bearing arrangement. Its longer effective arm geometry is designed to reduce tracking error compared with shorter tonearms. The tonearm is compatible with cartridges in the specified 5–10 g weight range, and the supplied 6.4 g StudioTracker falls comfortably within this range.
| Type |
10-Inch Straight Aluminium |
| Bearing |
Gimbaled Bearing |
| Overhang |
18 mm / 0.71 Inch |
| Offset Angle |
22.8° ± 2° Adjustable |
| Cartridge Weight Range |
5 – 10 g |
| Supplied Cartridge Weight |
6.4 g |
Motor & Drive System
The StudioDeck+ employs an isolated 300 RPM AC synchronous motor driving the platter through a belt. The motor isolation is intended to prevent mechanical motor vibration from reaching the platter and stylus. The turntable supports 33⅓ and 45 RPM playback.
| Motor Type |
AC Synchronous |
| Motor Speed |
300 RPM |
| Drive Type |
Belt Drive |
| Playback Speeds |
33⅓ / 45 RPM |
| Motor Isolation |
Isolated Motor Design |
Delrin Platter
The turntable uses a 3/4-inch Delrin platter weighing approximately 3.88 lb. Delrin provides a stable, low-resonance platform for supporting the record during playback. The platter forms part of the StudioDeck+'s overall mechanical approach to controlling unwanted vibration and resonance.
Inverted Bearing
The StudioDeck+ incorporates a precision steel inverted bearing using a low-tolerance combination of steel, bronze and Teflon. The bearing is designed to provide smooth and quiet rotational stability while supporting the platter.
HRS Anti-Vibration Feet
The StudioDeck+ uses anti-vibration feet designed in collaboration with Harmonic Resolution Systems (HRS). The feet provide isolation between the turntable and its supporting surface, helping reduce the effect of external vibration on the stylus and record interface.
Performance Specifications
| Wow & Flutter |
0.017% – 0.025% |
| Signal-to-Noise Ratio |
72 dB |
| Motor |
300 RPM AC Synchronous |
| Drive |
Belt Drive |
| Speeds |
33⅓ / 45 RPM |
Phono Stage & Connectivity
The StudioDeck+ is a dedicated analogue turntable and does not include a built-in phono preamplifier. The supplied StudioTracker is a moving-magnet cartridge with a 3.5 mV output, so it should be connected to a suitable MM PHONO input or an external MM phono preamplifier. If the amplifier only has standard line-level inputs such as AUX or CD, an external phono stage is required.
| Cartridge Output |
3.5 mV |
| Cartridge Type |
MM |
| Built-In Phono Stage |
No |
| MM PHONO Input |
Yes – Direct Connection |
| External MM Phono Stage |
Yes |
| Line-Level AUX / CD Input |
Requires External Phono Stage |
| USB Output |
No |
| Bluetooth |
No |
Recommended Phono Loading for StudioTracker
| Input Type |
Moving Magnet (MM) |
| Impedance |
47 kΩ |
| Capacitance |
100 pF |
| Output Voltage |
3.5 mV |
| Tracking Force |
1.8 – 2.2 g |
| Recommended Tracking Force |
2.0 g |
System Compatibility
| Integrated Amplifier with MM PHONO |
Yes – Direct Connection |
| Integrated Amplifier with MC-Only PHONO |
No – Not Suitable Without Appropriate MM Input/Stage |
| Integrated Amplifier with AUX / LINE Only |
Requires External MM Phono Stage |
| External MM Phono Stage |
Yes |
| Powered Speakers with Line Input |
Requires External MM Phono Stage |
| AV Receiver with MM PHONO Input |
Yes |
Dimensions & Weight
| Width |
19.69 Inches / Approximately 500 mm |
| Height |
5.375 Inches / Approximately 137 mm |
| Depth |
14.25 Inches / Approximately 362 mm |
| Dimensions (W × H × D) |
19.69 × 5.375 × 14.25 Inches |
| Weight |
19.1 lb / Approximately 8.7 kg |
Power Specifications
| Power Consumption |
< 5 W |
| Power Requirements |
120 V / 60 Hz, 220–230 V / 50 Hz, or 100 V / 50 Hz depending on version |
StudioDeck+ Package Contents
- MoFi Electronics StudioDeck+ Turntable
- 10-Inch MoFi Studio Tonearm
- Factory-Fitted StudioTracker MM Cartridge
- StudioTracker Stylus Guard
- Stylus Cleaning Brush
- Cartridge Mounting Hardware
- Hex Driver / Setup Tools
- Dust Cover
- RCA Phono Interconnect
- Ground Wire
- Power Cable
Important Cartridge Information
The StudioDeck+ designation is important: unlike the standard StudioDeck configuration, the + package is supplied with the StudioTracker MM cartridge. MoFi's product listing specifically identifies the StudioDeck+ configuration with StudioTracker. The 6.4 g cartridge is within the tonearm's specified 5–10 g cartridge weight range.
General Specifications
| Brand |
MoFi Electronics |
| Model |
StudioDeck+ |
| Turntable Type |
Audiophile Belt-Drive |
| Motor |
300 RPM AC Synchronous |
| Speeds |
33⅓ / 45 RPM |
| Platter |
3/4-Inch Delrin |
| Platter Weight |
3.88 lb |
| Tonearm |
10-Inch Straight Aluminium, Gimbaled Bearing |
| Overhang |
18 mm |
| Offset Angle |
22.8° ± 2° Adjustable |
| Cartridge |
MoFi StudioTracker MM |
| Cartridge Weight |
6.4 g |
| Stylus |
Bonded Elliptical |
| Cartridge Output |
3.5 mV |
| Cartridge Frequency Response |
20 Hz – 20 kHz |
| Cartridge Tracking Force |
1.8 – 2.2 g |
| Cartridge Impedance |
47 kΩ |
| Wow & Flutter |
0.017% – 0.025% |
| Signal-to-Noise Ratio |
72 dB |
| Built-In Phono Stage |
No |
| USB |
No |
| Bluetooth |
No |
| Dimensions |
19.69 × 5.375 × 14.25 Inches |
| Weight |
19.1 lb |
| Power Consumption |
< 5 W |
Ideal For
- Audiophile vinyl playback systems
- Dedicated MM phono systems
- Integrated amplifiers with MM PHONO inputs
- Systems using an external high-quality MM phono stage
- Listeners wanting a factory-matched turntable and cartridge package
- Serious analogue listening setups
