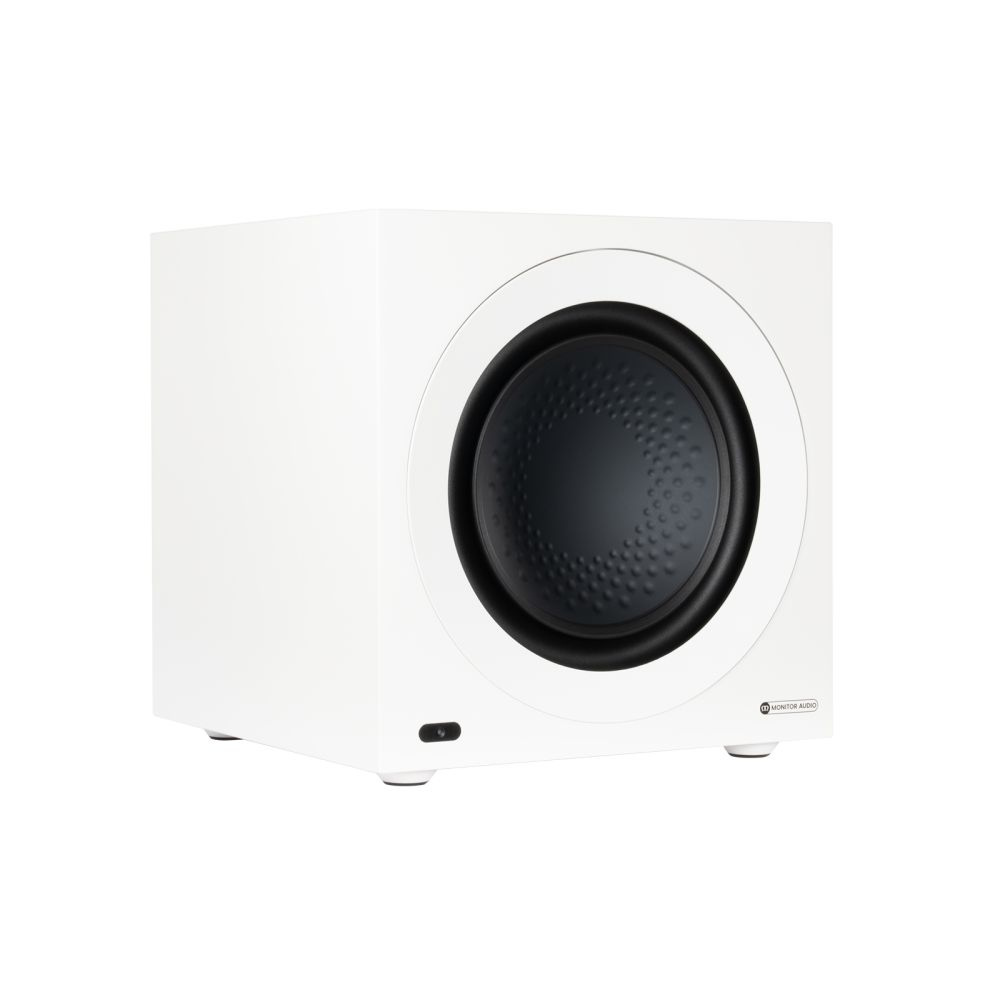

Anthra W12 Subwoofer
Engineered to deliver impressive bass in medium and large spaces, the Anthra W12 subwoofer features a formidable 1,000 Watt Class-D amplifier driving a 12” (30 cm) Rigid Surface Technology II (RST II) C-CAM high-excursion driver. The W12 can be used on its own or linked with up to three other Anthra subwoofers for a truly immersive, ultra-dynamic listening experience.

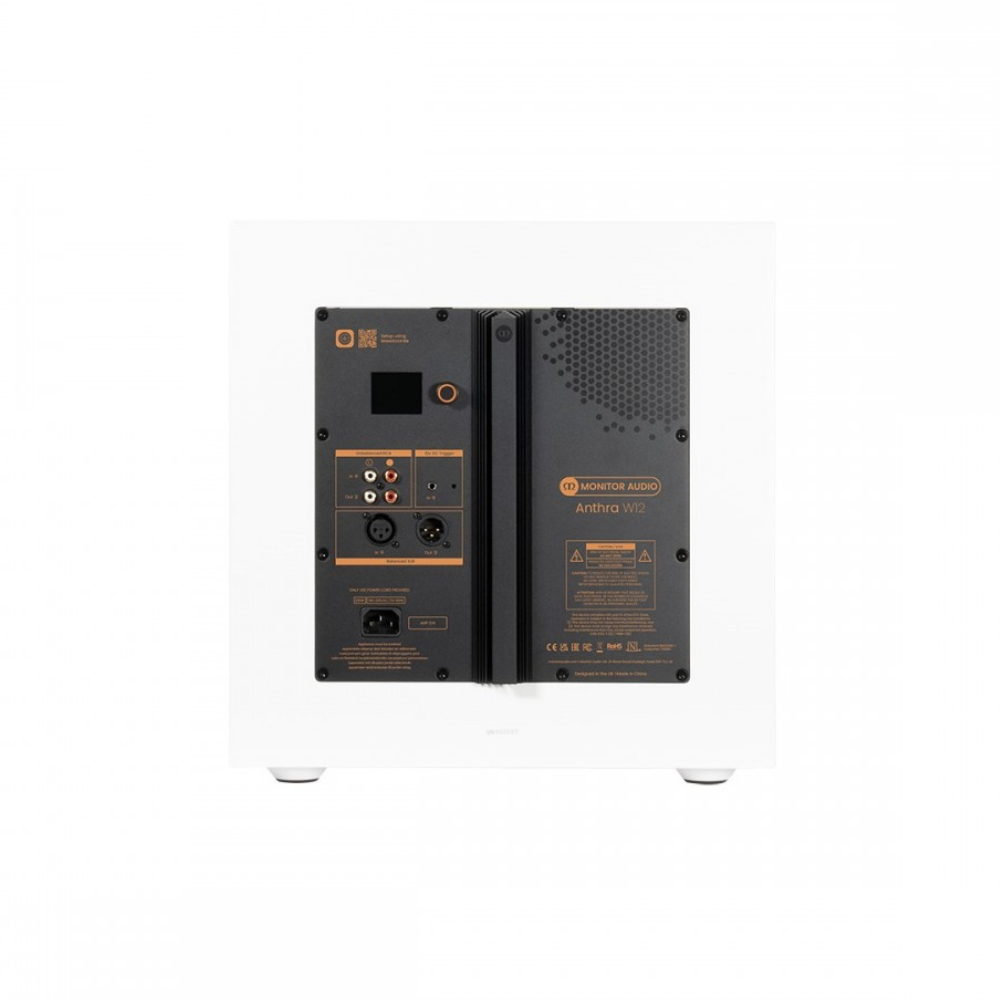

A full-colour LCD display and rotatory dial is located on the back panel, allowing for basic subwoofer setup and EQ preset selection. Advanced features including DSP configuration and multi-sub connectivity setup are available via the MaestroUnite app.
Key Features
- Powerful 1,000 Watt Class-D amplifier
- 12” (30 cm) Rigid Surface Technology II (RST II) C-CAM high-excursion driver
- Customizable DSP via the MaestroUnite app
- Full-colour LCD display and rotatory dial for easy setup
- Low-pass filter with adjustable roll-off (-3 to -48 dB/Oct)
- Up to four subwoofers can be linked for an immersive audio experience
- Universal mains input voltage (85-265VAC)
- Cloth-covered, magnetically attached grille for sleek design
Technical Specifications
| System Format |
Active - Sealed Cabinet |
| Drive Unit Complement |
1x 12” (305 mm) High Linear-Excursion Triple Suspension Driver |
| Amplifier Classification |
High-Efficiency Class-D |
| Lower Frequency Limit |
-6dB @16Hz |
| Upper Frequency Limit |
(LPF Off) -6dB @400Hz |
| Driver Excursion (pk-pk) |
50 mm |
| DSP |
28 Bit 50 MIPS Configurable through MaestroUnite |
| Analogue Digital Conversion |
Autoranging Input (10Vrms max input) |
| Amplifier Output Power, 240Vac |
Instantaneous: 1700 W*
Continuous short-term: 900 W** |
| Amplifier Output Power, 120Vac |
Instantaneous: 1325 W
Continuous short-term: 700 W |
| LED UI Control |
Brightness, On-Off |
| Phase Control |
0-360 Degrees measured at LPF Crossover |
| Low Pass Filter |
20-200Hz LPF with Roll off Adjustable from -3 to -48dB/Oct |
| Custom EQ |
Configurable through MaestroUnite; 3 pre-defined EQ curves plus 3 custom EQ curves (8 band custom EQ supporting Peaking, High Shelf, Low Shelf, High Pass) |
| Volume Level |
Wide adjustable input gain to allow maximum output from a wide range of input signals |
| Inputs |
Stereo Unbalanced RCA (or mono/LFE using only connector marked LFE)
Mono/LFE Balanced XLR |
| Outputs |
Stereo unbalanced outputs with unbuffered throughput from RCA Inputs
Mono/LFE Balanced XLR outputs with unbuffered throughput from XLR Input |
| Mains Input Voltage |
Universal Mains, 85-265VAC |
| External Dimensions (HxWxD) |
374 x 374 x 374 mm |
| Power Consumption |
200 W |
| Cabinet Construction |
Braced 25 mm thick MDF with 36mm front baffle |
| Grille |
Cloth covered magnetically attached Grilles |
| Weight |
28.56 kg (63 lb 1 oz) |
