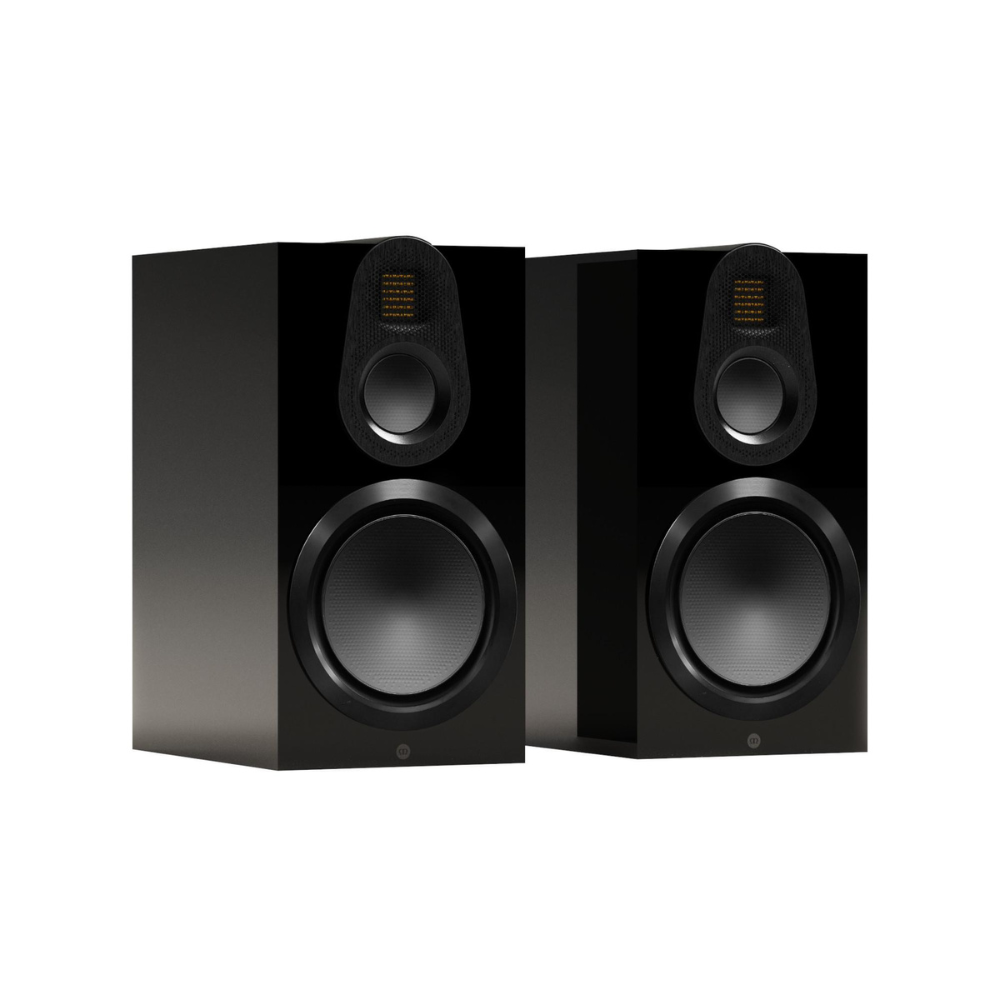

Gold 100 6G Stand-Mount Loudspeaker
The Gold 100 6G stand-mount loudspeaker delivers impressive high-fidelity sound, with deep bass and lifelike mid- and high-frequency definition. It features the latest MPD III high-frequency transducer alongside an HDT, C-CAM 3-inch mid-driver and 8-inch bass driver. The Gold 100 6G is a substantial stand-mount speaker, designed to create an astonishing soundstage with deep, extended bass and beautifully lifelike mid and high-frequency (MF/HF) definition. Its advanced design and cutting-edge technology deliver outstanding levels of high-fidelity sound with ease.
Key Features
- Three-way design
- 1 x MPD III high-frequency transducer
- 1 x 3-inch mid-driver featuring HDT, C-CAM cone technology
- Steel mid-pod enclosure with die-cast aluminium baffle
- 1 x 8-inch bass driver featuring HDT, C-CAM cone technology
- New crossover design utilizing carefully selected high-quality capacitors
- Ported cabinet design using HiVe II port technology and through-bolt technology
- Compatible with the ST-2 Universal Stand
- Finishes available: Macassar wood veneer, High-Gloss Black, and Satin White
- Individual driver ‘Magnetic grilles’ included
System Format
| Specification |
Details |
| System Format |
3-way |
| Sensitivity (2.83v @ 1m, Free-Field) |
86.5 dB |
| Sensitivity (2.83v @ 1m, Installed) |
N/A |
| Recommended Amplifier Power (RMS into 4 Ohm, Music Signal) |
130 – 500 W |
| Continuous Power Handling (CTA 426-B) |
250 W |
| Nominal Impedance |
4 Ohms |
| Minimum Impedance (20Hz to 20kHz) |
3.9 Ohms @ 140 Hz |
| Drive Unit Complement |
1 x 8” (203 mm) HDT C-CAM Bass Driver, 1 x 3” (76 mm) HDT C-CAM Mid-Range Driver, 1 x MPD III Tweeter |
| Frequency Response Free-Field (-6dB) |
49 Hz – 60 kHz |
| Frequency Response, In-Room (-6dB) |
32 Hz – 60 kHz |
| Maximum Peak SPL (AES75, Z-weighted) |
119 dB |
| Bass Alignment |
HiVe II Ported |
| Port Tuning Frequency |
38 Hz |
| Crossover Frequency |
LF/MF: 700 Hz, MF/HF: 2.6 kHz |
| External Dimensions with all accessories fitted (H x W x D) |
447.7 x 230 x 357.3 mm (17 5/8” x 9 1/16” x 14 1/16”) |
| Weight (each) |
14 kg (30 lb 14 oz) |
| Sold As |
Pair |
