Years Active 2012-2017

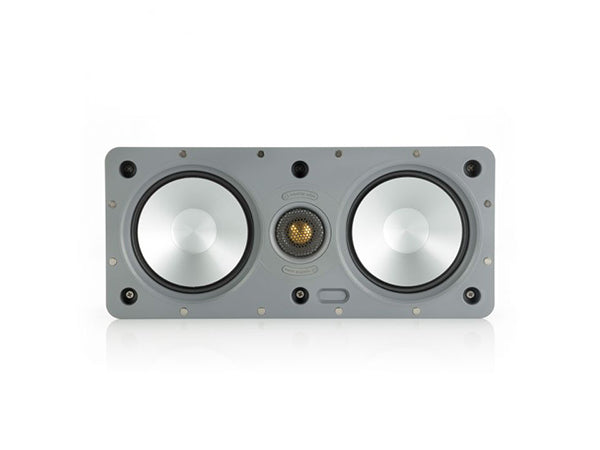

The 2-way WT150-LCR in-wall model with 5-inch drivers features Monitor Audio's MMP II cones coupled with a pivoting version of our C-CAM Gold Dome tweeter.
These in-wall models can be used vertically or horizontally: the ideal aspect for centre-channel applications in discreet home theatre systems.
Frequency Response
60 Hz – 30 kHz
Sensitivity (1W@1M)
88 dB
Power Handling (RMS)
100 W
Recommended Amplifier Requirements
30 – 100 W
Drive Unit Complement
2 x 5" MMP II cone bass driver
1 x 1" (25 mm) C-CAM pivoting Gold Dome tweeter
Overall Dimensions
Without Grille 165.8 x 373.6 mm (6 1/2" x 14 3/4")
With Grille 177.4 x 385.2 mm (7" x 15 3/16”)
Mounting Depth
100.2 mm (4")
Cut-Out Hole Diameter
Minimum 145 x 353 mm (5 3/4" x 13 7/8")
Required Clearance for Doglegs in Centre Configuration 400 x 197mm (15 3/4" x 7 3/4")
Fixing Type
Tri-Grip dog fixings
Construction Material
Mineral filled ABS, RoHS compliant
Pre-Construction Bracket
WB5 LCR
