Aspect Ratio
|
16:09
|
|
Brightness
|
2,400 ANSI lumens
|
|
Color Wheel
|
RGBRGB 6 segment color wheel
|
|
Compatible Aspect Ratio
|
16:9 (native), 4:3 and LBX compatible
|
|

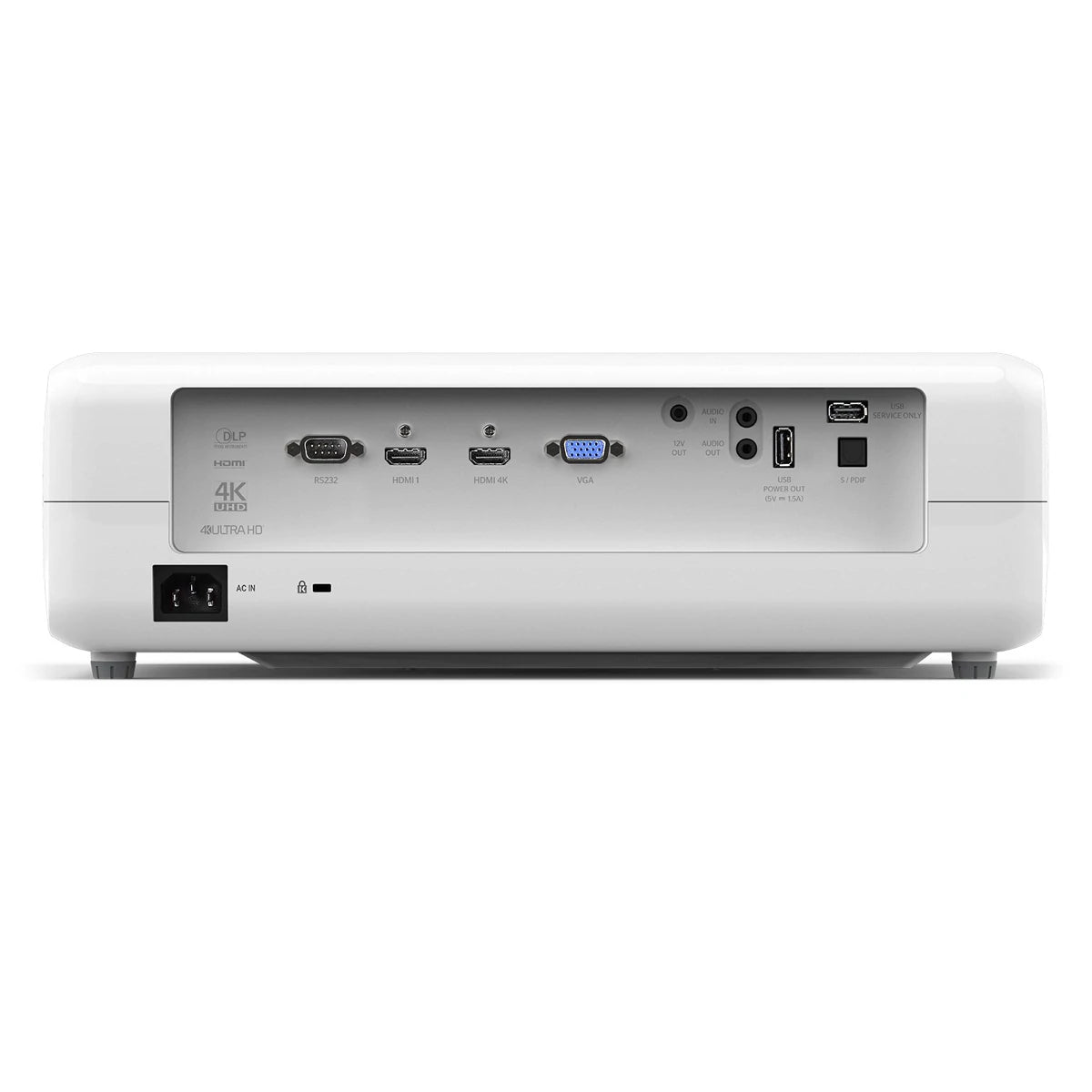

Connections
|
HDMI 2.0 (w/ HDCP 2.2, MHL 2.1), HDMI 1.4a, VGA-in, audio-in (3.5mm), audio-out, S/PDIF out (optical), USB 2.0 (service port), USB power, RJ-45, RS-232C, 12V Trigger
|
|
Contrast Ratio
|
Up to 500,000:1 with Dynamic Black
|
|
Display Technology
|
Single 0.47” TRP S450 4K UHD DMD DLP® Technology by
|
|
|
Texas Instruments™
|
|
Displayable Colors
|
1.07 billion
|
|
Image Size
|
34.1” – 302.4 (34.1” to 140” optimal image size)
|
|
Keystone Correction
|
± 40° Vertical
|
|
Light Source Type
|
240W
|
|
Light Source Life
|
4,000/10,000/15,000 (Bright/ECO/Dynamic)
|
|
Lens Shift
|
Vertical: +15%
|
|
Maximum Resolution
|
4K (4096 x 2160) @ 30Hz
|
|
Native Resolution
|
UHD (3840 x 2160)
|
|
Noise Level
|
25/28dB (Eco/Bright)
|
|
Offset
|
100% (see Vertical Lens Shift)
|
|
Operating Temperature
|
41–104°F (5–40°C), 85% max humidity
|
|
Power Consumption
|
-
317W typical (Bright mode), 348W max (Bright mode), 259W typical
-
(Eco+ mode), 285W max (Eco+ mode)
|
|
Power Supply
|
AC Input 100-240V, 50-60Hz, auto-switching
|
|
Projection Distance
|
2.9’ – 34.89’
|
|
Projection Lens
|
F=2.5 – 3.26, F=20.91 – 32.62 mm manual focus
|
|
Projection Method
|
Front, rear, ceiling count, tabletop
|
|
Projection Screen Size
|
34.1” – 302.4 (34.1” to 140” optimal image size)
|
|
Remote Control
|
Full Function Home Remote Control
|
|
Throw Ratio
|
1.21 – 1.59 ( with tolerance ±5%)
|
|
Uniformity
|
80%
|
|
Zoom Type
|
1.3x optical (manual); 0.8 – 2.0 digital
|
|
3D Compatibility
|
Frame-pack: 1080p24, 720p50 / 60, Side-by-side: 1080i50 / 60, 720p50 / 60, Over-under: WUXGA24, 720p50 / 60
|
|
Computer Compatibility
|
4K UHD 2160p, WUXGA, HDTV 1080p, UXGA, SXGA, WXGA+, WXGA (1366×768), WXGA, HDTV (720p), XGA, SVGA, VGA, PC and Mac compatible
|
|
Horizontal Scan Rate
|
31.000 to 135.000KHz
|
|
Optional Wireless
|
No
|
|
RoHS
|
Compatible
|
|
Vertical Scan Rate
|
24Hz to 120Hz
|
|
Video Compatiblity
|
4K UHD 2160p (24/50/60Hz), 1080p (24/50/60Hz), 1080i (50/60Hz), 720p (50/60Hz), 480i/p, 576i/p
|
|
Dimensions (W x H x D)
|
15.4” x 5.1” x 11.1”
|
|
Security
|
Kensington® lock port, password (OSD)
|
|
Weight
|
5.4kg
|
