5.1 home theater system to meet your needs: budget, style and space!
A home theatre system to meet your needs: budget, style and space!

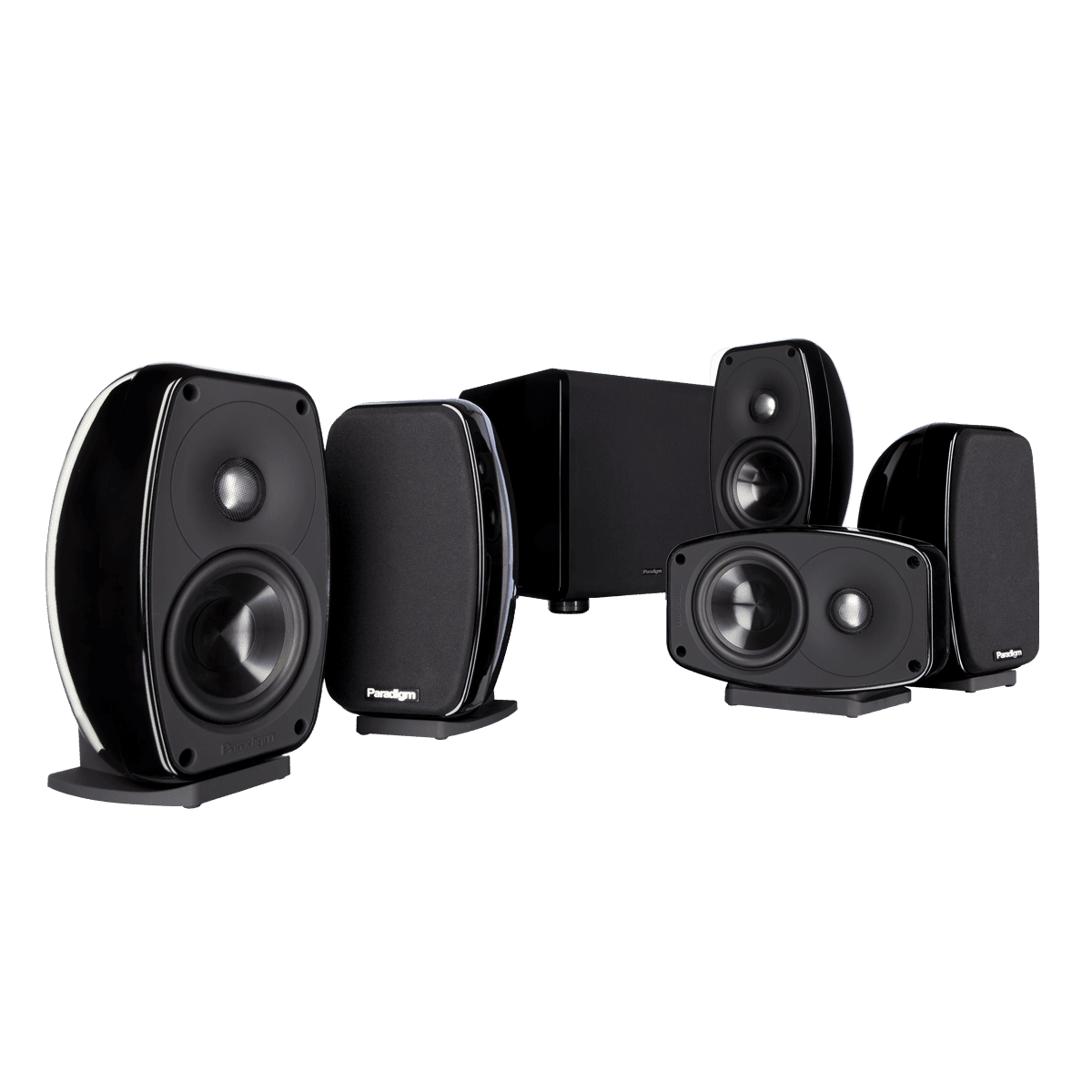

System includes: 5 x Cinema 100 Satellite Speaker 1 x Cinema Sub
When size and sound matter
While it’s true, there are tiny satellite speakers aided by small subwoofers that can be “hidden” in many living spaces, when it comes to great audiophile sound these systems had never delivered … until Cinema. For years now, Paradigm’s award-winning Cinema speakers have been delivering a seamless music and home theatre soundstage that brings movies to life and makes music sound “live.” Rumour has it that with this new generation of Cinema speakers, sound may be even better than actual movie theatres.
Superior S-PAL™ Satin-Anodized Pure-Aluminum Domes with powerful neodymium magnets and ferro-fluid cooling allow for increased power handling! Highs are transparent with a superb sense of air and exceptional spaciousness.
Wire Mesh Tweeter Guard and WaveGuide™ technology ensures a smooth, wide panorama of audiophile-quality sound.
Reference quality crossovers in an affordable audiophile system... almost unheard of!
Driver integration is virtually seamless across the full range of frequencies.
Push-thru Binding Posts with Easy-Glide™ Channels.
Superior 8˝ High-Excursion Driver made of a durable reinforced polymer composite that in concert with the superior suspension system and motor/magnet structure allow the cone to travel farther while maintaining effective control.
Built-In High-Current, Discrete Output Amplifier: 300 watts Dynamic Peak / 100 watts RMS Sustained.
Dual Ported Design for even and articulate response.
Amplifier Controls: Auto On / Standby / Soft Clipping Subwoofer Cut-Off Frequency Sub / Sat Phase Switch – 0° or 180°
Inputs: Two, line level
Two aesthetic placement options... gloss side up or cloth side up. Includes four easy-to-install feet.
SATELLITE SPEAKER SPECIFICATIONS
Design
|
2-driver, 2-way acoustic suspension mineral-filled polymer enclosure
|
Crossover
|
2nd order electro acoustic at 1.8 kHz
|
High Frequency Driver
|
1" (25 mm) S-PAL dome tweeter with Ferrofluid
|
Bass / Midrange Driver
|
-
4" (102 mm) mineral-filled polypropylene cone
-
1" (25 mm) high-temperature voice coil, advanced motor structures and oversized magnets
|
Low Frequency Extension
|
85 Hz (DIN)
|
Frequency Response
|
-
On-axis: ±2 dB from 125 Hz - 20 kHz
-
30° off-axis: ±2 dB from 125 Hz - 15 kHz
|
Sensitivity
|
-
Room: 88 dB
-
Anechoic: 85 dB
|
Suitable Amplifier Power Range
|
15 - 100 watts
|
Maximum Input Power
|
50 watts
|
Impedance
|
8 ohms compatible
|
Dimensions (HxWxD)
|
8.4 x 4.8 x 6.8" (21.2 x 12.2 x 15.7 cm)
|
Weight
|
4.0 lb (1.8 kg) each
|

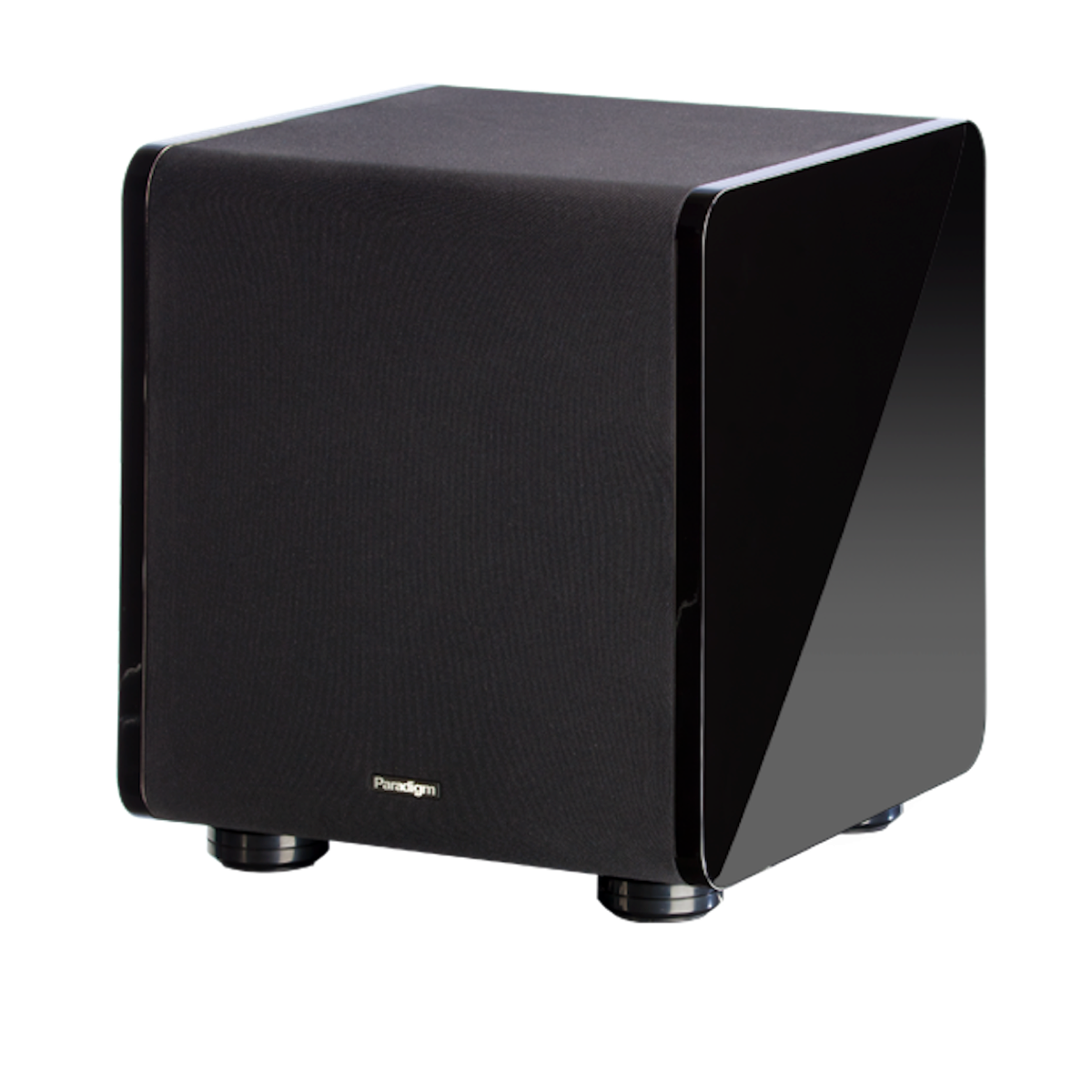

SUBWOOFER SPECIFICATIONS
Design
|
Single driver, bass reflex high velocity low turbulence resistive port
|
Amplifier
|
-
300 watts dynamic peak
-
100 watts RMS sustained
|
Driver
|
8" (210 mm) reinforced polymer composite cone, 1.5" (38 mm) voice coil
|
Low Frequency Extension
|
32 Hz (DIN)
|
Crossover
|
Variable 35 - 150 Hz; bypass option
|
Phase Control
|
0° or 180°
|
Input
|
Two RCA (L/R mono) for L/R line out or sub out/LFE out of receiver/processor or other line level source
|
Input Sensitivity
|
130 mV
|
Input Impedance
|
10k ohms
|
Dimensions (HxWxD)
|
13.4 x 12.7 x 12.7" (34.2 x 32.2 x 32.2 cm) (gloss side up, height includes feet)
|
Weight
|
21.4 lb (9.7 kg)
|
