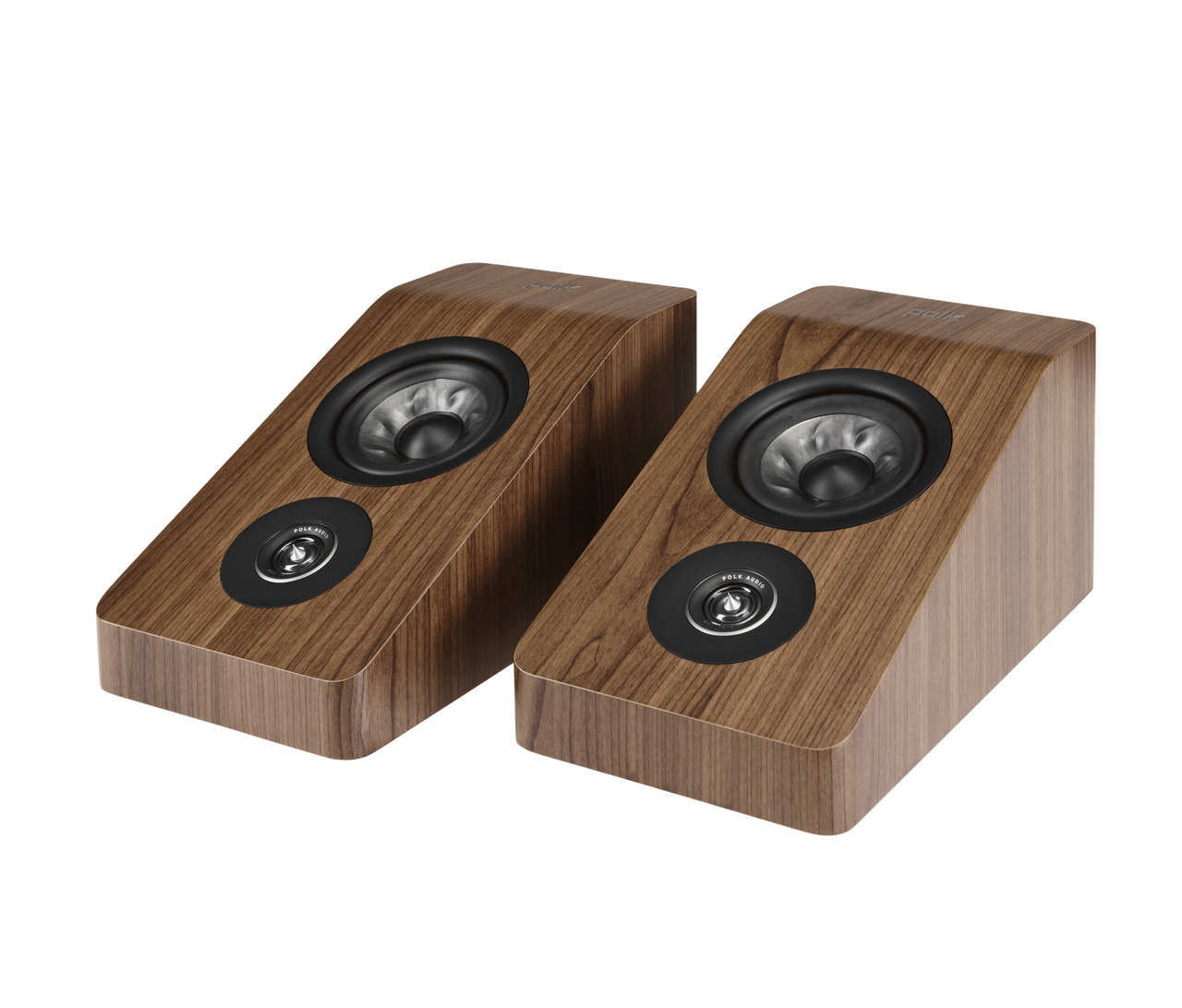

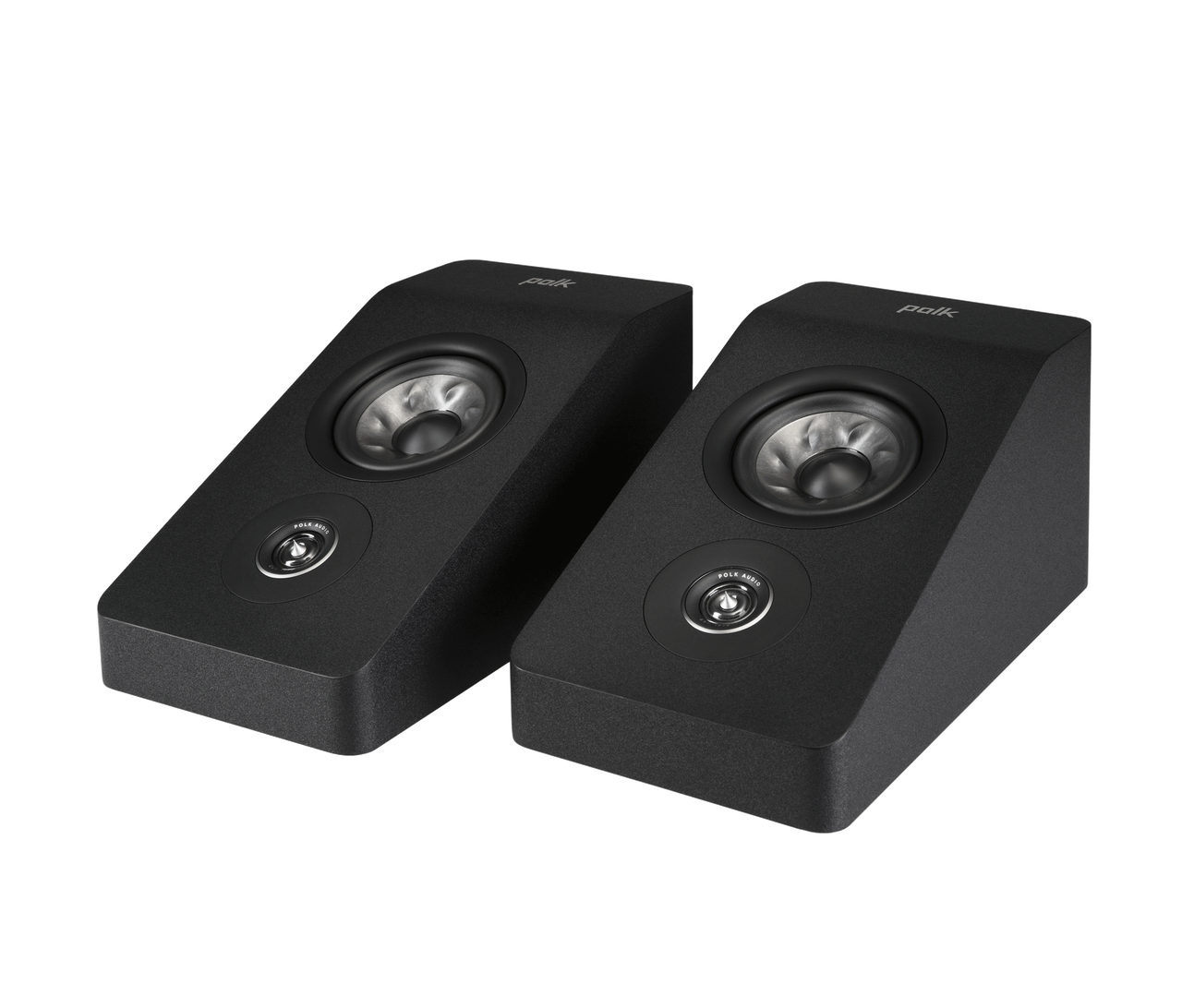

Polk Audio Reserve R900 – Premium Height Module Speakers (Pair)
The Polk Audio Reserve R900 is a premium height module speaker designed to add immersive overhead sound to a Polk Reserve home cinema system. Each speaker combines a 4-inch Turbine Cone woofer with a 0.75-inch Pinnacle Ring Radiator tweeter. The R900 can be placed on top of compatible Reserve speakers or wall-mounted, providing flexible integration for Dolby Atmos® and DTS:X® systems.
Key Features
-
Immersive Height Channel: Designed to add overhead sound effects and three-dimensional audio to compatible home cinema systems.
-
4" Turbine Cone Woofer: Polk's Turbine Cone construction improves cone rigidity without significantly increasing mass for accurate and detailed reproduction.
-
0.75" Pinnacle Ring Radiator Tweeter: Provides detailed high-frequency reproduction with wide dispersion.
-
Dolby Atmos® Compatible: Designed for immersive Dolby Atmos height-channel applications.
-
DTS:X® Compatible: Supports integration into compatible DTS:X immersive audio systems.
-
Flexible Placement: Can be positioned on top of compatible Reserve speakers or mounted directly to a wall.
-
Selectable Placement Mode: A rear-panel switch optimises the speaker's performance according to whether it is top-mounted or wall-mounted.
-
Timbre-Matched: Uses Reserve Series driver technologies for consistent tonal integration with other Polk Reserve speakers.
-
Sealed Enclosure: Compact sealed cabinet supports flexible placement without requiring a bass-reflex port.
-
Hi-Res Audio Certified: Designed for extended high-frequency reproduction and high-resolution audio performance.
Technical Specifications
| Product Type |
Passive Height Module Speaker |
| Series |
Polk Audio Reserve |
| Woofer |
1 × 4" Turbine Cone per Speaker |
| Tweeter |
1 × 0.75" Pinnacle Ring Radiator per Speaker |
| Overall Frequency Response |
50Hz – 50kHz (Wall-Mounted) |
| Frequency Response (-3dB) |
70Hz – 32kHz (Wall-Mounted) |
| Sensitivity |
85.5dB (2.83V / 1m, Wall-Mounted) |
| Minimum Impedance |
4.2Ω |
| Amplifier Output Compatibility |
4Ω / 6Ω / 8Ω |
| Recommended Amplifier Power |
45 – 100W per Channel |
| Crossover Frequency |
2.1kHz |
| Enclosure Type |
Sealed |
| Speaker Connections |
Single Nickel-Plated 5-Way Binding Posts |
| Wall Mountable |
Yes – Integrated Keyhole Slots |
| Placement |
Top-Mounted or Wall-Mounted |
| Hi-Res Audio Certified |
Yes |
| Available Finishes |
Black / Walnut / White |
| Dimensions (W × H × D) |
166 × 158.3 × 320mm per Speaker |
| Weight |
3kg per Speaker |
| Quantity |
Pair (2 Speakers) |
System Integration
The Reserve R900 can be placed on top of compatible Polk Reserve R700, R600, R500 or R200 speakers, or wall-mounted as a dedicated height channel. A rear-panel switch allows the speaker to optimise its response for the selected installation method, making it a flexible solution for expanding a Reserve Series system with immersive three-dimensional audio.
