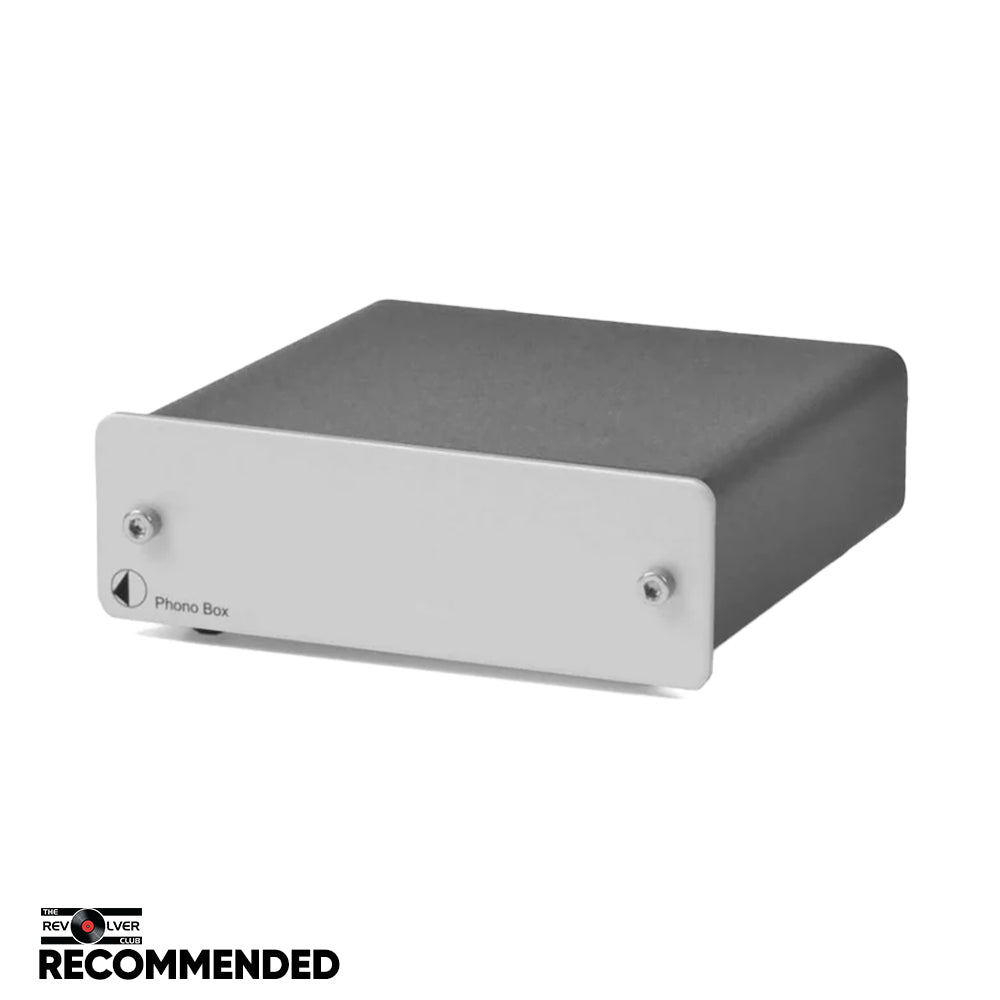

Pro-Ject Phono Box Classic
This product is currently sold out.
MM/MC Phono preamp with line output
Phono Box: Best buy classic for pure vinyl listening pleasure!
Today, many amplifiers do not have a specific phono cartridge input. Phono Box is an ideal phono preamplifier for this HiFi system and accepts both MM and MC cartridges. The analog output of Phono Box can easily be connected to line input (AUX,…) of your amplifier.
|Input impedance, MM||47 ohms/120 pF|
|Input impedance, MC||100 ohms / 120 pF|
|Gain, MM||40 dB|
|Output voltage typically||300 mV/1 kHz at 3 mV/1 kHz (MM input)|
|Gain, MC||60 dB|
|Output voltage typically||300 mV / 1 kHz at 0,3mV/1 kHz (MC input)|
|Max. output||9.5V (1kHz)|
|Noise floor, MM||94 dBA|
|Noise floor, MC||75 dBA|
|Riaa-equalization curve accuracy||20 Hz - 20 kHz / max. 0,5 dB|
|Outboard power supply||18V / 200 mA DC, suitable for your country's mains supply|
|Standby power consumption||< 1 watts|
|Dimensions W x H x D||103 x 36 x 104 (115 mm with sockets)|
