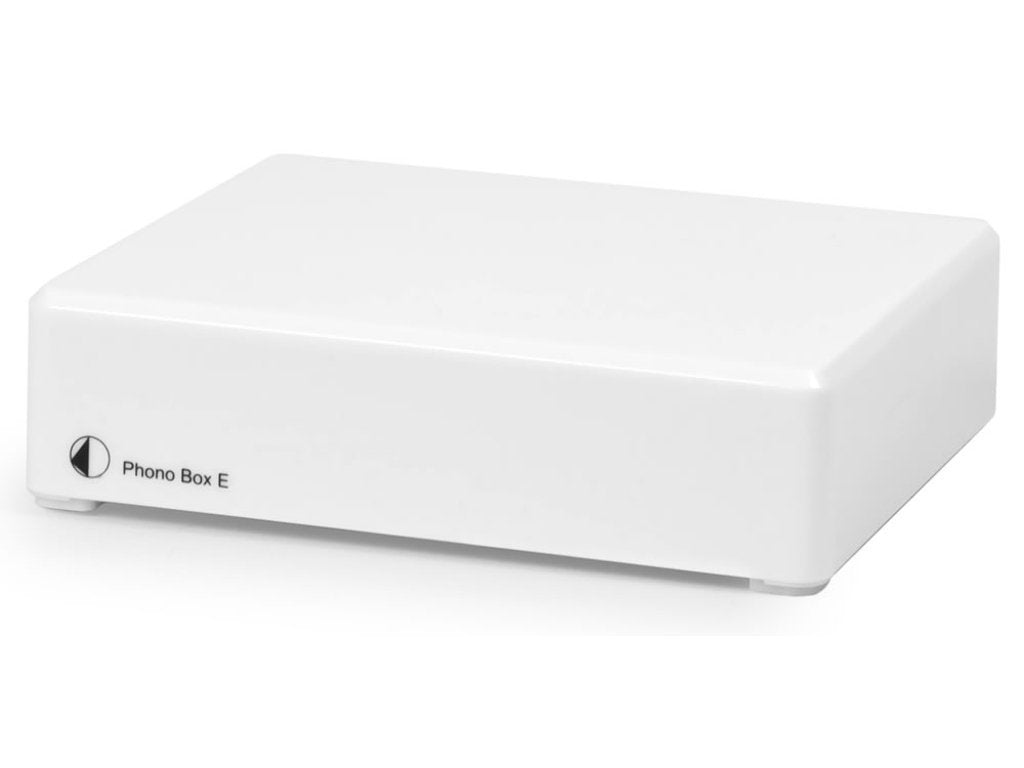

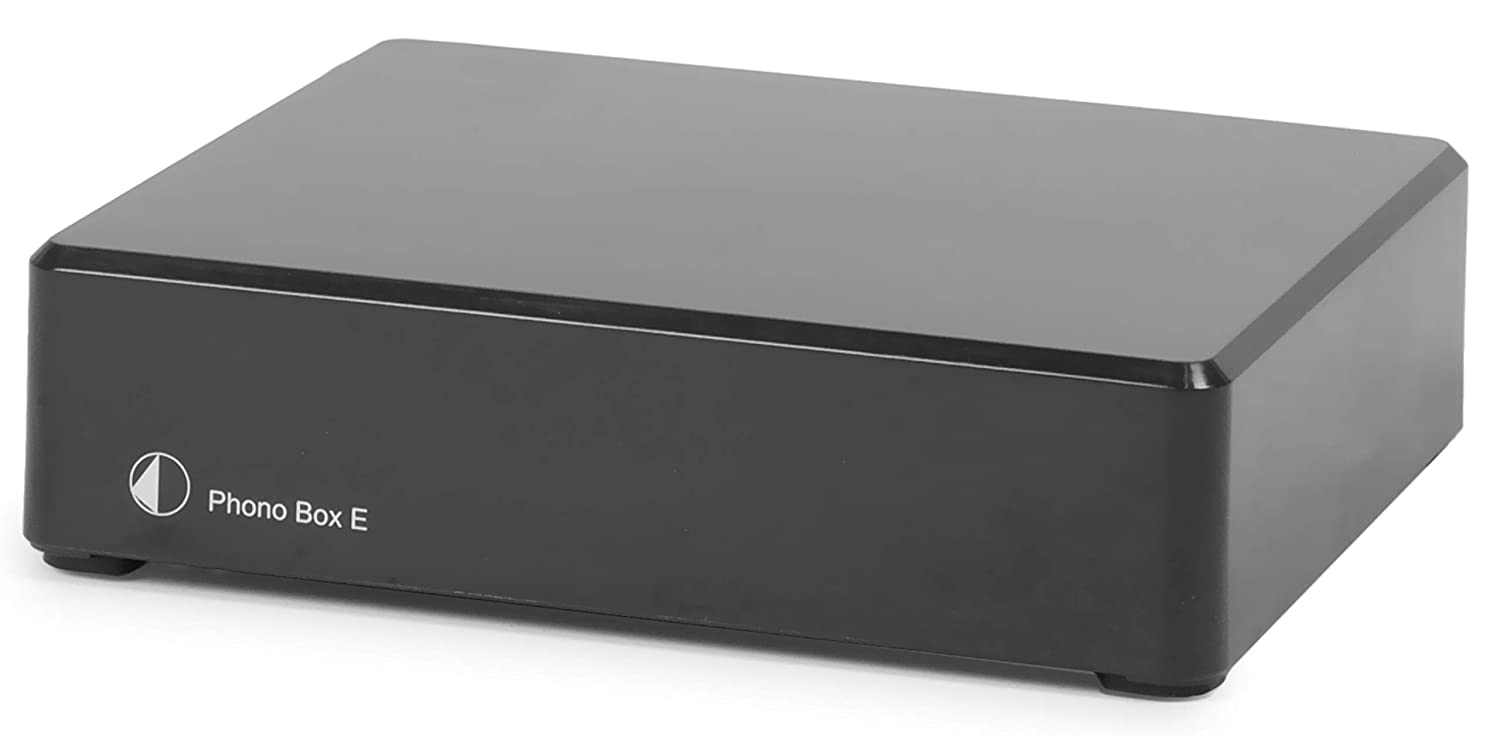

Today, many amplifiers do not have a specific phono cartridge input. Phono Box E is an ideal phono preamplifier for these hifi systems. Phono Box E accepts MM cartridges and offers an audiophile music experience at an entry level price. Advanced circuitry and SMD construction keep noise and distortion at a surprisingly low level. A built-in internal shielding and an outboard DC power supply leave no risk for external interference. Because of its small casing, Phono Box E can be placed near the turntable. Input and output sockets are gold-plated for preservation of quality. Phono Box E can be connected easily to a line-input (AUX etc) of your amplifier.

KEY FEATURES

• Amplification and RIAA equalisation for MM cartridges
• Design principle inspired by Dr. Sykora
• SMD circuitry
• Special low noise components
• Internal metal shielding
• Small size allows installation close to record player
• Gold plated RCA connection sockets
• Outboard power supply included
• Black or White casing

Technical Specification

• Input impedance - 47 kohms
• Input capacitance - 120 pF
• Gain - 40 dB
• Output voltage(typically) - 500mV/ 1kHz at 5mV/1kHz
• Noise floor - 88 dB (A weighted)
• THD - <0,05%
• RIAA deviation - deviation max. 0.5 dB/ 20 Hz - 20 kHz
• Input - 1 pair RCA socket
• Output - 1 pair RCA socket
• Outboard power supply - 18 V/500 mA DC; 220 - 240 V, 50 Hz
• Standby power consumption - < 1 watt
• Power consumption - 20 mA DC
• Dimension W x H x D (D with sockets) - 120 x 32 x 100 (106) mm
• Weight - 269 g without power supply
