The SubSeries 450 Powered Subwoofer is PSB’s flagship audiophile subwoofer, with the highest level of bass performance to date. Using a Class D amplifier and DSP technology to bring the frequency response down to 20Hz, the SubSeries 450 can intensify the earth-rattling explosions of movie soundtracks, with accuracy and precision. It also delivers deep, detailed bass with extremely low distortion for a larger, more amphitheatre-like soundstage that lets you feel the kick of a bass drum and the heavy cinematic footsteps lurking nearby.

Most powerful, advanced subwoofer we’ve ever built.
A true PSB flagship design, the SubSeries 450 is crafted using the highest quality components, custom-tooled mechanics, and innovative driver technologies. PSB’s careful engineering and precision manufacturing results in a subwoofer that is dead flat to 20Hz and can produce power in excess of 100dB sound pressure level so you feel it–not hear it.

Powered by NAD amplification
Designed in collaboration with sister company NAD Electronics, the SubSeries 450 employs a custom-designed, high-current 400 watt MOSFET amplifier that uses advanced digital signal processing technology to deliver the flattest possible frequency response with extremely low distortion at high output levels. The amp is then perfectly matched with a 12” (300mm) front-firing woofer and two side-firing passive radiators for tight, powerful bass response.

Seamless system integration
Designed to add crystal-clear bass to any music or home theatre system, the SubSeries 450 employs adjustable volume, crossover, a variable 180° phase/delay controls, and multiple connection options. This allows for flexible placement and seamless integration with the other speakers in your system. Finally, the feeling of watching a film in a movie theatre can now be experienced within the comfort of your own home.

KEY FEATURES

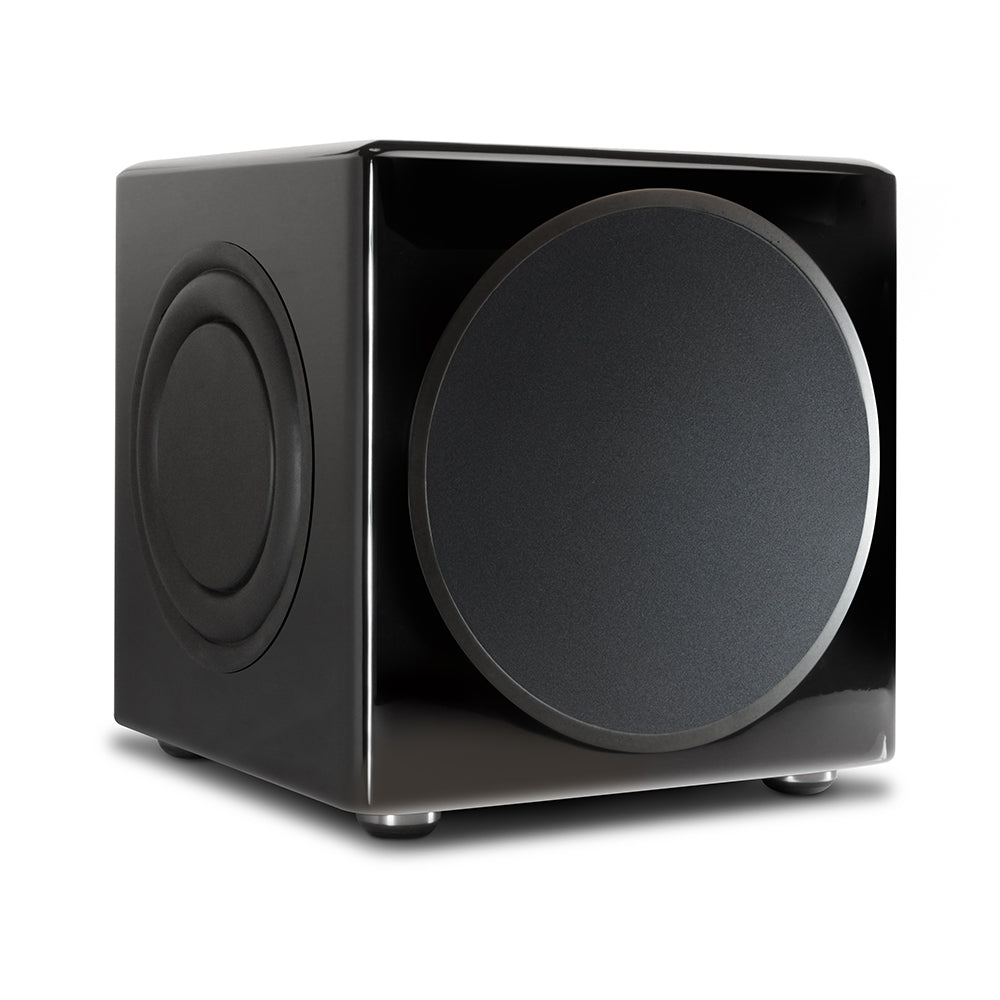

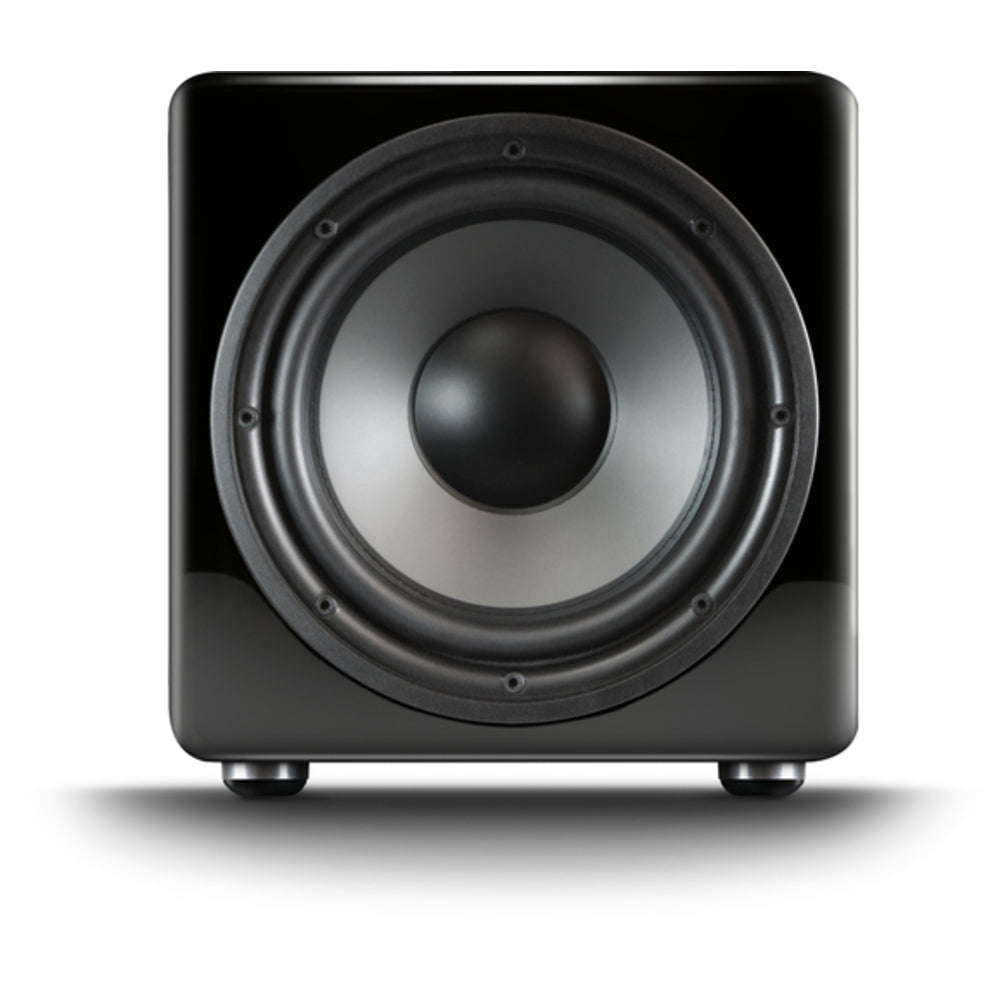

• Active front-firing 12” (300mm) polypropylene woofer with two 10” (250mm) passive radiators

• Built with a custom Class D Discrete MOSFET amplifier from NAD Electronics

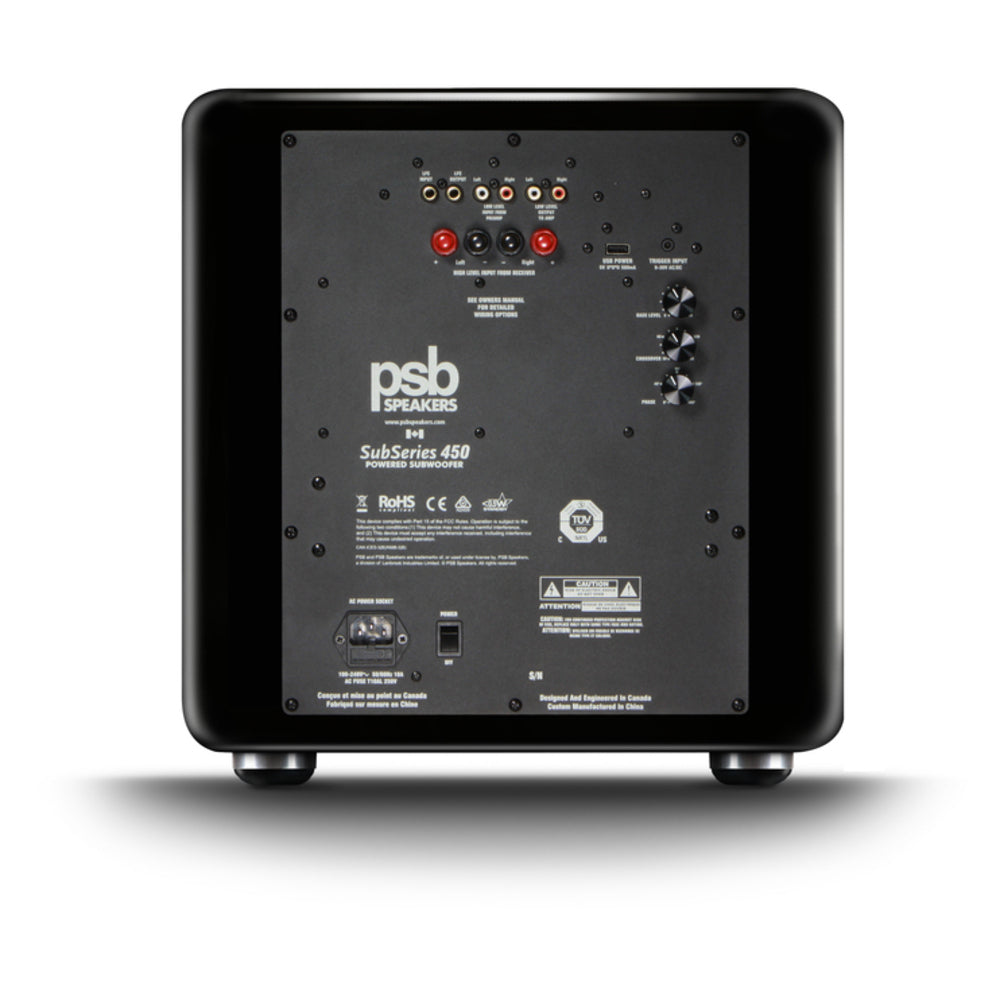

• Rear panel volume, crossover, and variable 180° phase controls
• Line-level, LFE inputs/outputs and gold-plated binding posts
• Beautiful soft-edged cabinet with a high-gloss black finish
• Ultra-low, energy-saving power consumption

Technical Specification

• Frequency Response
  On Axis @ 0° ±3dB - 20-150Hz
  LF Cutoff -10dB - 15Hz

• Amplifier Power
  Continuous - 400 Watts
  Dynamic, Peak - 1000 Watts

• Acoustic Design
  Woofer (Nominal) - 12” (300mm) Polypropylene Cone
                                  Rubber Surround
                                  2” (50mm) Voice Coil
                                  50oz (1400g) Magnet
  Crossover - Variable 50-150Hz, LR4
                     Low Pass Filter
  Design Type - Sealed

• Dimensions / Weights
  Size (W x H x D) - 15 3/8 x 15 1/8 x 16 5/8” (390 x 384 x 420mm)
  Weight - Net - 43lb (19.5kg)/each
                 Shipping - 50lb (22.7kg)/each
