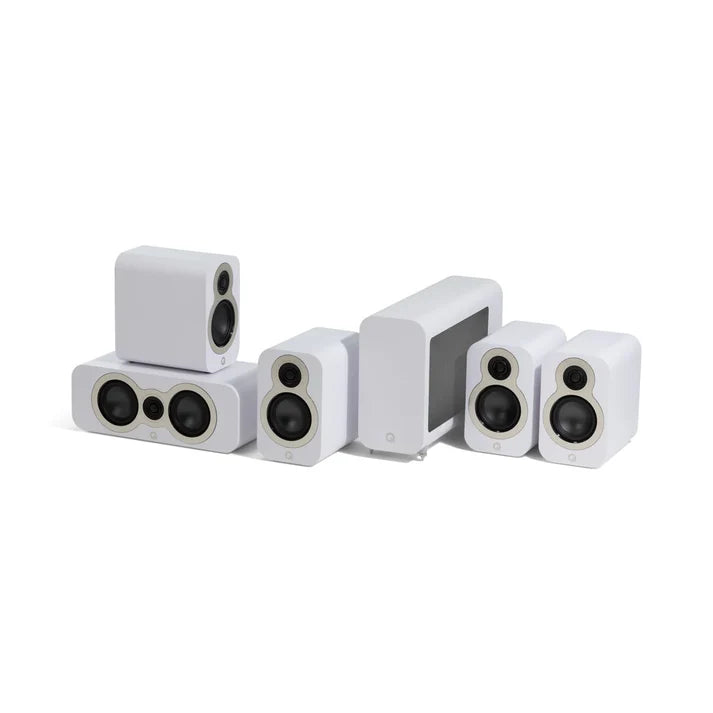

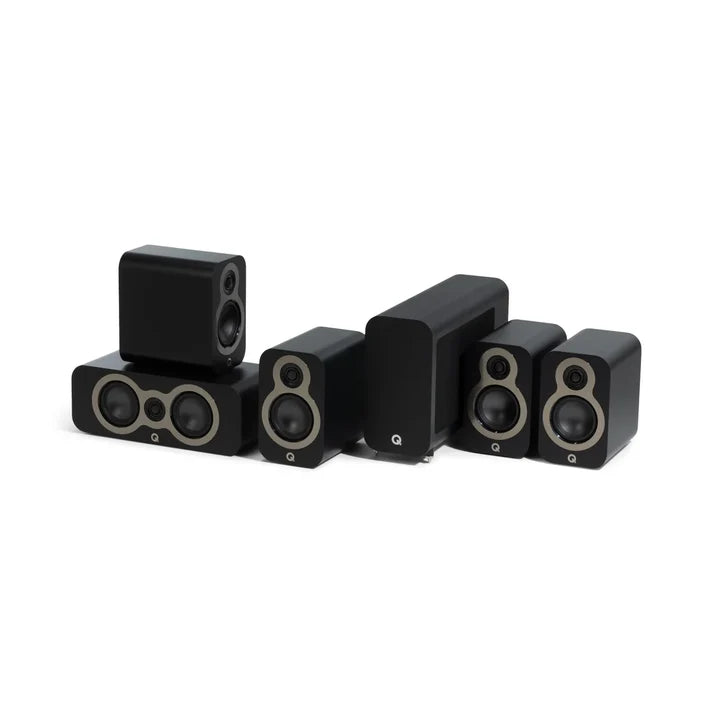

Q Acoustics 3010c 5.1 Home Cinema Speaker Set
The Q Acoustics 3010c 5.1 Set is a compact home cinema speaker package built around the 3000c Series. It includes two pairs of 3010c bookshelf speakers for front and surround channels, one 3090c centre speaker for dialogue, and one 3060S powered subwoofer for low-frequency effects. Q Acoustics officially lists this exact 5.1 configuration as part of the 3000c family.
Package Includes
- 2 Pairs × Q Acoustics 3010c Bookshelf Speakers — 4 speakers total
- 1 × Q Acoustics 3090c Centre Channel Speaker
- 1 × Q Acoustics 3060S Powered Subwoofer
Key Features
-
Complete 5.1 Speaker Package: Front left/right, surround left/right, dedicated centre channel and powered subwoofer.
-
C³ Continuous Curved Cone™ Technology: Used in the 3010c and 3090c mid/bass drivers for controlled bass, clear midrange and smooth driver integration.
-
Dedicated Centre Channel: The 3090c uses twin 101mm mid/bass drivers and a 22mm tweeter for focused dialogue reproduction. :contentReference[oaicite:1]{index=1}
-
Compact 3010c Satellites: The 3010c uses a 101mm mid/bass driver and 22mm tweeter in a compact enclosure suitable for front or surround duties. :contentReference[oaicite:2]{index=2}
-
Powered 3060S Subwoofer: An 8-inch driver with 150W Class-D amplification extends low-frequency response for movies and music. :contentReference[oaicite:3]{index=3}
Technical Specifications
| System Type |
5.1 Passive Speaker Package with Powered Subwoofer |
| Total Speakers |
6 Units |
| Front Speakers |
2 × Q Acoustics 3010c |
| Surround Speakers |
2 × Q Acoustics 3010c |
| Centre Speaker |
1 × Q Acoustics 3090c |
| Subwoofer |
1 × Q Acoustics 3060S |
Q Acoustics 3010c Specifications
| Bass / Midrange Driver |
1 × 101mm (4") |
| Treble Driver |
1 × 22mm (0.9") |
| Frequency Response (-6dB) |
60Hz – 30kHz |
| Nominal Impedance |
6Ω |
| Minimum Impedance |
3.7Ω |
| Sensitivity |
85dB (2.83V / 1m) |
| Recommended Amplifier Power |
15 – 80W |
| Crossover Frequency |
3.1kHz |
| Dimensions (H × W × D) |
254 × 155 × 251mm per Speaker |
| Weight |
4.4kg per Speaker |
Q Acoustics 3090c Specifications
| Bass / Midrange Drivers |
2 × 101mm (4") |
| Treble Driver |
1 × 22mm (0.9") |
| Frequency Response (-6dB) |
68Hz – 30kHz |
| Nominal Impedance |
6Ω |
| Minimum Impedance |
3.7Ω |
| Sensitivity |
92dB (2.83V / 1m) |
| Recommended Amplifier Power |
25 – 120W |
| Crossover Frequency |
2.9kHz |
| Dimensions (H × W × D) |
159 × 430 × 216mm |
| Weight |
6.5kg |
Q Acoustics 3060S Subwoofer Specifications
| Product Type |
Powered Subwoofer |
| Driver |
200mm (8") |
| Enclosure Type |
Infinite Baffle |
| Frequency Response |
35Hz – 250Hz |
| Internal Amplifier Power |
150W Class-D |
| Crossover |
Variable 35Hz – 250Hz |
| Effective Volume |
10.6L |
| Dimensions (H × W × D) |
300 × 480 × 150mm |
System Configuration
Use one pair of 3010c speakers as the front left and right channels and the second pair as the surround left and right channels. The 3090c handles centre-channel dialogue and on-screen effects, while the powered 3060S reproduces the LFE channel and deeper bass. A compatible 5.1 AV receiver is required to power the five passive speakers and provide the subwoofer signal.
What's Included
- 4 × Q Acoustics 3010c Speakers
- 1 × Q Acoustics 3090c Centre Speaker
- 1 × Q Acoustics 3060S Powered Subwoofer
- Speaker Grilles
- Foam Bungs as supplied with the individual speakers
- Owner's Documentation
