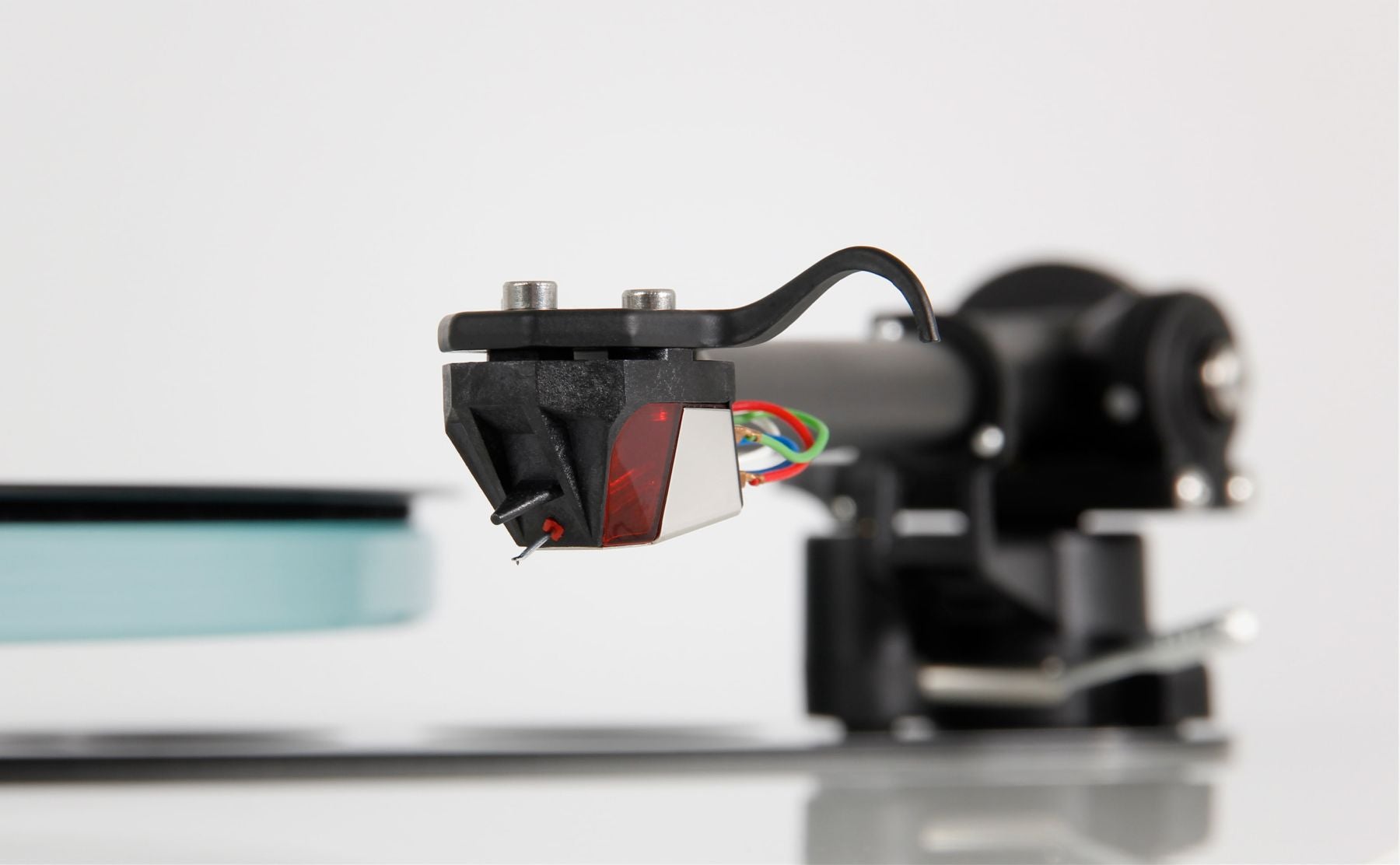

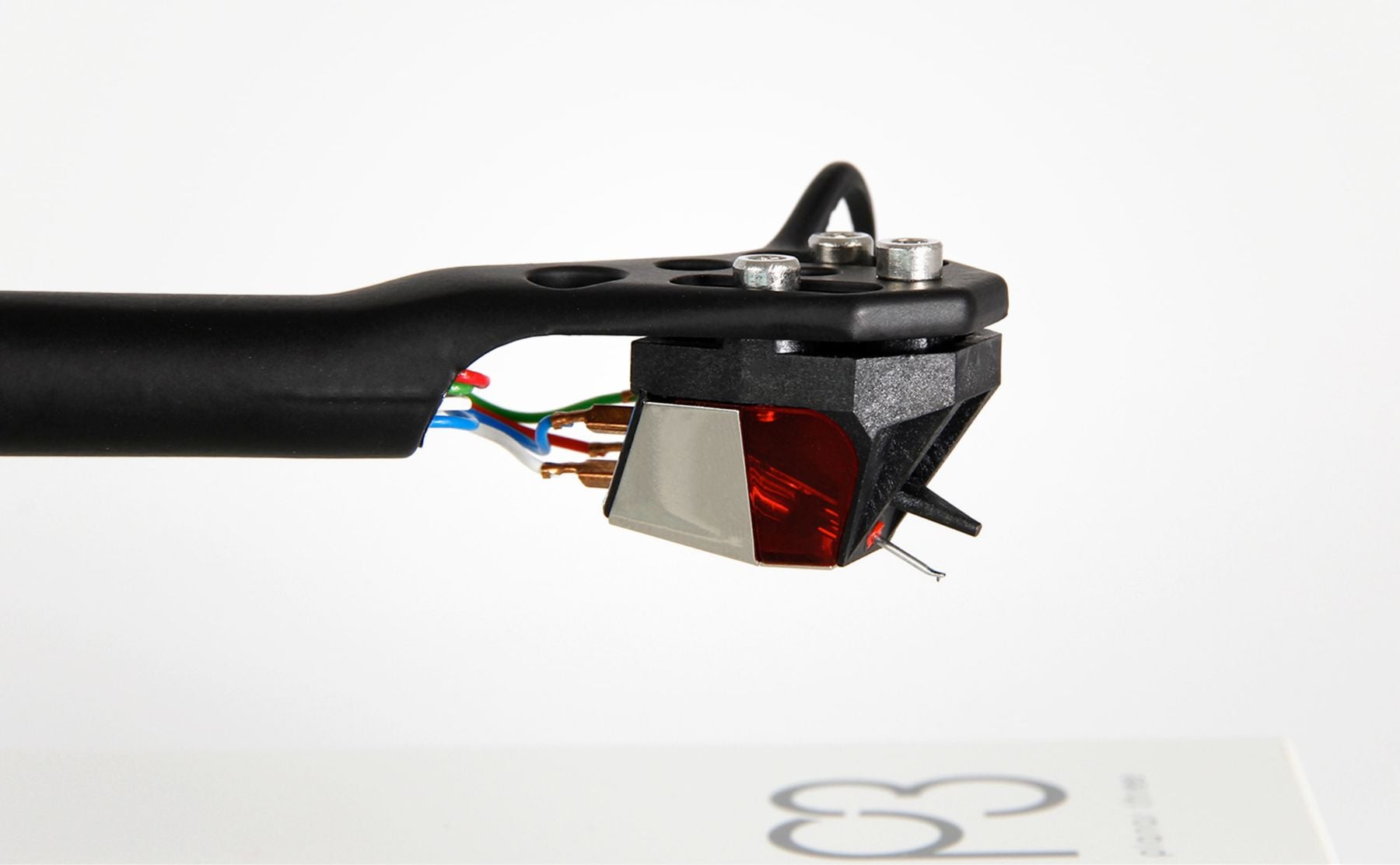

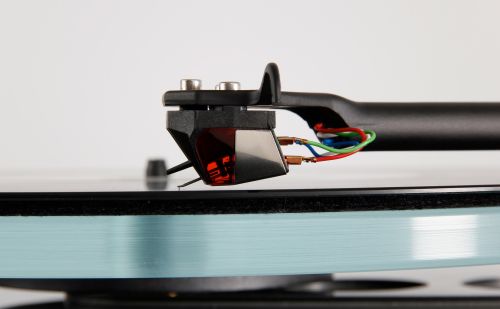

Rega Nd3 Moving Magnet Cartridge
The Rega Nd3 is a premium moving magnet cartridge developed to deliver exceptional detail, dynamics and musical accuracy. Replacing the acclaimed Elys 2, it introduces Rega's innovative Nd generator technology, utilizing an ultra-high-powered neodymium magnet, miniaturised parallel coils and a bonded elliptical diamond stylus for outstanding tracking and performance.
Designed and hand-built in England, the Nd3 features Rega's rigid glass-filled PPS body and proprietary three-point mounting system, ensuring optimal alignment and rigidity when installed on compatible Rega tonearms.
Key Features
- Premium Moving Magnet (MM) cartridge
- Advanced Nd generator with neodymium magnet
- Bonded elliptical diamond stylus
- Aluminium cantilever
- Glass-filled PPS low-resonance body
- Miniaturised parallel coil generator
- Three-point Rega mounting system
- Factory compatible with Rega Planar 2 & Planar 3
- Hand-built in England
Technical Specifications
| Cartridge Type |
Moving Magnet (MM) |
| Stylus Profile |
Bonded Elliptical Diamond |
| Cantilever |
Aluminium |
| Generator |
Miniaturised Parallel Coil with Neodymium Magnet |
| Body Material |
Glass-Filled PPS |
| Mounting |
Rega Three-Point Fixing |
| Nominal Output Voltage |
5ā6mV |
| Recommended Tracking Force |
1.75g |
| Load Resistance |
47kΩ |
| Load Capacitance |
100ā200pF |
| Cartridge Colour |
Green |
| Country of Manufacture |
England |
Compatibility
- Rega Planar 2
- Rega Planar 3
- Compatible Rega tonearms with three-point mounting
- Any amplifier or phono preamplifier with a Moving Magnet (MM) phono input
What's Included
- Rega Nd3 Moving Magnet Cartridge
- Stylus Guard
- Mounting Hardware
- Installation Instructions
Ideal For
- Upgrading from the Rega Carbon or Elys 2 cartridge
- Rega Planar 2 and Planar 3 owners
- Audiophiles seeking greater detail and dynamics
- High-quality two-channel Hi-Fi systems
