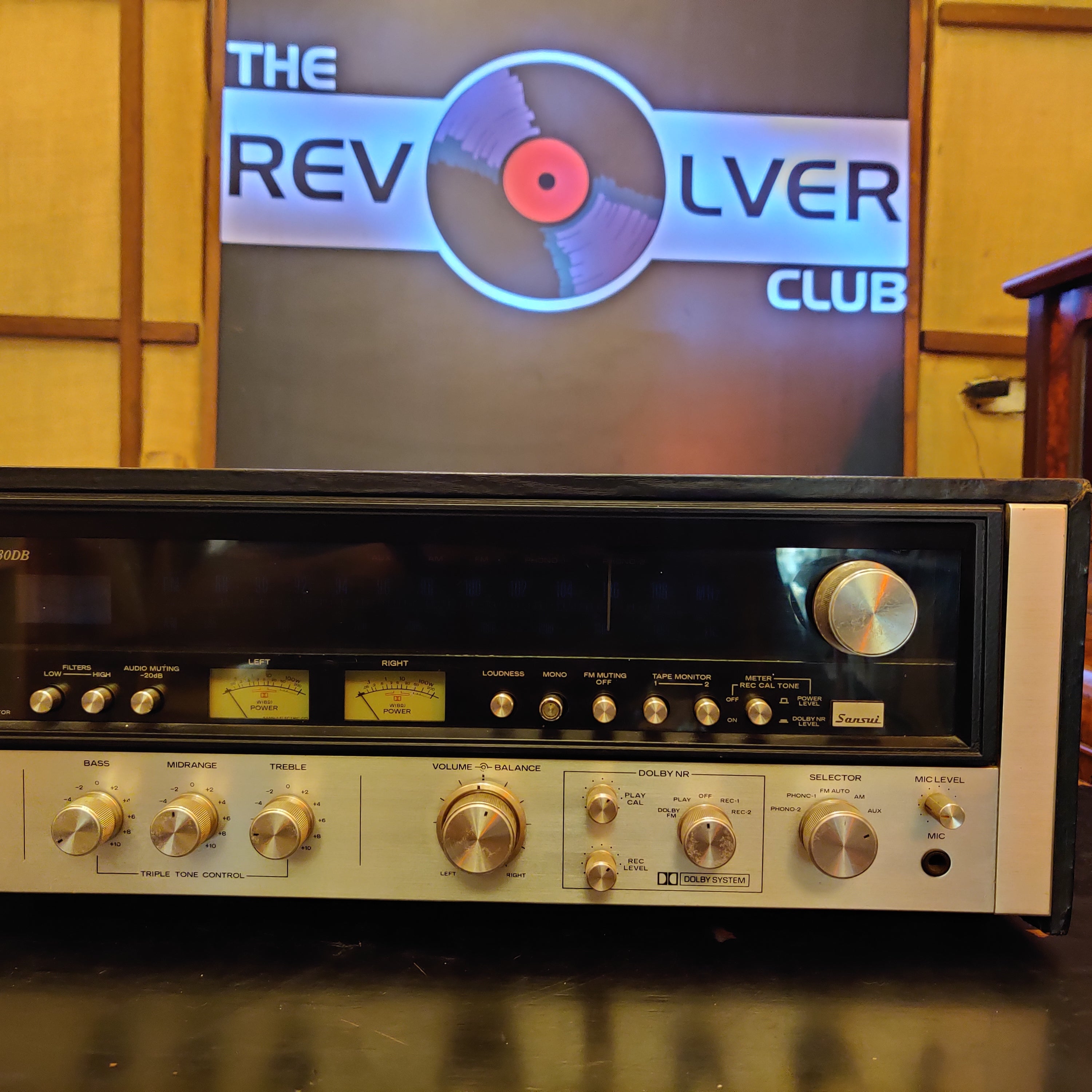

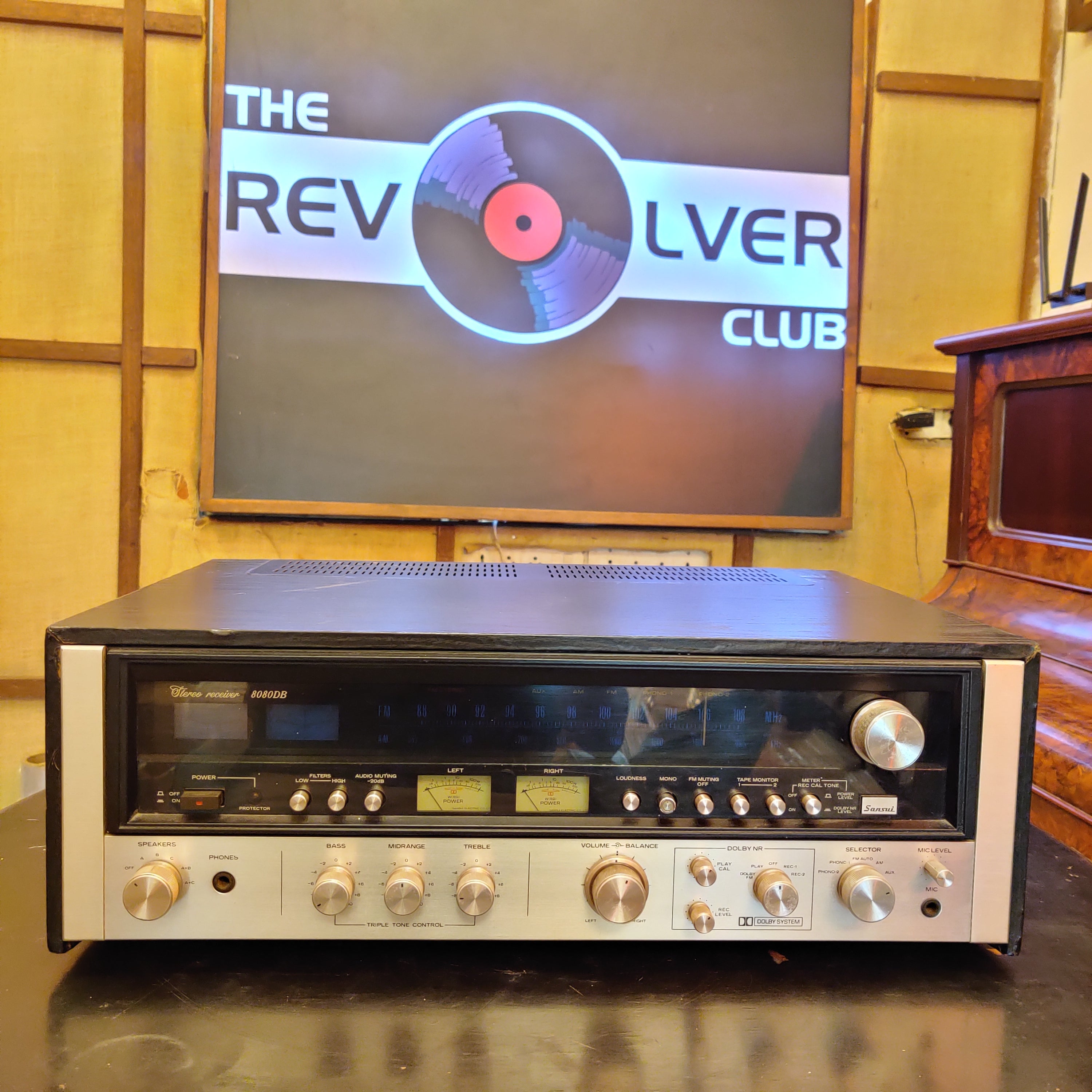

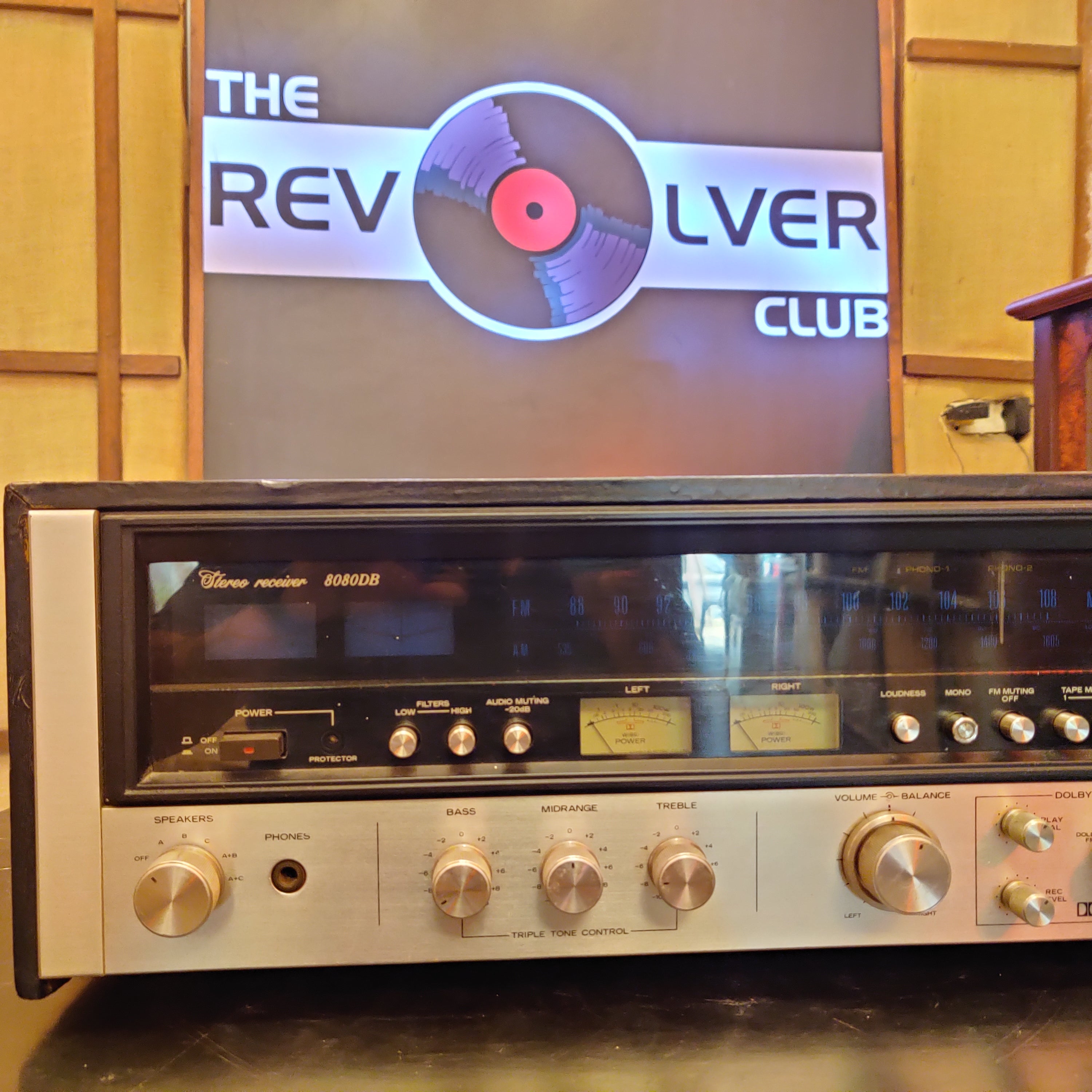

The 8080DB is a combination of power and sophistication in a stereo AM/FM receiver.

It outputs a stable 85 watts per channel and has a built in Dolby processor, triple tone controls and four accurate meters.

Technical Specification

• Tuning range: FM, MW
• Power output: 85 watts per channel into 8Ω (stereo)
• Frequency response: 10Hz to 30kHz
• Total harmonic distortion: 0.1%
• Damping factor: 30
• Input sensitivity: 4mV (mic), 2.5mV (MM), 150mV (DIN), 150mV (line)
• Signal to noise ratio: 70dB (MM), 80dB (DIN), 80dB (line)
• Channel separation: 50dB (MM), 50dB (line)
• Output: 150mV (line), 30mV (DIN), 0.775V (Pre out)
• Dimensions: 540 x 182 x 397mm
• Weight: 20.7kg
