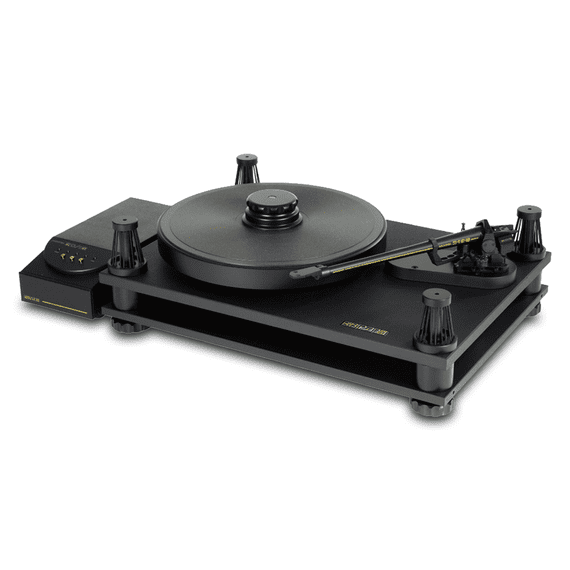

SME Model 20/12 Mk2 with Series Vᵢ Tonearm

The SME Model 20/12 Mk2 is a high-end precision turntable designed for demanding vinyl playback. Its substantial high-mass construction, suspended sub-chassis and advanced damping system provide a stable platform for the large-diameter platter, while the supplied SME Series Vᵢ tonearm provides precise cartridge control and tracking.

Key Features

• SME Model 20/12 Mk2 precision turntable.
• SME Series Vᵢ tonearm.
• High-mass CNC-machined aluminium construction.
• 16 mm main chassis and sub-chassis plates.
• Suspended sub-chassis with 40 dedicated suspension rings.
• Central fluid-damping system.
• Precision close-tolerance main bearing.
• Large 12-inch-compatible 325 mm precision-machined platter.
• 6.5 kg aluminium platter.
• Iso-Damp and diamond-turned platter surface.
• Custom bi-phase AC synchronous motor.
• DSP-based electronic speed control.
• 33⅓ and 45 RPM operation.
• Fine speed adjustment in ±0.01% increments.
• Crystal Cable internal tonearm wiring.
• Four adjustable mechanically de-coupled feet.
• Separate Power Unit and Speed Control Unit.
• Reflex-principle screw-down record clamp.

High-Mass Chassis

The Model 20/12 Mk2 uses a rigid, precision-machined aluminium chassis designed to provide a stable foundation for the platter, bearing and tonearm. The substantial construction is combined with damping treatments to control unwanted mechanical resonance.

Suspension & Fluid Damping

The suspended sub-chassis isolates the record-playing platform from external mechanical energy. The system uses 40 purpose-made suspension rings together with central fluid damping to control sub-chassis movement and resonance.

Precision Platter & Main Bearing

A substantial precision-machined aluminium platter provides the rotational platform for the record. The platter incorporates Iso-Damp treatment and a diamond-turned playing surface, while the precision main bearing uses a high-chrome tool-steel spindle and individually fitted sintered-bronze bearings.

SME Series Vᵢ Tonearm

The supplied SME Series Vᵢ tonearm is engineered for accurate cartridge alignment, controlled resonance and precise groove tracking. Its rigid construction and precision bearing arrangement provide stable cartridge positioning across the record surface.

Precision Belt Drive

The Model 20/12 Mk2 employs a belt-drive system powered by a custom bi-phase AC synchronous motor. The motor is controlled electronically to maintain accurate platter speed and stable rotation.

Speed Control Unit

The dedicated Speed Control Unit manages the motor's operating frequency, phase and amplitude. Independent settings are provided for 33⅓ and 45 RPM, with fine adjustment available for precise pitch control.

Separate Power Unit

The mains transformer is housed in a separate external Power Unit. This keeps the transformer physically away from the turntable and sensitive analogue signal wiring.

Connectivity

The tonearm signal path uses premium Crystal Cable internal wiring, with the turntable designed to integrate with an external phono stage and amplifier.

Dimensions & Weight

Included Configuration

• SME Model 20/12 Mk2 Turntable
• SME Series Vᵢ Tonearm
• 6.5 kg Precision-Machined Aluminium Platter
• Reflex-Principle Screw-Down Record Clamp
• Crystal Cable Internal Tonearm Wiring
• Dedicated Speed Control Unit
• Separate External Power Unit
• Four Adjustable Mechanically De-Coupled Feet
